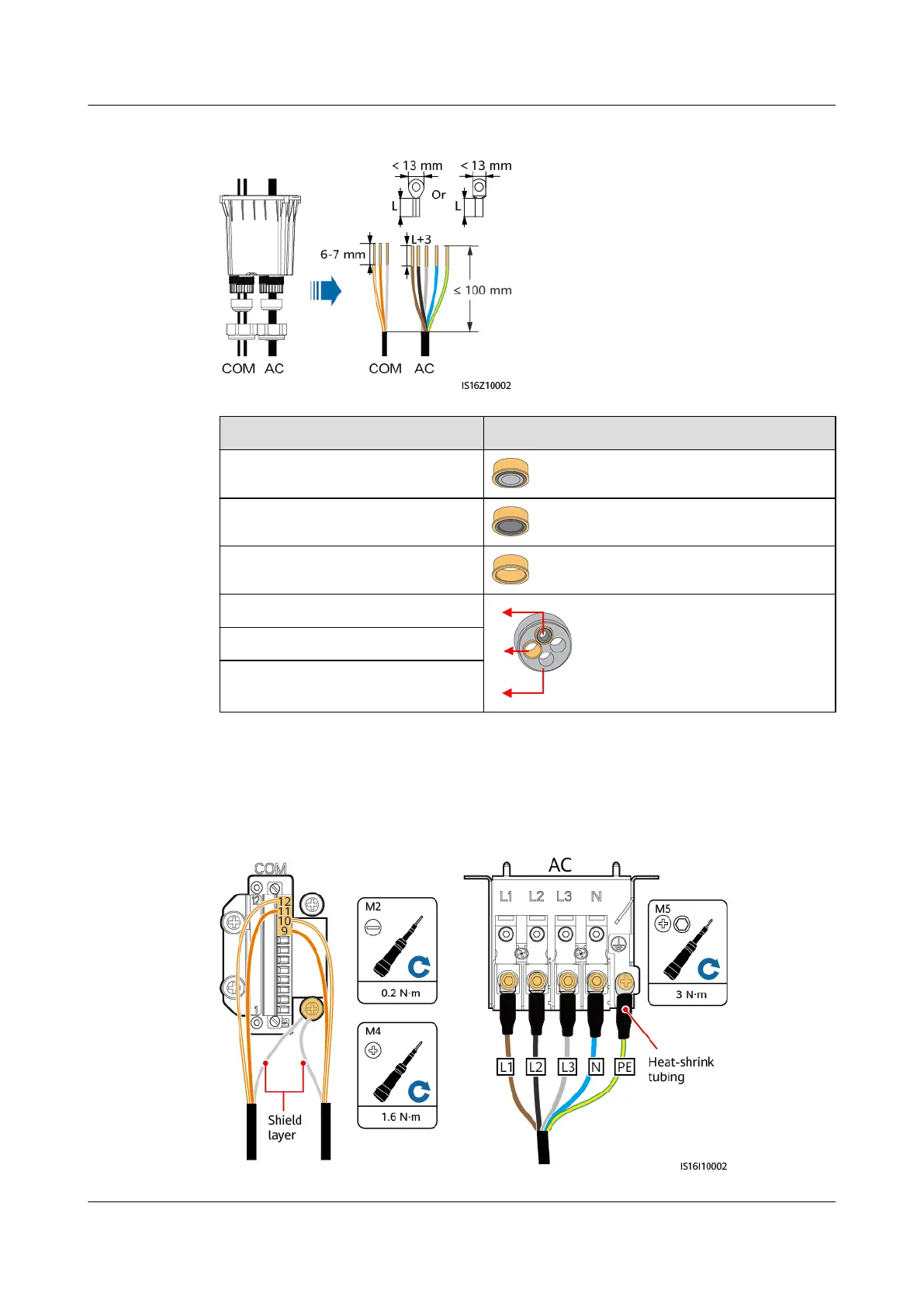

Figure 5-9 Routing cables

Inner Diameter Rubber Plug

15 mm

22 mm

26 mm

6 mm

8.6 mm

11 mm

Step 2 Install AC output power cables and signal cables. (The following uses the RS485

signal cables as an example. For details about other signal cables, see the

communications port pin denitions.)

Figure 5-10 Installing AC output power cables and signal cables

SUN2000-(12KTL-25KTL)-M5 Series

User Manual 5 Electrical Connections
