2.2 Appearance

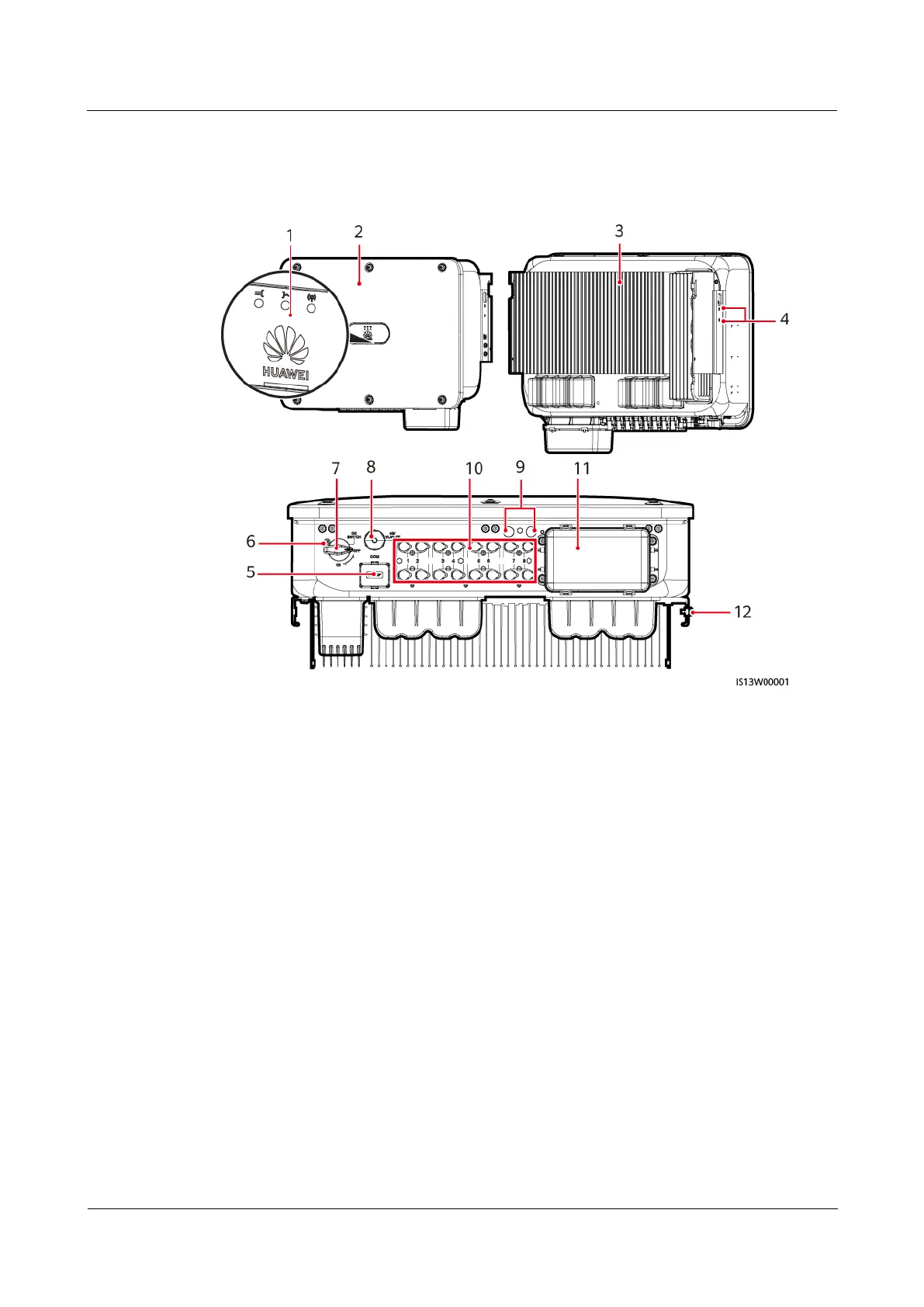

Figure 2-4 Appearance
(1) LED indicator
(2) Front panel
(3) Heat sink
(4) Screws for fixing the awning
(5) Communications port (COM)
(6) Hole for the DC switch locking screw
(7) DC switch (DC SWITCH)
(8) Smart Dongle port (4G/WLAN-FE)
(9) Ventilation valve
(10) DC input terminals (PV1–PV8)
(11) AC output port
(12) Ground point
