Ensure that the PE cable is securely connected. Otherwise, electric shocks may occur.

Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks
may occur.

The PE point at the AC output port is used only as a PE equipotential point, and cannot substitute for
the PE point on the enclosure.

It is recommended that silica gel or paint be used around the ground terminal after the PE cable is
connected.
Procedure
Step 1 Connect the PE cable.

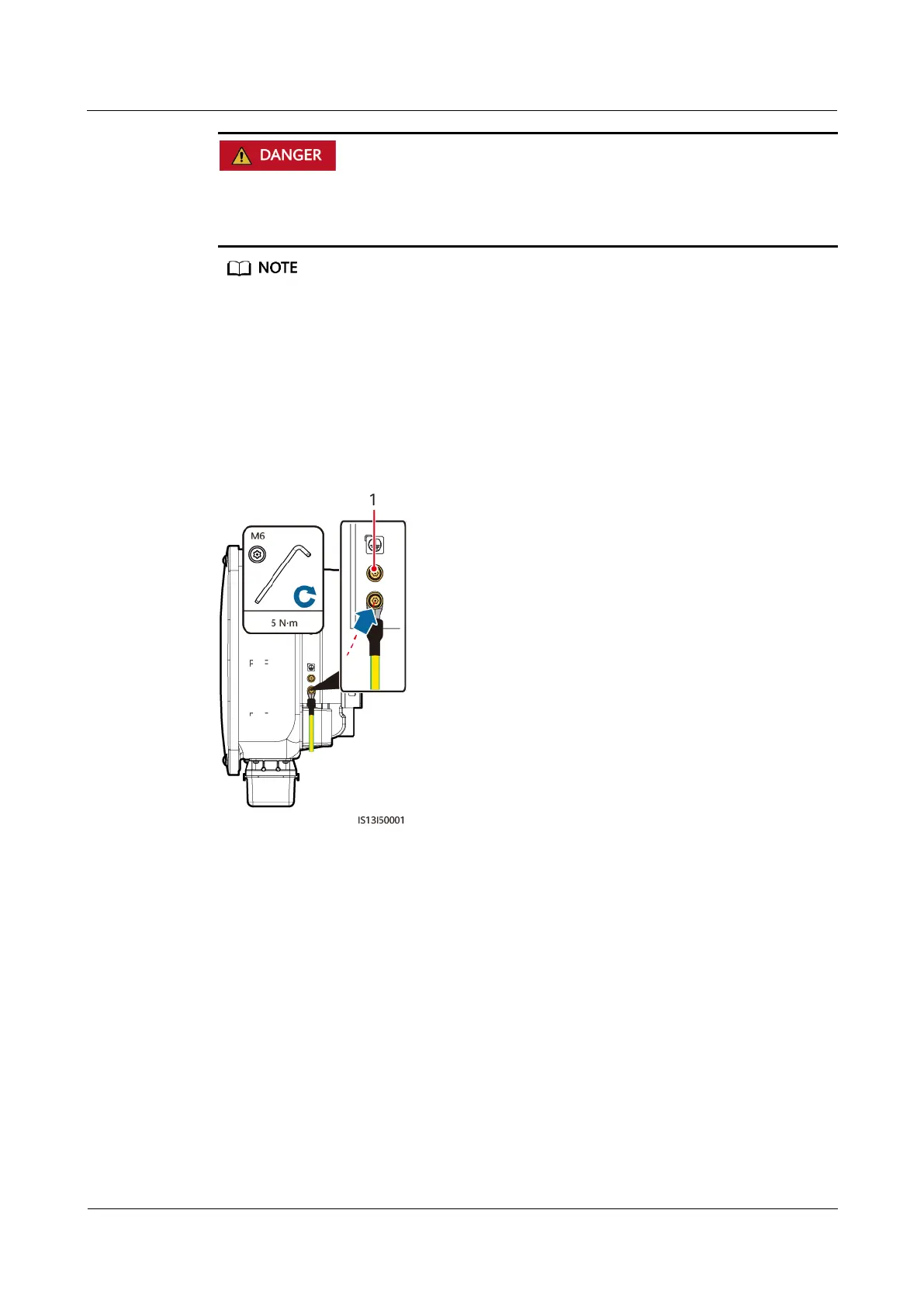

Figure 6-1 Connecting the PE Cable
(1) Standby protection ground point
----End
6.2.2 Installing the AC Output Power Cable
Precautions
An AC switch must be installed on the AC side of the SUN2000 to ensure that the SUN2000
can be safely disconnected from the power grid.
