Huawei SUN2000-196KTL-H3 Series User Manual

2
(1)
DC input terminals (controlled by DC SWITCH 1
)
(2) DC switch 1
[1]
(DC SWITCH 1)
(3) Reset
button 1 (RESET 1)
(4) DC input terminals (controlled by DC
SWITCH 2)
(5)
DC switch 2
[1]
(DC SWITCH 2)
(6) Reset button 2
(RESET 2)
(7) DC input terminals (controlled by DC SWITCH 3)
(8) DC switch 3
[1]
(DC SWITCH 3)
(9) Reset button 3
(RESET 3)
(10)
Ventilation valve
(11)
USB port (USB)
(
12) Communications port (COM)
(
13) Hole for the AC output power cable
(
14) Hole for the tracking system power
cable
Note [1]: If the DC switch rotating handle is at the position , the DC switch is not
completely closed and may not be automatically switched off.

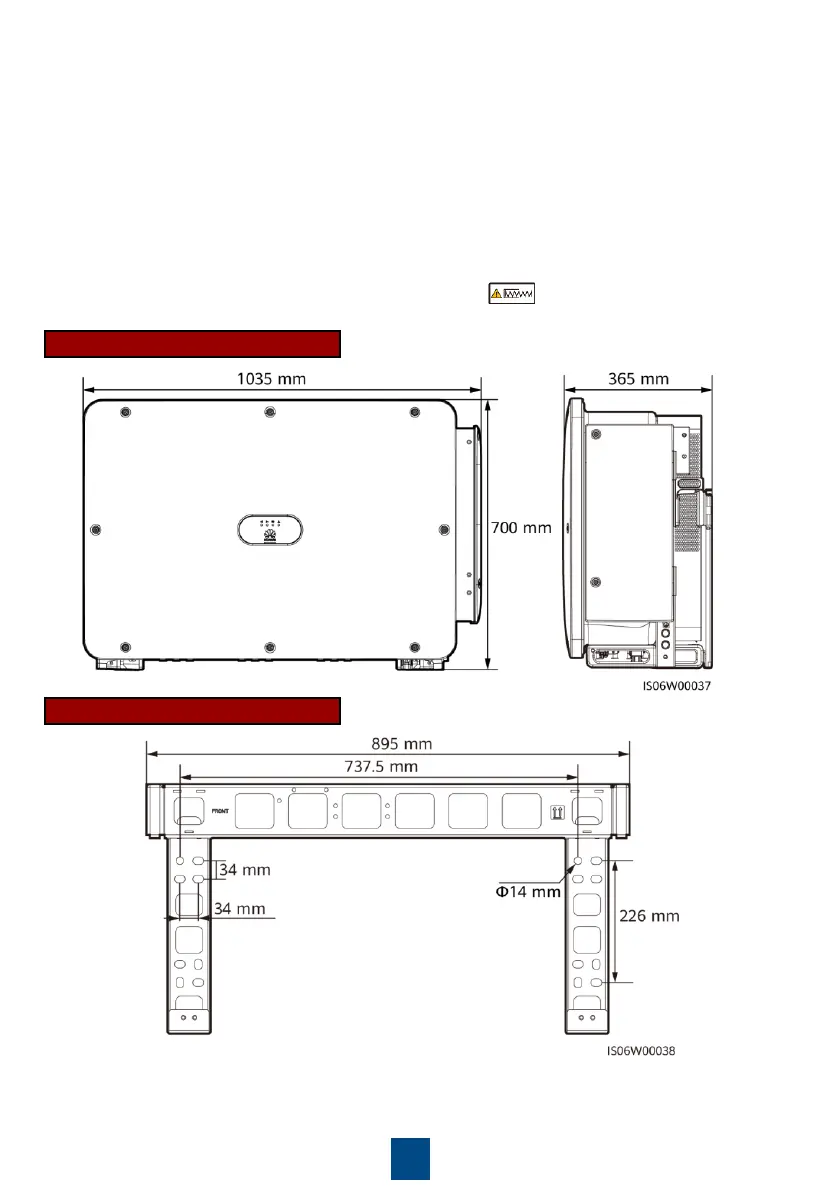

SUN2000 Dimensions
Mounting Bracket Dimensions

Huawei SUN2000-196KTL-H3 Series Specifications

General

Brand	Huawei
Model	SUN2000-196KTL-H3 Series
Category	Inverter
Language	English
