Tag Meaning Value
3 Topology TL: transformerless
4 Product code H0/H2: product series with the
1500 V DC input voltage
The SUN2000-196KTL-H0 is applicable only to the Chinese mainland. For other countries or
regions, Huawei does not provide quality assurance.
Network Application
The inverter applies to grid-tied PV systems for commercial rooftop PV plants and
large PV plants. Typically, a grid-tied PV system consists of the PV string, inverter,
AC power distribution unit, and step-up transformer.

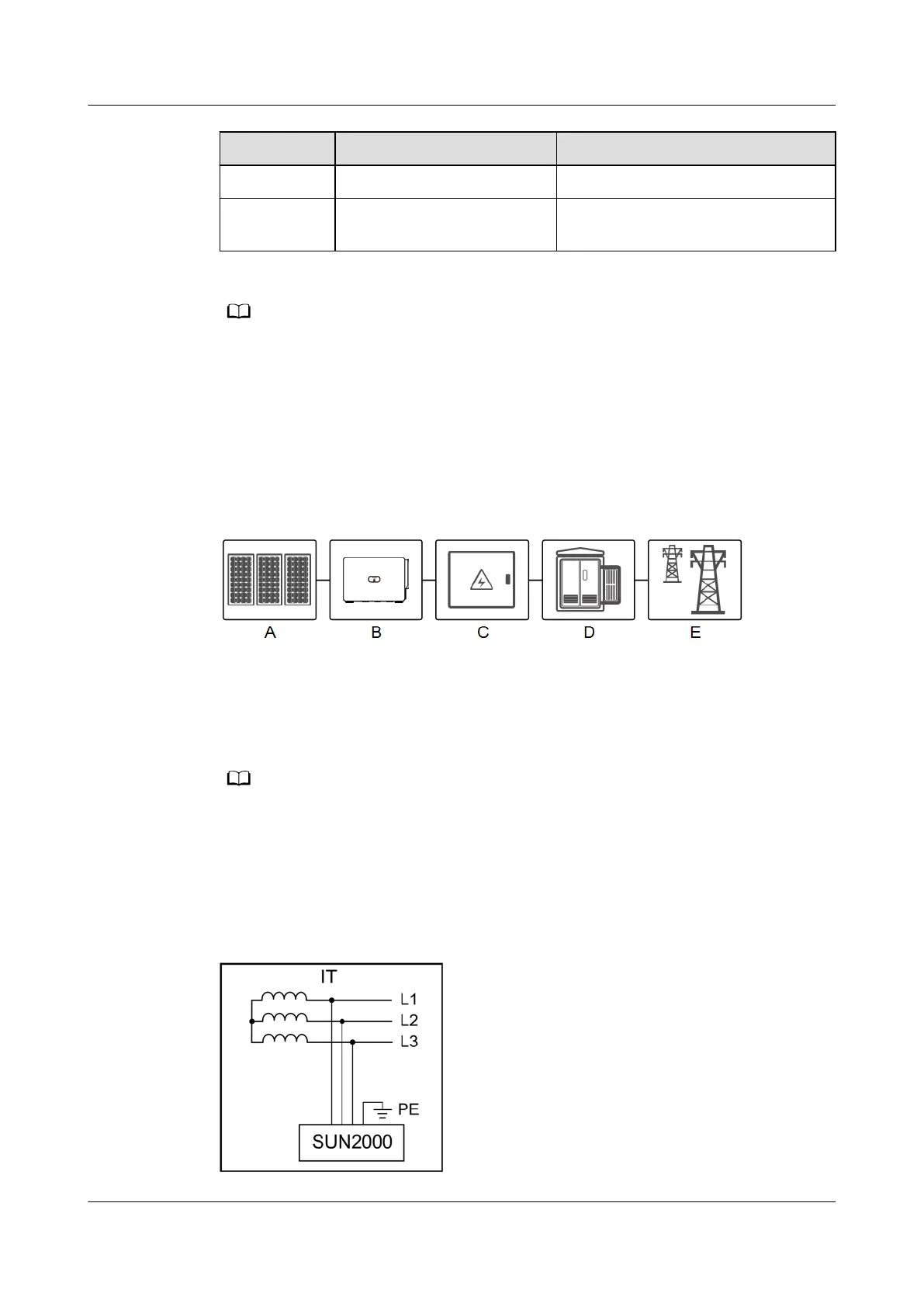

Figure 2-2 Network application
(A) PV string
(B) Inverter (C) AC distribution unit
(ACDU)
(D) Step-up transformer (E) Power grid
The SUN2000 is powered by a dedicated power transformer instead of connecting to low
voltage overhead power lines.
Supported Power Grid
The inverter supports the IT power grid.
Figure 2-3 Supported power grid
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 2 Overview
Issue 07 (2021-07-08) Copyright © Huawei Technologies Co., Ltd. 8
