Figure 4-9 Installing the mounting bracket
The M12x40 bolt assemblies are delivered with the SUN2000 (bound to the mounting
bracket). If the bolt assembly length does not meet the installation requirements, prepare
M12 bolt assemblies by yourself and use them together with the delivered M12 nuts.
----End
4.4.2 Wall-mounted Installation
Wall-mounted Installation

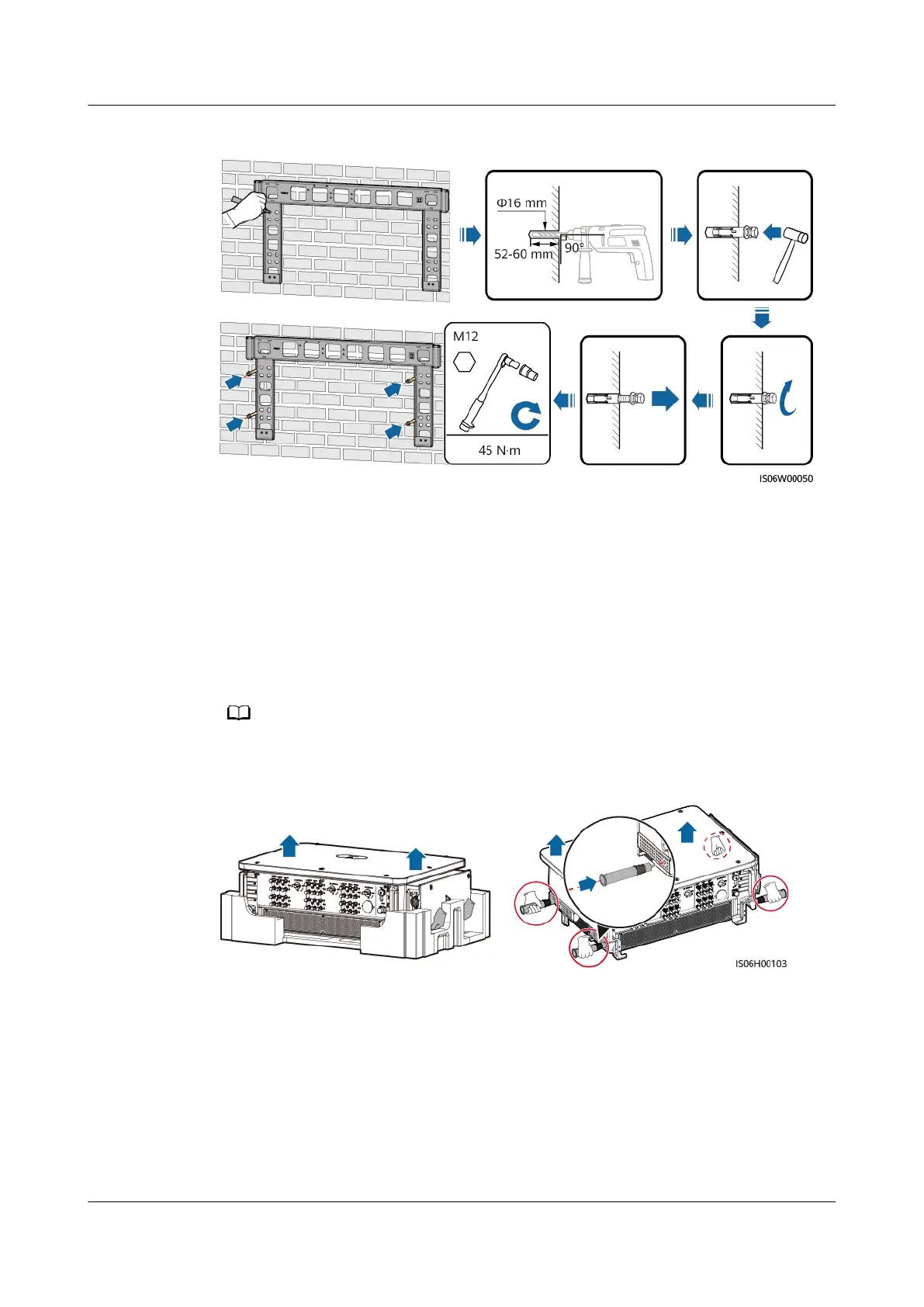

Step 1 Install the mounting bracket.
Avoid drilling holes in the water pipes and power cables buried in the wall.
● To prevent dust inhalation or contact with eyes, wear safety goggles and an
anti-dust respirator when drilling holes.
● Clean up any dust in and around the holes using a vacuum cleaner and
measure the distance between holes. If the holes are inaccurately positioned,
drill a new set of holes.
● Level the head of the expansion sleeve with the concrete wall after removing
the bolt, spring washer, and
at washer. Otherwise, the mounting bracket will
not be securely installed on the wall.
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 4 Installation
Issue 08 (2021-09-30) Copyright © Huawei Technologies Co., Ltd. 26
