Huawei SUN2000-215KTL-H0 - Installing the Mounting Bracket

NO TE
The clearance at the bottom must meet the requirements on the bending radius of the
AC output power cable.

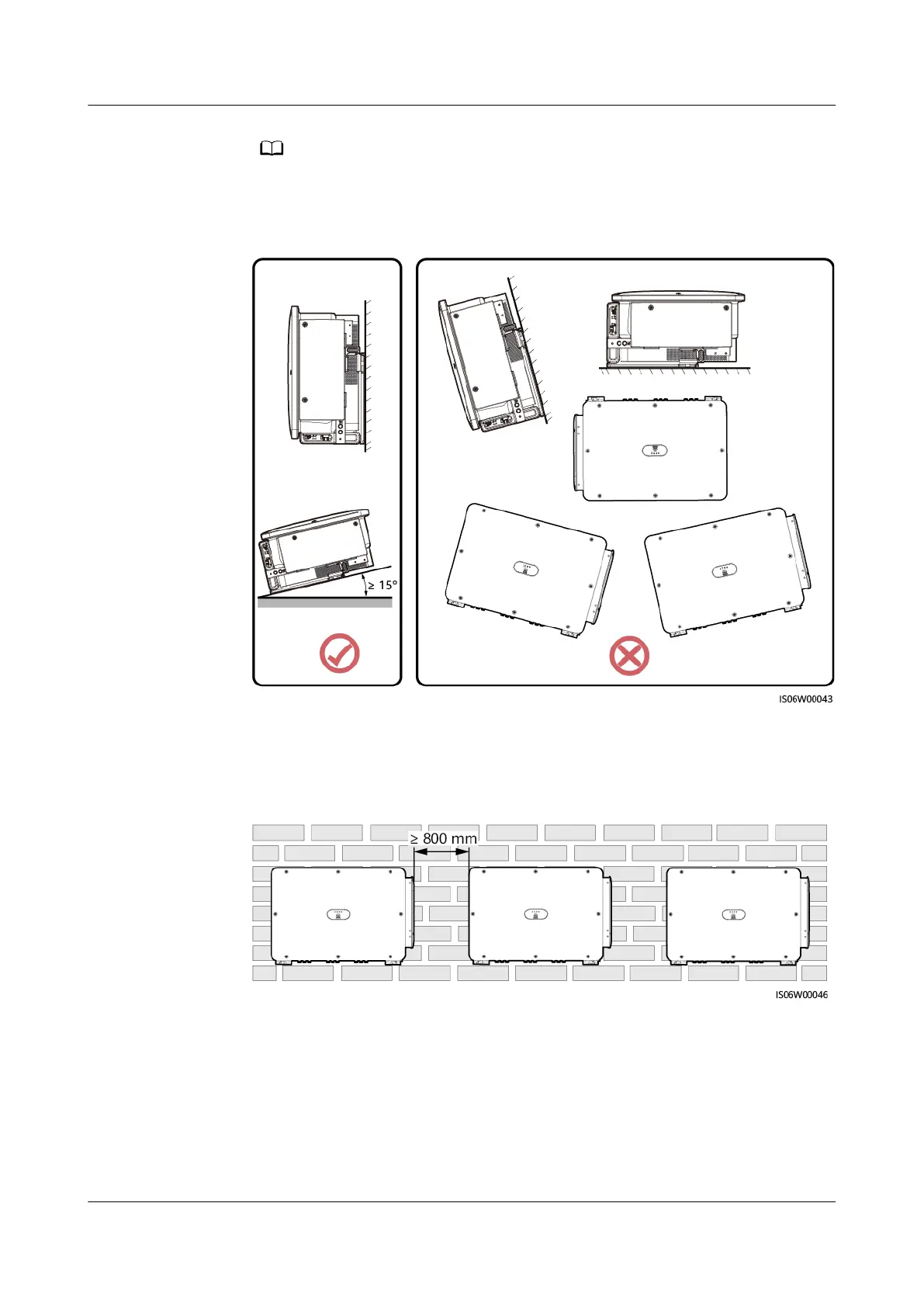

Figure 4-3 Installation angle
● When installing multiple inverters, install them in horizontal mode if sucient
space is available and install them in triangle mode if no sucient space is
available. Stacked installation is not recommended.
Figure 4-4 Horizontal installation mode (recommended)
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
