Huawei SUN2000-215KTL-H0 - Troubleshooting

Removing the bae of the air intake vent
Figure 8-2 Removing the bae
8.4 Replacing a Fan
CA UTION
● Before replacing a fan, power o the inverter.
● When replacing a fan, use insulation tools and wear personal protective
devices.
NO TE
If the fan tray gets stuck when being pulled or pushed, slightly lift it.
Step 1 Remove the screw on the fan tray and save it. Pull out the fan tray until the fan
bae plate aligns with the inverter chassis.

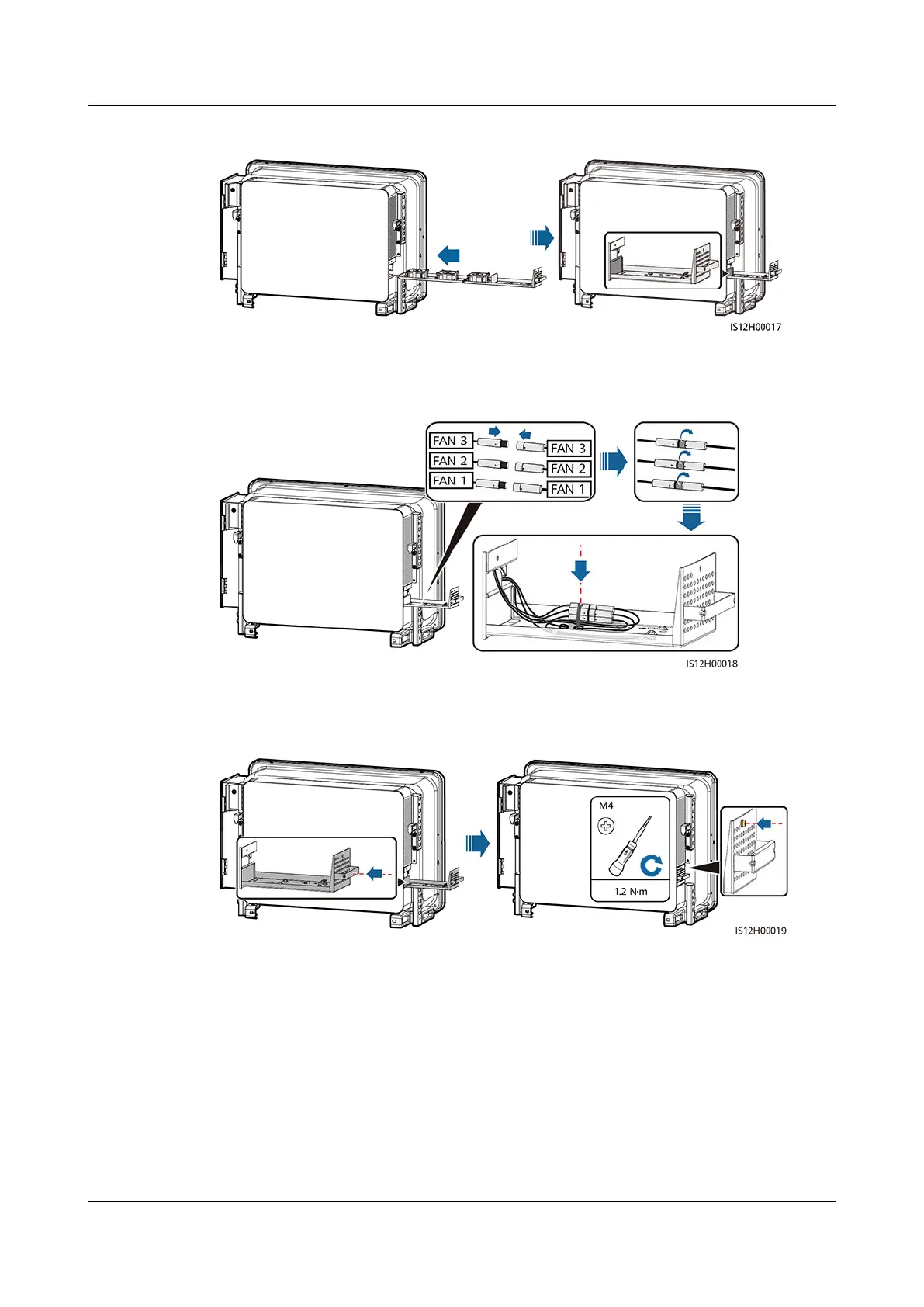

Figure 8-3 Pulling out fan tray (1)
Step 2 Remove the cable ties shared by the cables, unscrew the connectors, and
disconnect the cables.
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 8 Maintenance
Issue 08 (2021-09-30) Copyright © Huawei Technologies Co., Ltd. 89
