Step 6 Install the new fan (FAN 1 is used as an example).

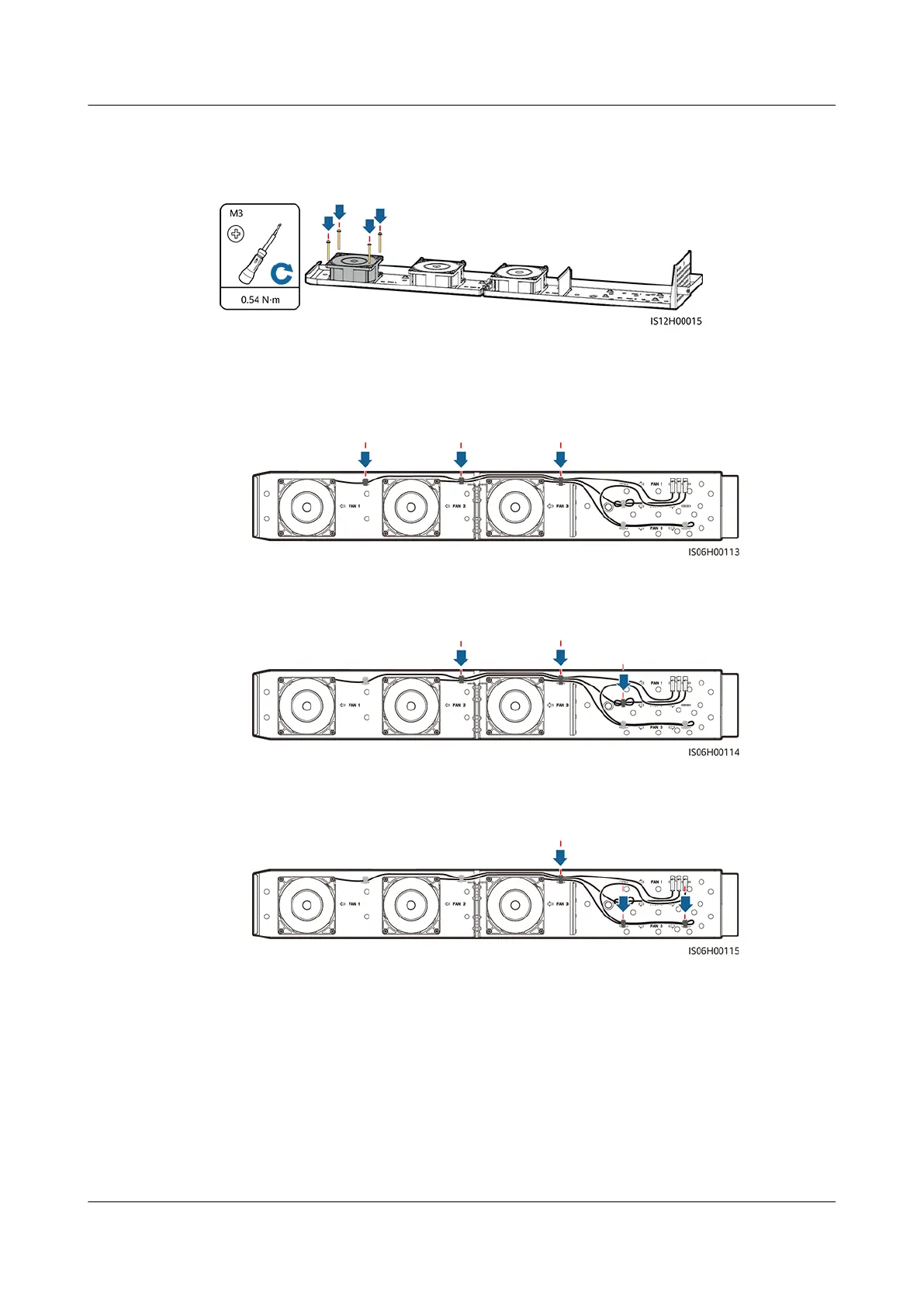

Figure 8-10 Installing a new fan
Step 7 Bind the fan cables.
● Binding positions for fan 1
Figure 8-11 Binding the FAN 1 cables
● Binding positions for fan 2
Figure 8-12 Binding the FAN 2 cables
● Binding positions for fan 3
Figure 8-13 Binding the FAN 3 cables
Step 8 Push the fan tray into the slot until the fan bae plate aligns with the inverter
chassis.
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 8 Maintenance
Issue 07 (2021-07-08) Copyright © Huawei Technologies Co., Ltd. 89
