Indicator Status Meaning
Blinking red at short
intervals
A minor alarm is generated.
Blinking red at long
intervals
A warning alarm is generated.
Steady green Local maintenance succeeds.
Blinking green at long
intervals
In local maintenance or shuts down over a
command.
Blinking green at short
intervals
Local maintenance fails.
O No alarm is generated, and no local maintenance
operations are performed.
● Local maintenance refers to operations performed after a universal serial bus (USB)
ash drive, Bluetooth module, WLAN module, or USB data cable is inserted into the USB
port of the inverter. For example, local maintenance includes conguration import and
export using a USB ash drive, and connecting to the SUN2000 app over a Bluetooth
module, WLAN module, or USB data cable.
● If the alarming and the local maintenance happen concurrently, the alarm/maintenance
indicator shows the local maintenance state
rst. After the USB ash drive, Bluetooth
module, WLAN module, or USB data cable is removed, the indicator shows the alarm
state.

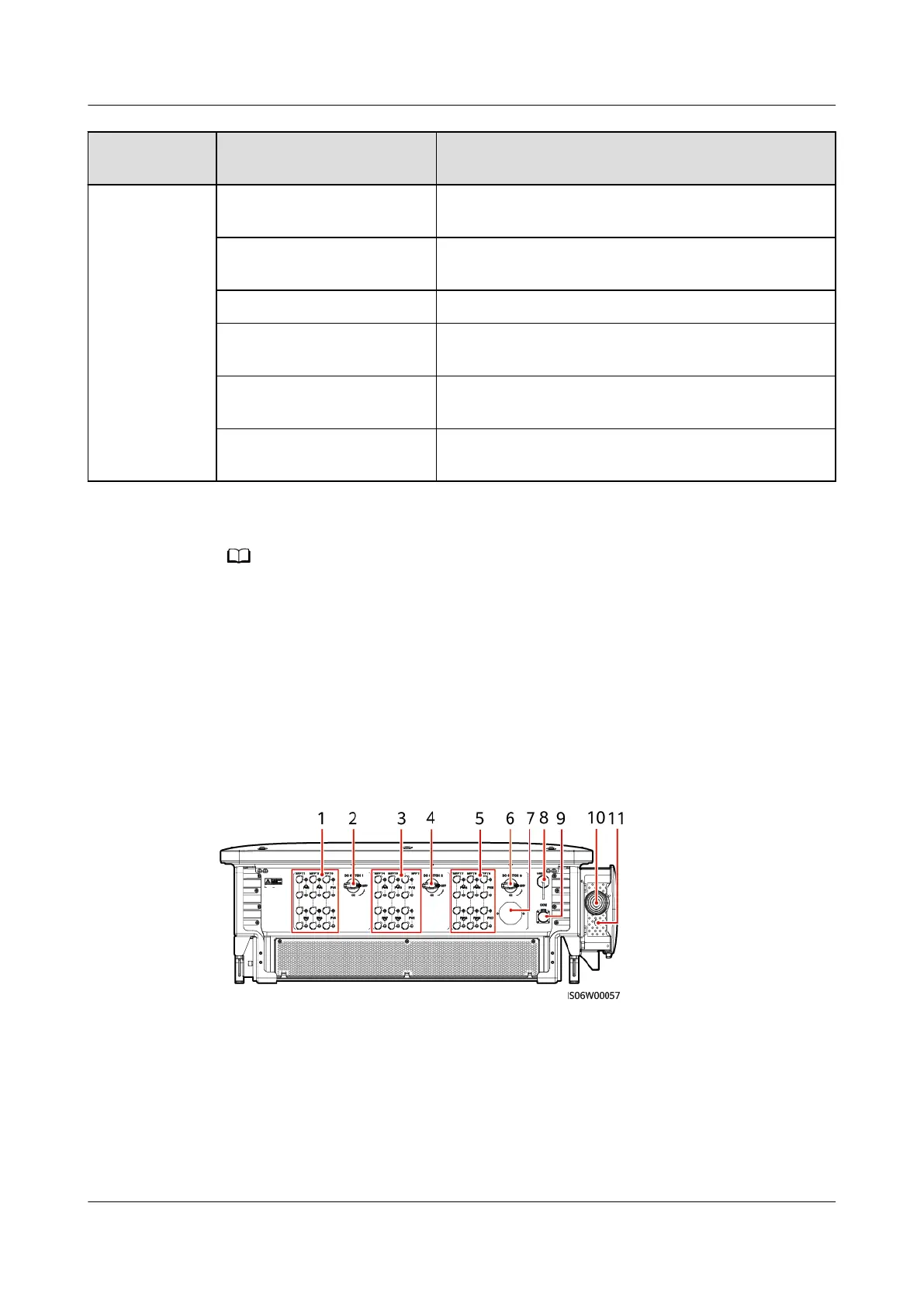

Bottom View
(1) DC input terminals (controlled by
DC SWITCH 1)
(2) DC switch 1 (DC SWITCH 1)
(3) DC input terminals (controlled by
DC SWITCH 2)
(4) DC switch 2 (DC SWITCH 2)
(5) DC input terminals (controlled by
DC SWITCH 3)
(6) DC switch 3 (DC SWITCH 3)
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 2 Overview
Issue 07 (2021-07-08) Copyright © Huawei Technologies Co., Ltd. 11
