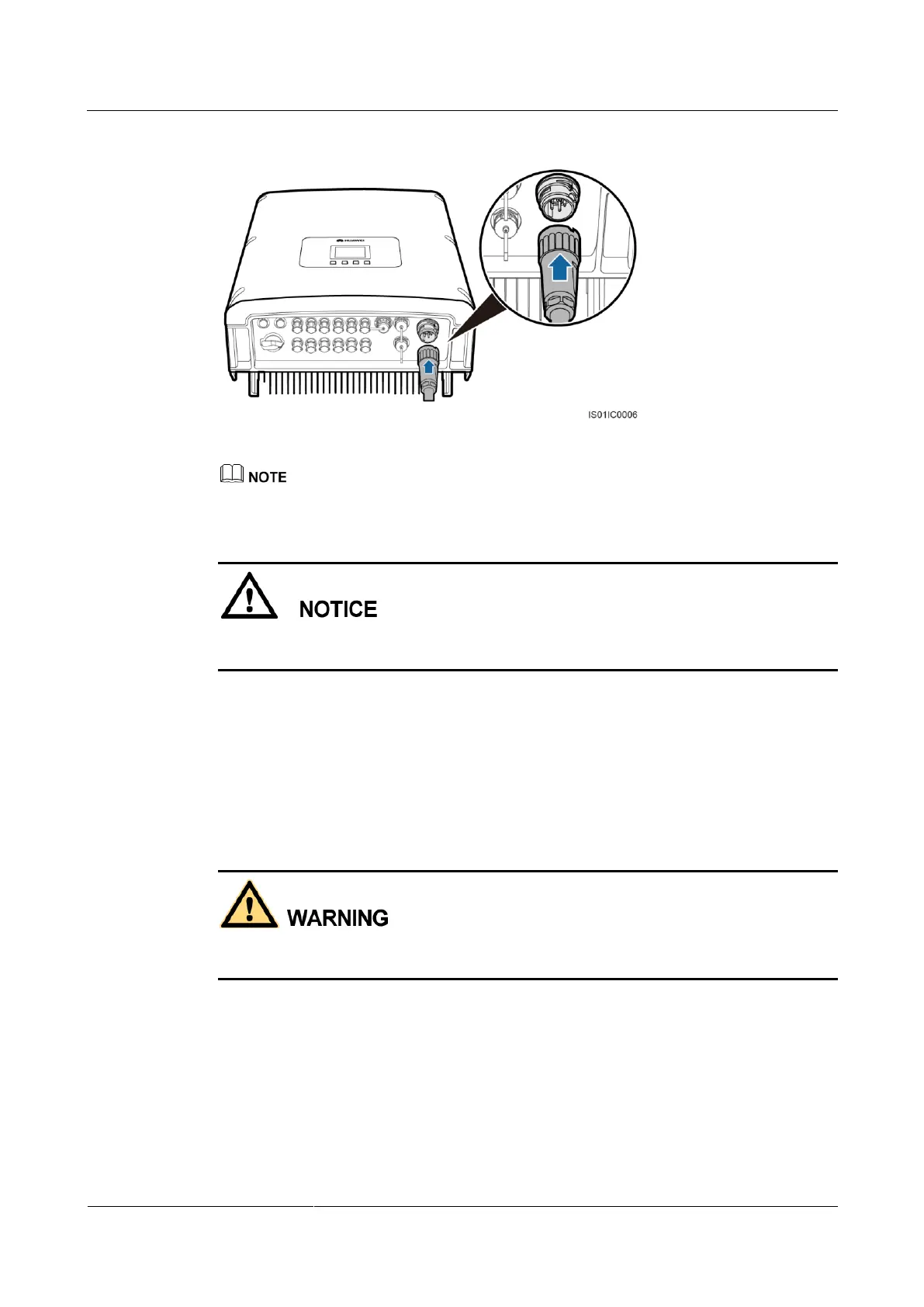

Figure 5-14 Connecting an AC output connector
The AC output connector is securely connected to the AC output wiring terminal after the bayonet
coupling snaps into place.
Reserve a margin of more than 0.5 meter for the cable at the AC output power cable connector
to reduce the cable terminal disconnection due to external force.
----End
Follow-up Procedure
To remove the AC output connector from the SUN2000, press down the locking plate on the
AC output wiring terminal using a flat-head screwdriver as shown in Figure 5-15. Rotate the
AC output connector counterclockwise.
Before removing the AC output connector, switch off the circuit breaker between the
SUN2000 and the power grid.
