Huawei SUN2000-5KTL-L1 Installation Manual

Electric Installation
First, we must make sure that our Huawei SUN2000-5KTL-L1 inverter has been correctly installed and
configured. In order to be able to take home consumption measurements we will need to connect one of
the compatible meters provided by Huawei to our inverter. For this manual we will use the DDSU666-H
meter.

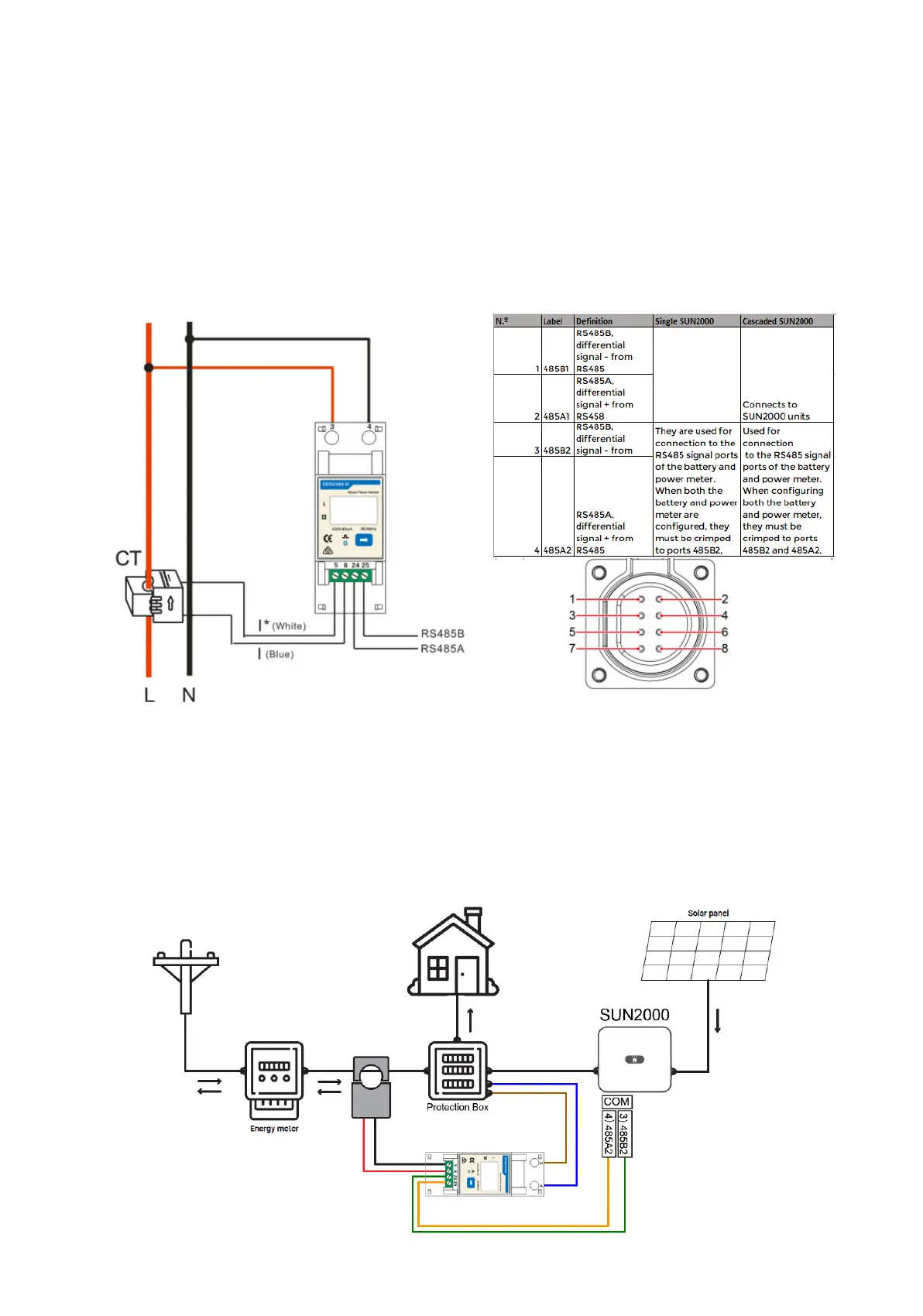

Power Meter Installation (DDSU666-H)
The meter is responsible for calculating the household consumption and sending it to the inverter via
RS485. For this communication to be established, the following connections must be made:
To power the meter, we must connect the phase and neutral of the line we want to measure to pins 3 and
4, respectively. After that, we must establish RS485 communication by connecting pin 24 (A) and 25 (B) of
the meter to pin 3 and 4 of the communications connector of the Huawei inverter respectively. The clamp
should be connected according to the following scheme:

Huawei SUN2000-5KTL-L1 Specifications

General

Model	SUN2000-5KTL-L1
Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Operating Temperature Range	-25°C to +60°C
Topology	Transformerless
Max. apparent AC power	5500 VA
Max. input voltage	600 V
Number of MPPT trackers	2
Max. short-circuit current per MPPT	15 A
Protection degree	IP65
Max. Input Power	7500 W
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Nominal AC voltage	230 V
AC voltage range	180 V - 280 V
Rated Output Voltage	230 V
