9.11 Camera Failure

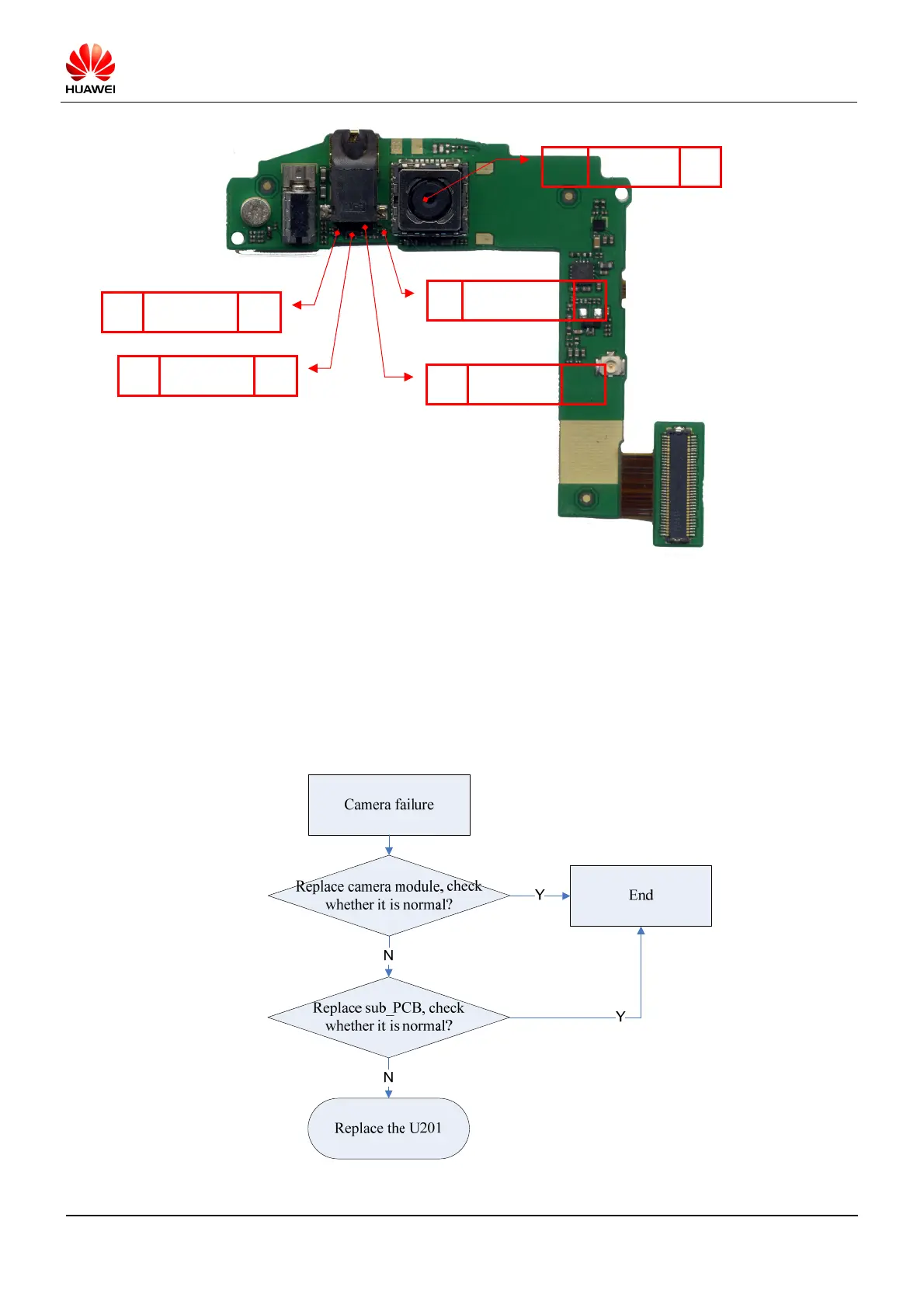

Reference Figure 9-7
Figure9-7
J801
U801
VPH_PWE-test
C814
3.7V
Z801 AudioVaristor /
D801 ESD Protected /
U801
TVOUT-Analog
Switch
/
Camera Camera modue /
