Procedure
Step 1 Install power cables.

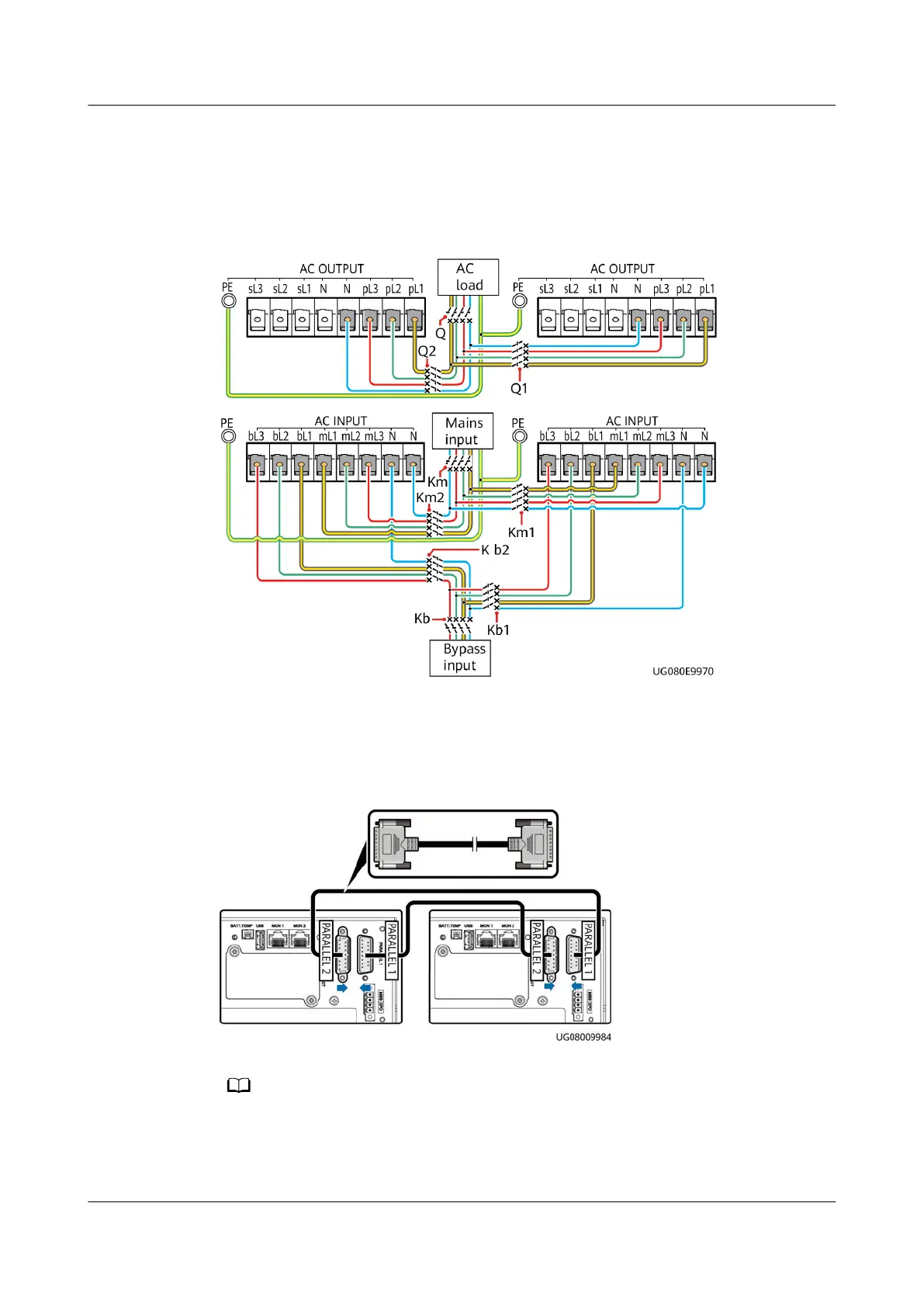

Figure 5-8 Parallel system wiring diagram of 15 kVA/20 kVA UPSs (three-phase
input three-phase output, two power sources, without a PDU)
Step 2 Install parallel communications cables.
Figure 5-9 Parallel communications cables
For details about how to install cables for the parallel system, see the
UPS2000-G-(15 kVA–
20 kVA) Quick Guide
.
----End
