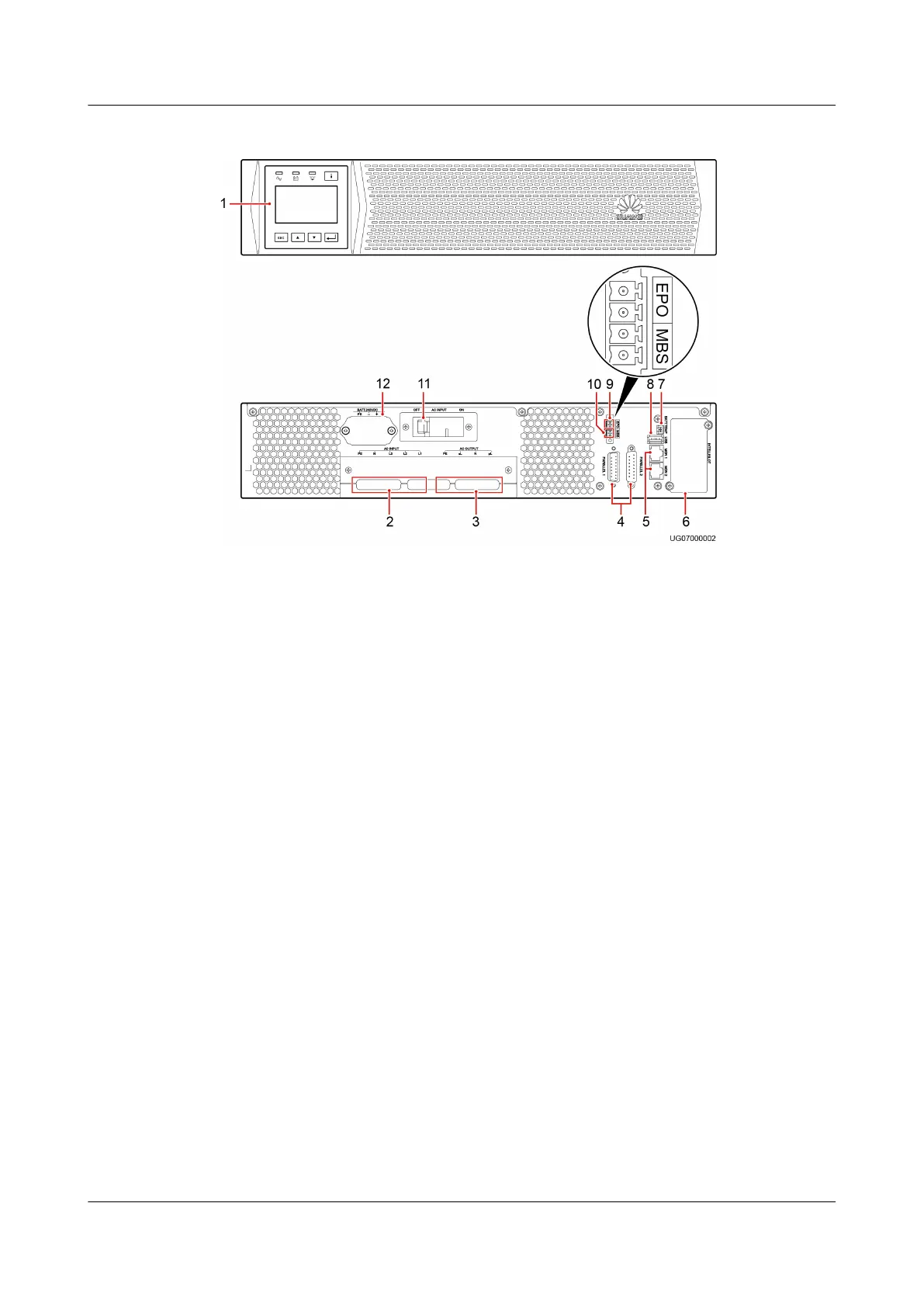

Figure 2-4 Front and rear views of the UPS2000-G-10 kVA
(1) Control panel (2) AC input ports (3) AC output ports
(pL and sL)
(4) Parallel ports
(5) CAN
communications ports
(MON1 and MON2)
(6) Optional card slot (7) Battery
temperature sensor
port
(8) USB port
a
(security
protection mechanism
supported)
(9) EPO port (10) Maintenance
bypass port (MBS)
(11) Input circuit
breaker
(12) Battery port
UPS2000-G- (6 kVA-20 kVA)
User Manual 2 Quick Introduction
