UPS Mounting Ear Dimensions

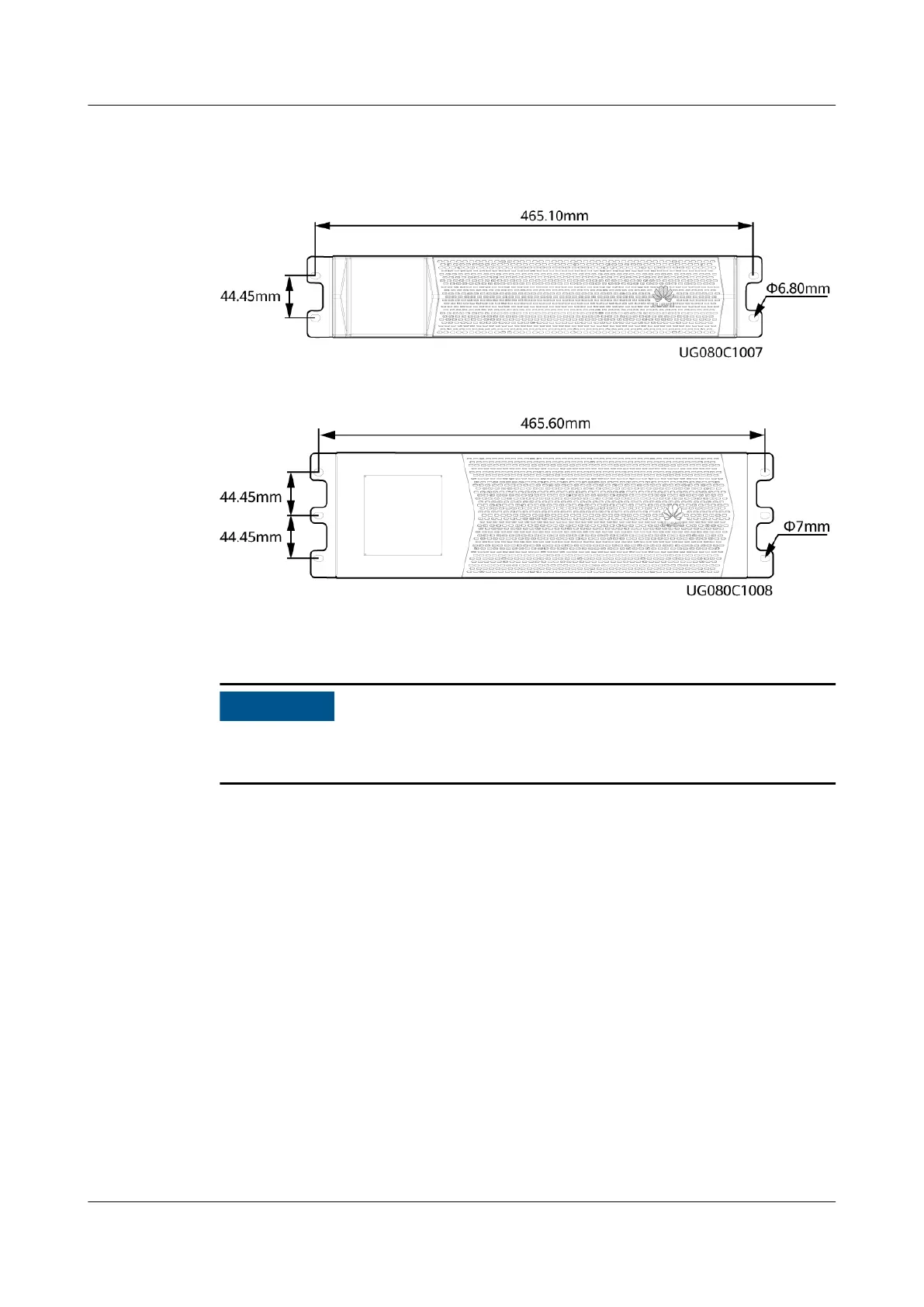

Figure 3-3 Dimensions of the mounting ears for the 6 kVA/10 kVA UPS
Figure 3-4 Dimensions of mounting ears for the 15 kVA/20 kVA UPS
Clearances
The distance between UPS air vents and the wall or obstacle is greater than or
equal to 500 mm.
Reserve a clearance of at least 500 mm respectively from the front and rear panels
of the UPS to the wall or adjacent equipment to facilitate ventilation and heat
dissipation, as shown in Figure 3-5.
UPS2000-G- (6 kVA-20 kVA)
User Manual 3 Installation
Issue 18 (2021-07-16) Copyright © Huawei Technologies Co., Ltd. 27
