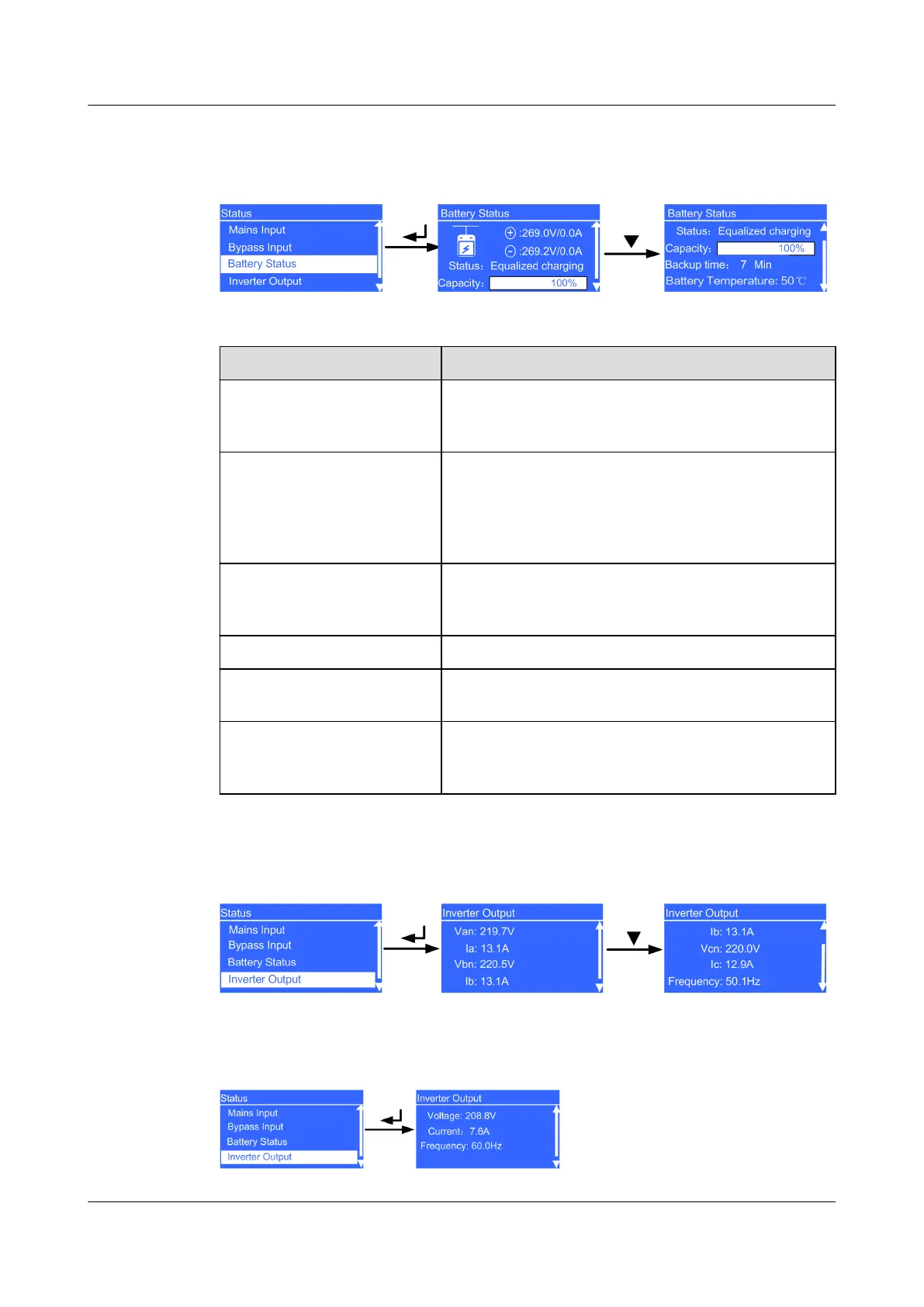

Battery Status Screen
Figure 4-8 Battery Status screen
Table 4-7 Battery Status
Item Description
Battery voltage Battery string voltage (positive and negative
battery string voltages in the case of the
UPS2000-G-15 kVA/20 kVA)
Battery current Battery string current (positive and negative
battery string currents in the case of the UPS2000-
G-15 kVA/20 kVA). + is displayed during battery
charge, and – is displayed during battery
discharge.
Status The battery status is N/A (battery not connected
or reversely connected), Equalized charging,
Float charging, Hibernating, or Discharging.
Capacity Remaining battery capacity
Backup time Estimated battery discharge time when batteries
are being charged or discharged.
Battery Temperature If the NTC is not connected, N/A is displayed. If
the NTC is connected, the battery temperature is
displayed.
Inverter Output Screen
Figure 4-9 Inverter Output screen
Figure 4-10 Inverter Output screen (two live wires)
UPS2000-G- (6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 18 (2021-07-16) Copyright © Huawei Technologies Co., Ltd. 50
