Local-UPS Load Screen

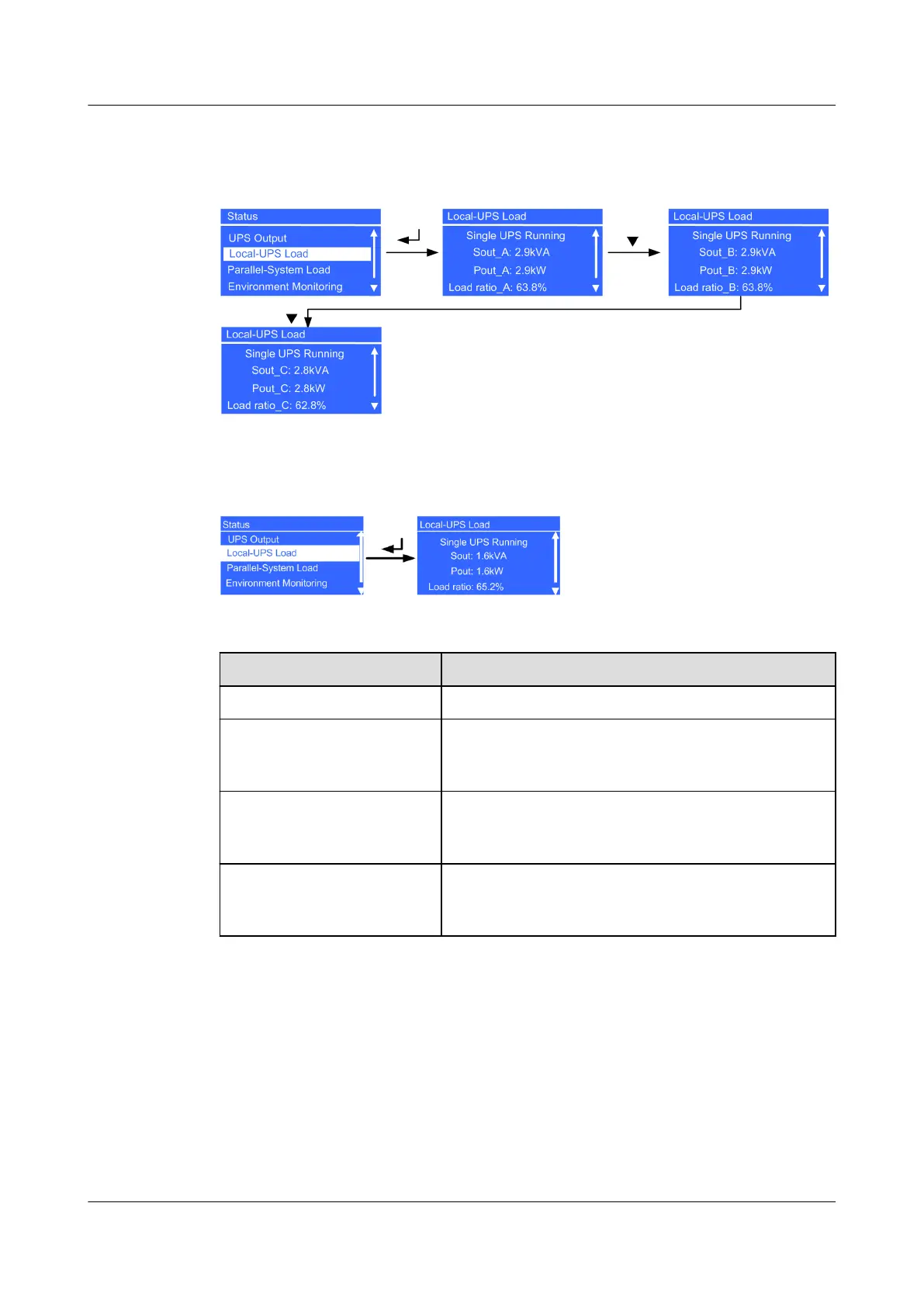

Figure 4-13 Local-UPS Load screen
Figure 4-14 Local-UPS Load screen (two live wires)
Table 4-10 Local-UPS Load
Item
Description
Single UPS Running A single UPS is running.
Sout_A/Sout_ B/Sout_C Phase A, B, and C apparent power displayed on
the Local-UPS Load screen (The parameter is
Sout in the case of single-phase input.)
Pout_A/Pout_ B/Pout_C Phase A, B, and C active power displayed on the
Local-UPS Load screen (The parameter is Pout in
the case of single-phase input.)
Load ratio_A/Load
ratio_B/Load ratio_C
Phase A, B, and C load ratio displayed on the
Local-UPS Load screen (the parameter is Load
ratio in the case of single-phase input.)
UPS2000-G- (6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 18 (2021-07-16) Copyright © Huawei Technologies Co., Ltd. 52
