Complete the quick settings based on the actual situation. If the quick settings are not
complete, the quick settings dialog box will be displayed in subsequent startup.
● Non-initial startup
When the initialization is complete, the standby screen is displayed. On the
standby screen, press to enter the main menu. Choose Main Menu >
Settings > System Parameters > Output to view output settings: if the
system uses three-phase input three-phase output, Output mode is set to
Three-phase; if the system uses three-phase input single-phase output or
single-phase input single-phase output, Output mode is set to Single-phase.
Voltage level and Frequency level are set based on the rated voltage and
frequency. Press ESC to return to the standby screen.

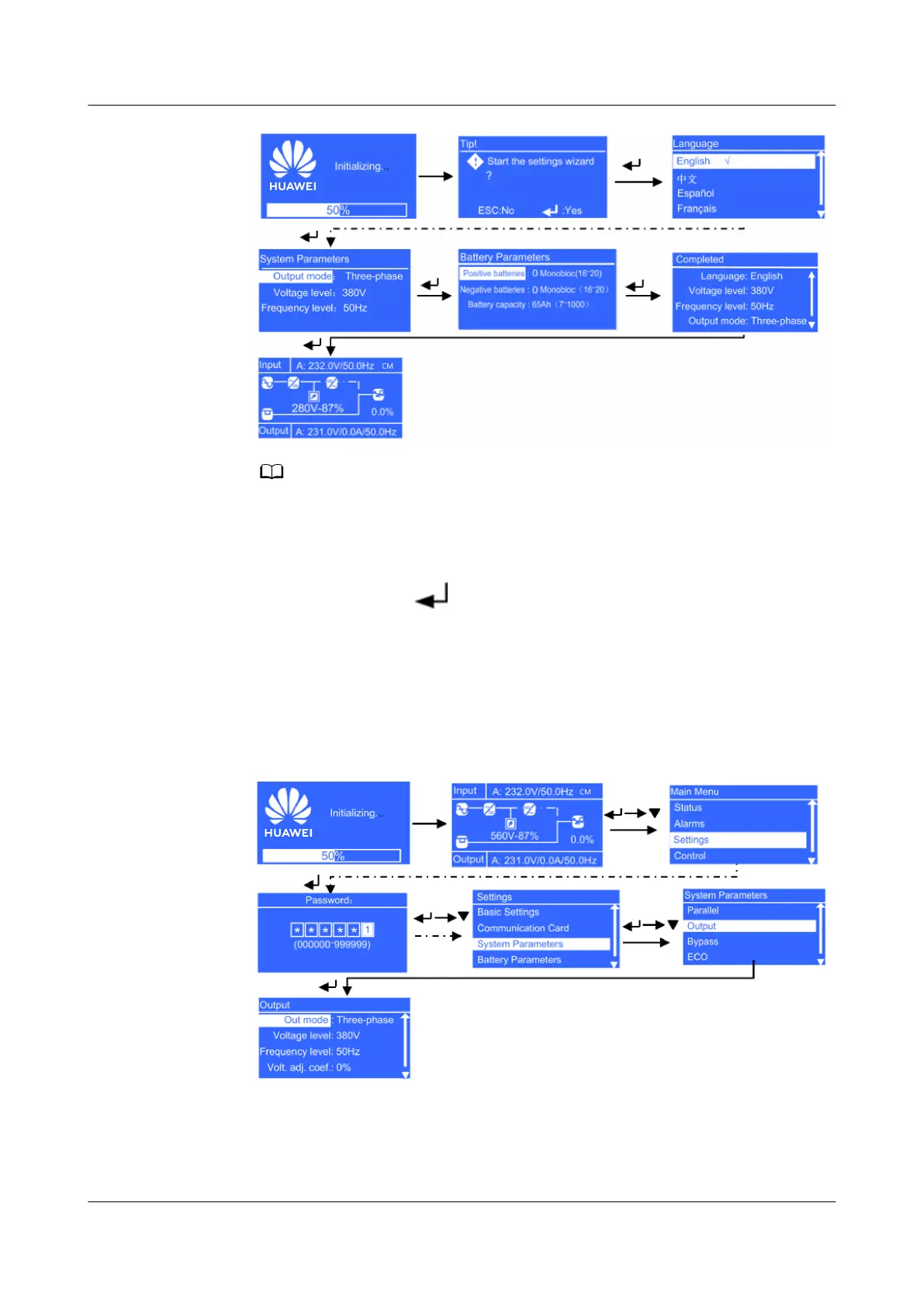

Figure 5-2 Non-initial startup
Step 5 Start the UPS in normal mode by using one of the following methods:
UPS2000-G- (6 kVA-20 kVA)
User Manual 5 Operations
Issue 18 (2021-07-16) Copyright © Huawei Technologies Co., Ltd. 90
