UPS2000-G-(1 kVA-3 kVA)
User Manual
3 Installing the UPS
Copyright © Huawei Technologies Co., Ltd.
26

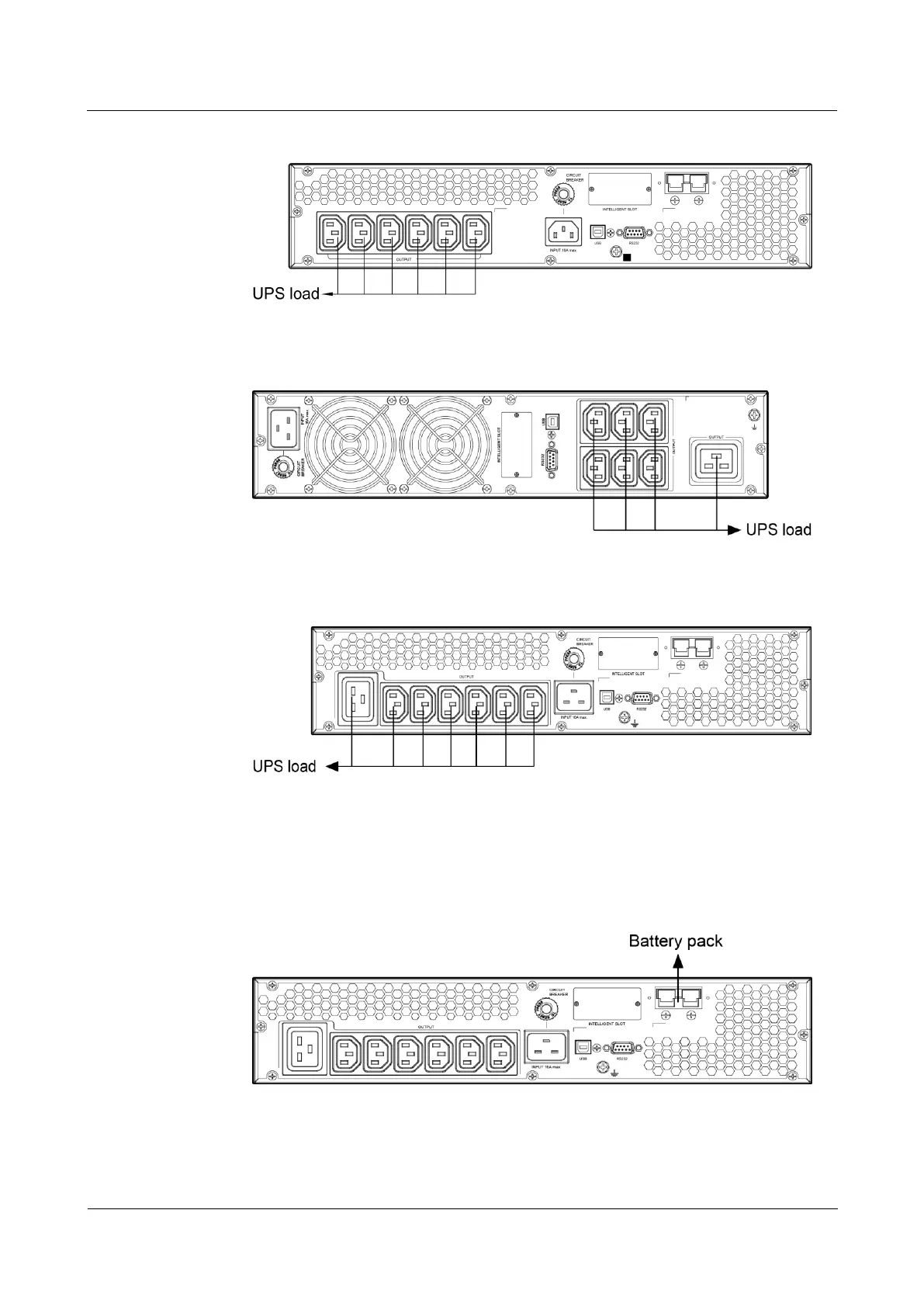

Figure 3-8 Connecting cables to the 2KRTL UPS output
Figure 3-9 Connecting cables to the 3KRTS UPS output
Figure 3-10 Connecting cables to the 3KRTL UPS output
2. Connecting battery power cables to a long backup time model. (The step is optional for
long backup time model, the standard model with built-in batteries cannot support
external batteries.)
Figure 3-11 Connecting cables to the 3 kVA UPS battery pack
