(10) BATT.COM1 port (11) COM3_IN port (12) Parallel ports
(13) Optional card slot (14) COM3_OUT port (15) COM2/CAN port
(16) Maintenance bypass port
(MBS)
(17) EPO ports
a: The label contains the SN, QR codes, and KEY (reserved). Scan the QR codes to download
the app, connect to the WiFi network, and view documents such as user manual and quick
guide. The information on the label is for reference only. The actual parameters may vary.
2.4.3 UPS Indicators

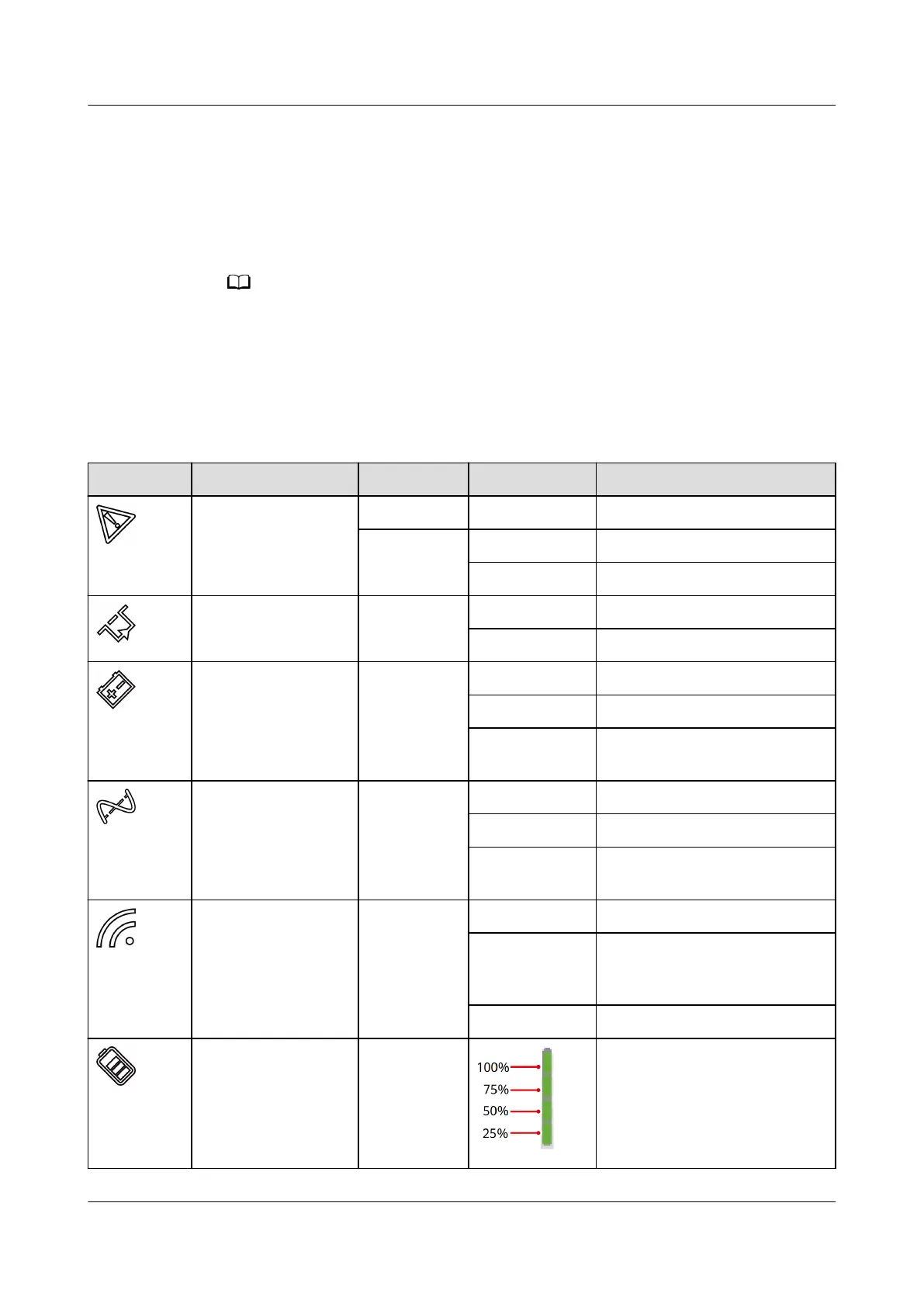

Table 2-1 Indicator description
Icon Name Color Status Description
Fault indicator Green Steady on The UPS is normal.
Red Blinking A minor alarm is generated.
Steady on A critical alarm is generated.
Bypass indicator Yellow Steady on Bypass mode
O Non-bypass mode
Battery indicator Yellow Steady on Battery mode
O Non-battery mode
Blinking Battery state of charge
(SOC): < 25%
Inverter indicator Green Steady on Inverter mode
O Non-inverter mode
Blinking The inverter is starting up or
shutting down.
WiFi indicator Green Steady on WiFi is enabled.
Blinking The mobile phone is
connected to the WiFi
network of the UPS.
O WiFi is disabled.
Battery SOC
indicator
Green When the battery SOC is 0%,
the four indicators are o.
0% < Battery SOC < 25%
25% indicator: blinking
Other indicators: o
UPS2000-H-(6 kVA-10 kVA)
User Manual 2 Product Overview
Issue 03 (2023-08-20) Copyright © Huawei Digital Power Technologies Co., Ltd. 25
