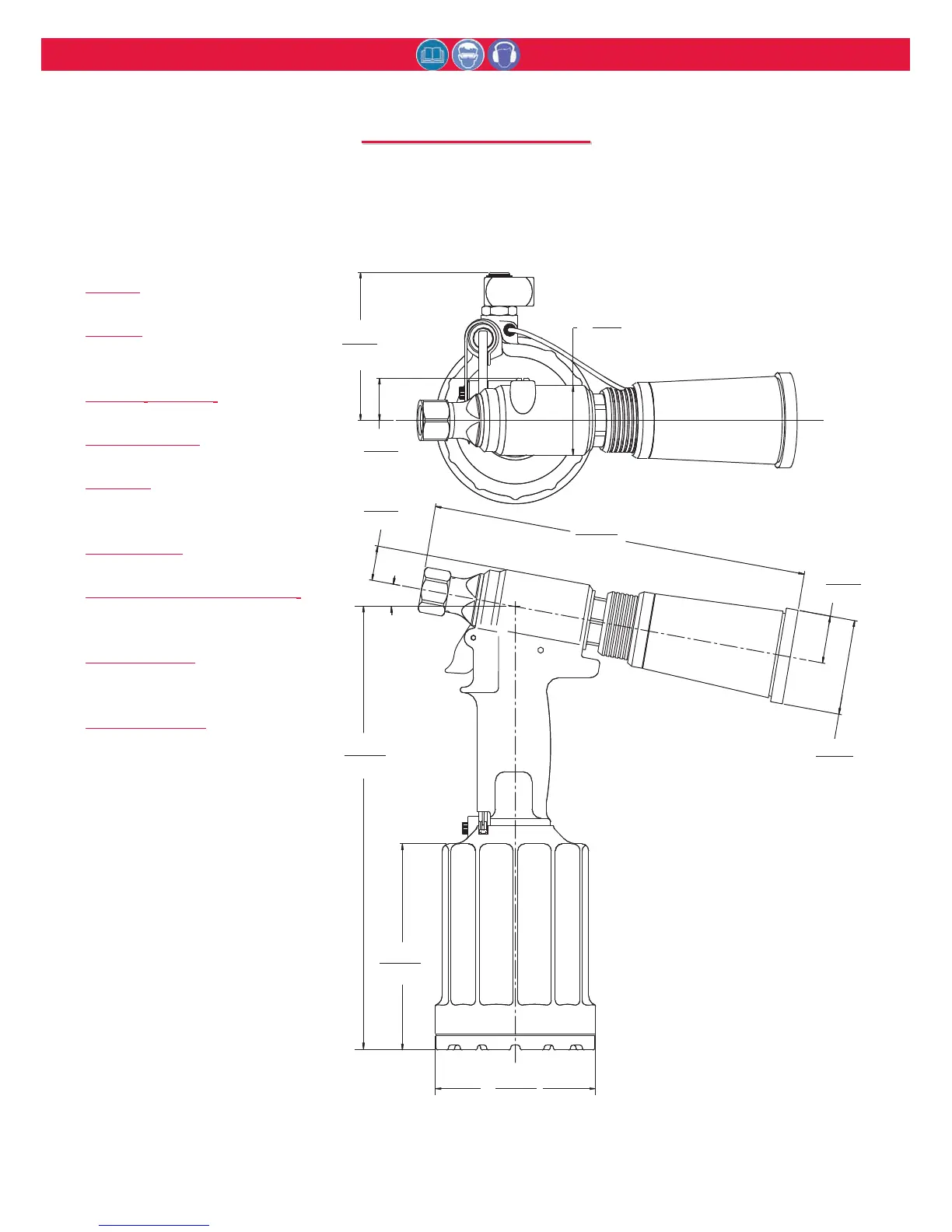

Huck 202 - Page 6

10.175
258
1.240
31.5
2.480
63
ø
1.10
28
3.445
87.5
4.105
104
ø
.79
20
11.575
294
5.385
137
10°
1.58
40
ø
6
202 Series Tooling (HK938) Alcoa Fastening Systems
STROKE: .75 in (1.90 cm)
WEIGHT:
202V & 202LV: 5.4 lbs (2.45 kg)
MAX AIR PRESSURE: 90 psi (6.2 BAR)
MAX FLOW RATE: 8.5 scfm (241 l/m)
CAPACITY:
3889 lbs (17.3 kN) @ 90 psi (6.2 BAR)
SPEED/CYCLES: 20 per minute
MAX OPERATING TEMPERATURE:
125° F (52° C)
POWER SOURCE:
90psi MAX shop air
HYDRAULIC FLUID:
ATF meeting DEXRON III, DEXRON IV,
MERCON, Allison C‐4 or equivalent
specifications.
Fire resistant hydraulic fluid may also
be used, and is required to comply
with OSHA regulation 1926.302
paragraph (d): "the fluid used in
hydraulic power tools shall be fire
resistant fluid approved under
schedule 30 of the US Bureau of
Mines, Department of Interior, and
shall retain its operating
characteristics at the most extreme
temperatures to which it will be
exposed."
S
S
PECIFICATIONS
PECIFICATIONS
Models
202V, & 202LV
