Huck 2024 - Page 11

11
2024 Series Tooling Alcoa Fastening Systems
6. Remove Spacer (22) and O-
Ring (68) from spring side of
end cap.
7. From bottle side of end cap,
remove Retaining Ring (66),
Wiper Housing (67), Wiper
Seal (23), Washer (71) and
O-Ring (69).
8. Remove the O-Rings (65)
from the inside of the
Adapter and Tube/Slide
Assembly (70) (Fig 15).
19
22
68
21
69
71
23
67
66

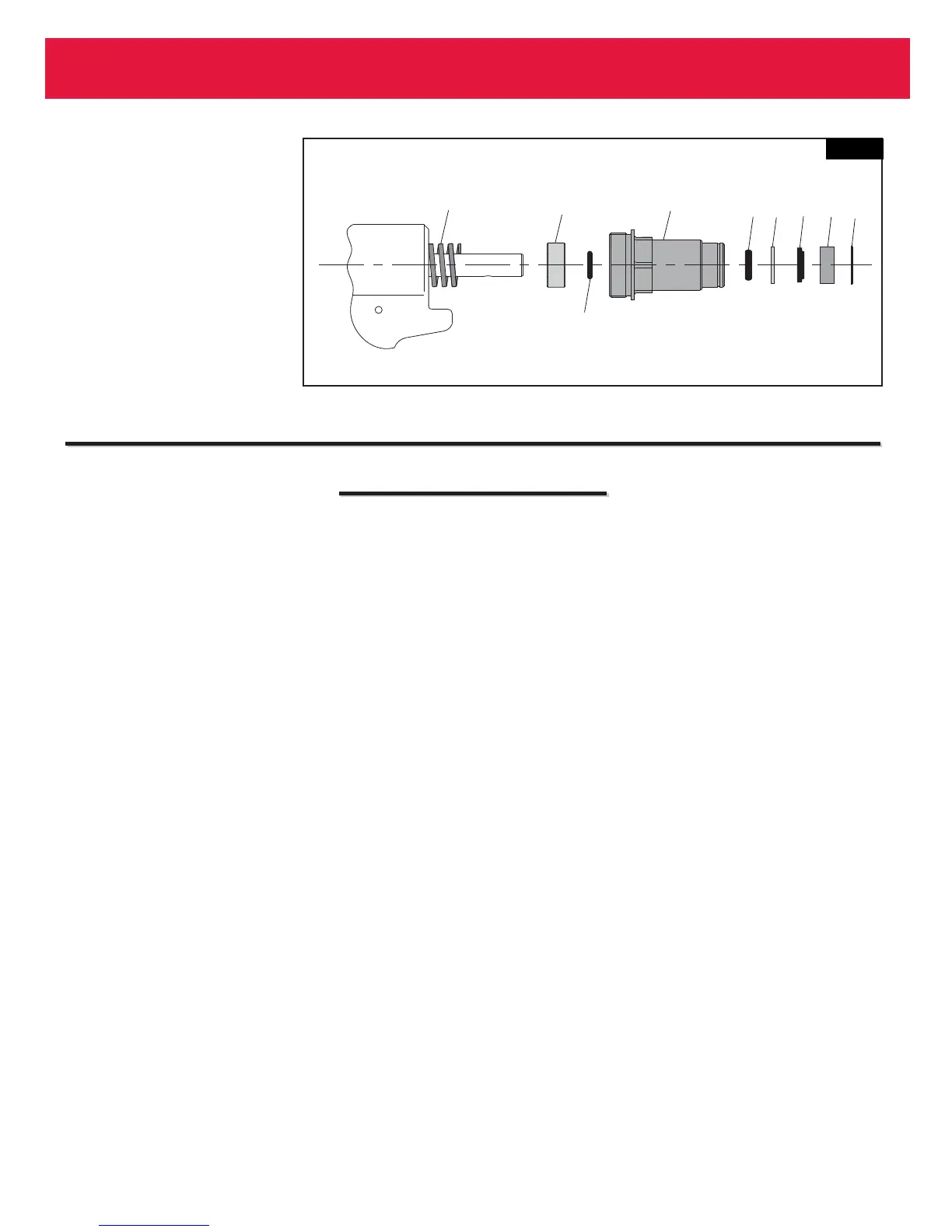

FIG. 6
____________________________________
____________________________________
S
S
ERVICE
ERVICE
N
N
OTES
OTES
