Huck 2024 - MEASURING TOOL STROKE - 2024;2024 V; Stroke Measurement for 2024 & 2024 V; MEASURING TOOL STROKE - 2024 L;2024 LV; Stroke Measurement for 2024 L & 2024 LV

Y
X
15
2024 Series Tooling Alcoa Fastening Systems
M
M
EASURING
EASURING
T
T
OOL
OOL
S
S
TROKE
TROKE
2024 & 2024V

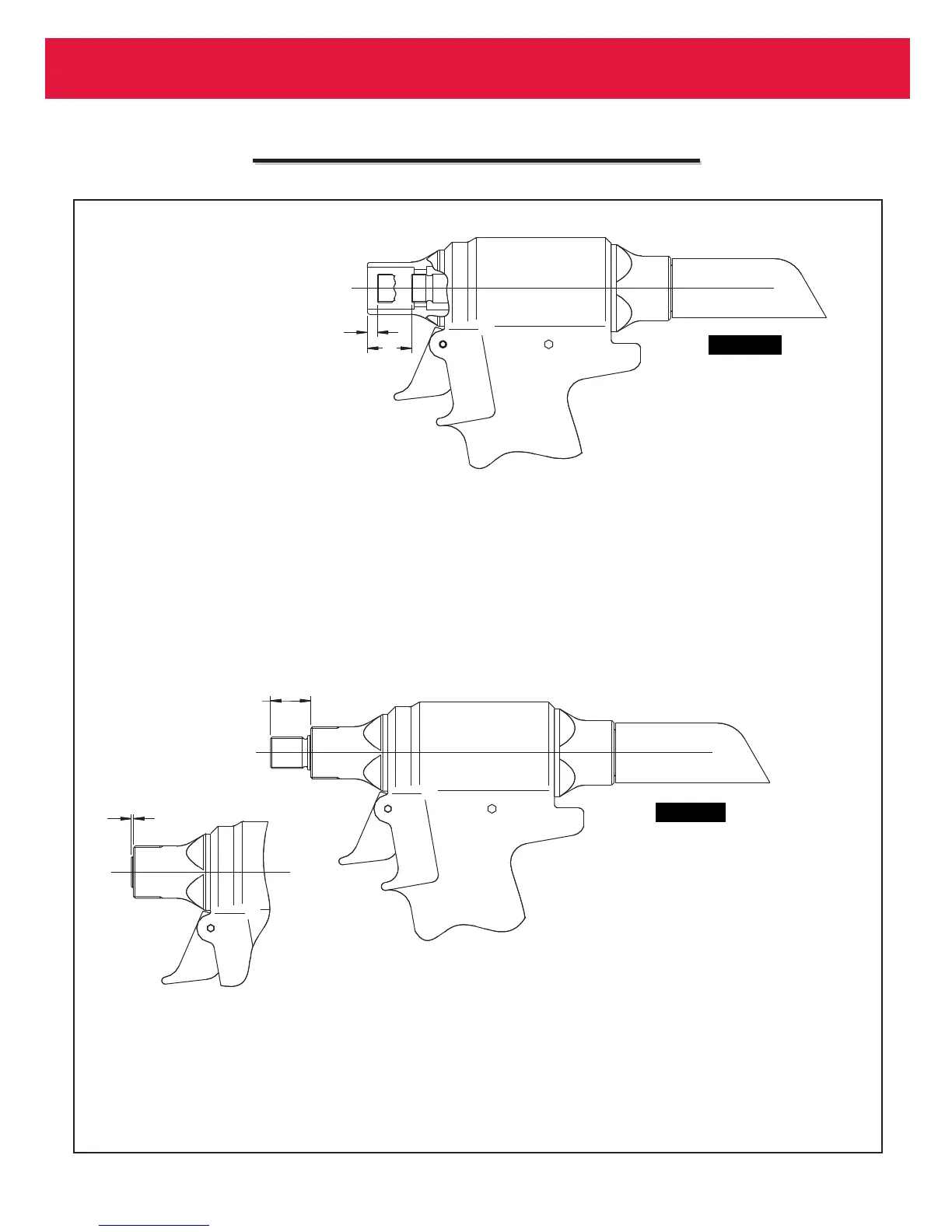

Step 1
Cycle Piston all the way forward and measure X.
Step 2
Cycle and hold piston back and measure Y.
Step 3
Stroke = Y-X
X
Y
2024L & 2024LV
Step 1
Cycle Piston all the way forward and measure X.
Step 2
Cycle and hold piston back and measure Y.
Step 3
Stroke = X-Y
FIG. 12
FIG. 13
