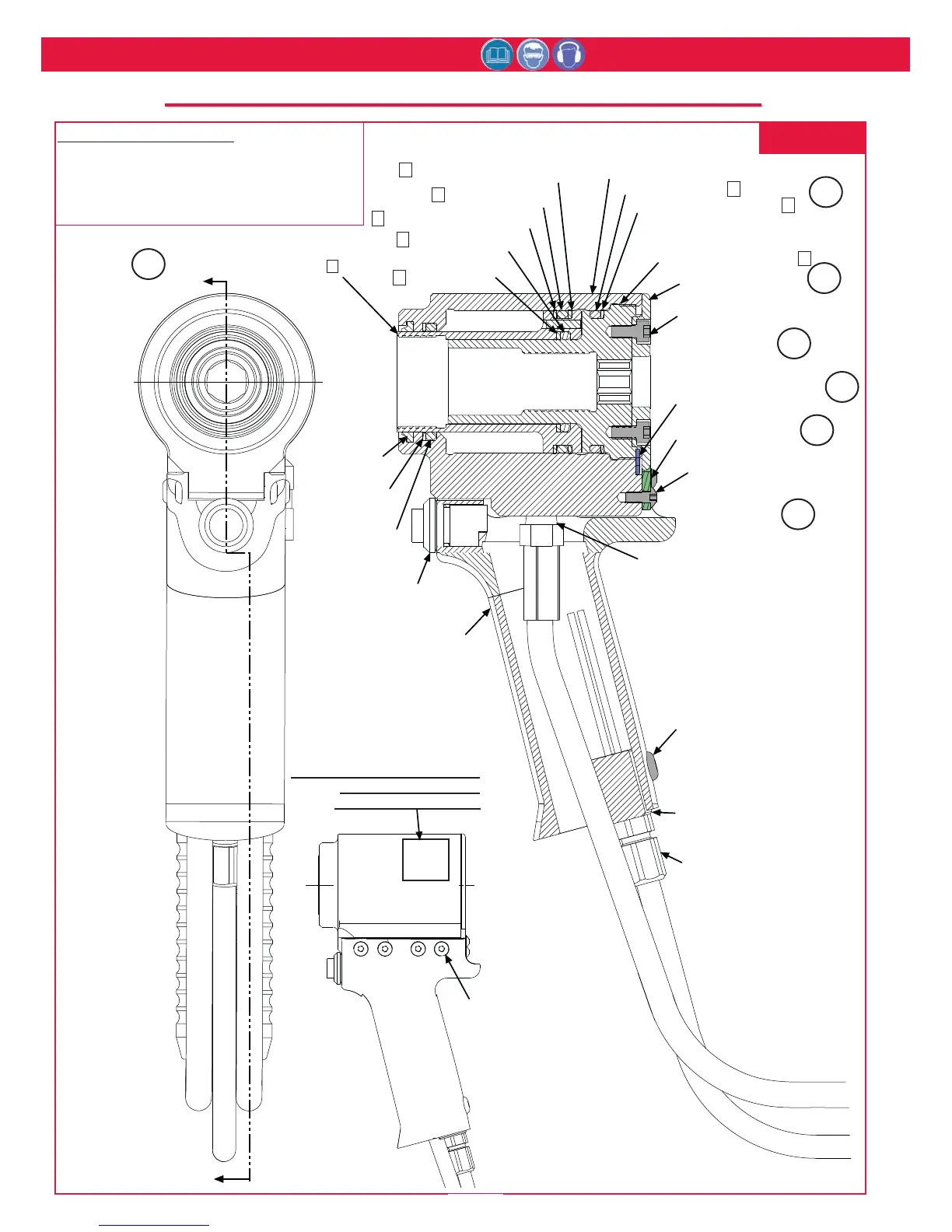

Huck BOBTAIL - Assembly Drawing - Head and Handle; Disassembly Order; Head and Handle Components Breakdown

130211 Cylinder Assy
501149
Back-up Ring
504628
O-Ring
506066
Wiper Seal
130196 Aft Cover
500100 Screws (4)
Apply Loctite 243,
HUCK p/n 508567
to threads per
manufacturers
instructions.
122764 Locking Disc
120361 Trigger
Switch Asy
130200 Machined
Handle
130210 Clamp Guide
505344 Strain Relief
502472 Screws (3)
Apply Loctite 243,
HUCK p/n 508567
to threads per
manufacturers
instructions.
Apply Threadmate,
HUCK p/n 508517
to these threaded joints
per manufacturers
instructions.
A
A
130197 Hydraulic
Plug Cover
502489 Screws (2)
Apply Loctite 243,
HUCK p/n 508567
to these threads
per manufacturers
instructions.
SECTION A-A
See next page for
Hose and Fitting
part numbers.
503848 O-Ring
1
130198 Piston & Seal Assy
contains Piston and
components marked 1
502483 Screws (8)
Apply Loctite 243,
HUCK p/n 508567
to these threads
per manufacturers
instructions.
590517 HUCK
Trademark &
590512-11 WARNING
& CE Stickers
NOTE: These stickers must
remain in place and
readable at all times.
501152 Back-up Ring
1
501152 Back-up Ring
1
503841 O-Ring
501145
Back-up Ring
1
1
2
130199 End Cap & Seal Assy
contains End Cap and
components marked
2
2
503848 O-Ring
501152 Back-up Ring
SFBTT15 BOBTAIL® Hydraulic Tool (HK1151) Alcoa Fastening Systems
12
A
A
SSEMBLY
SSEMBLY
D
D
RAWING
RAWING
- H
- H
EAD
EAD
AND
AND
H
H
ANDLE
ANDLE
B
D
A
C
F
E
G
FIGURE 5
ORDER OF DISASSEMBLY:
Remove 7 Screws “A” & “B”
Remove Aft and Plug Covers “C” & “D”
Remove Locking Disc “E”
Unscrew/remove End Cap then Piston “F” & “G”
