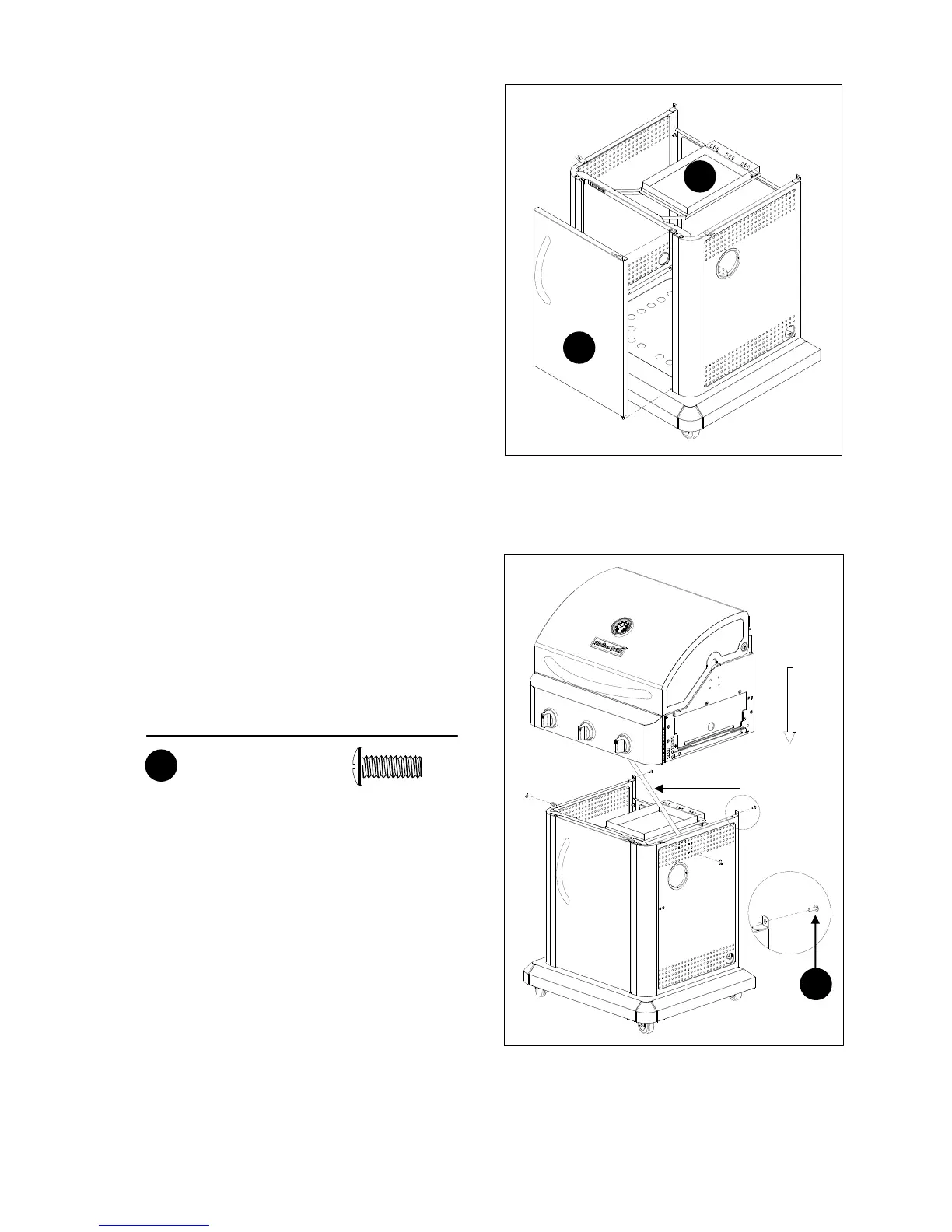

8. For the door (S), insert bottom hinge pin into hole on
bottom panel. Push top hinge pin in the corner of the door
to insert into hole in top corner of the right panel. Then, put
the drip tray (O) onto the drip tray support.
9. Take the pressure regulator out from under the burner box
(A). Lift the burner box (A) onto the cabinet, making sure
that the gas pressure regulator is in the cabinet, then
position burner box on the cabinet by aligning the four tabs
on top of the cabinet with the holes in the burner box.
Fasten the burner box to the cabinet with 4 screws (AA).
Hardware Used
3/16-24 x 1/2 in.
Screw
X 4
AA
S
O
8
9
AA
Gas pressure
regulator
To Next Page
