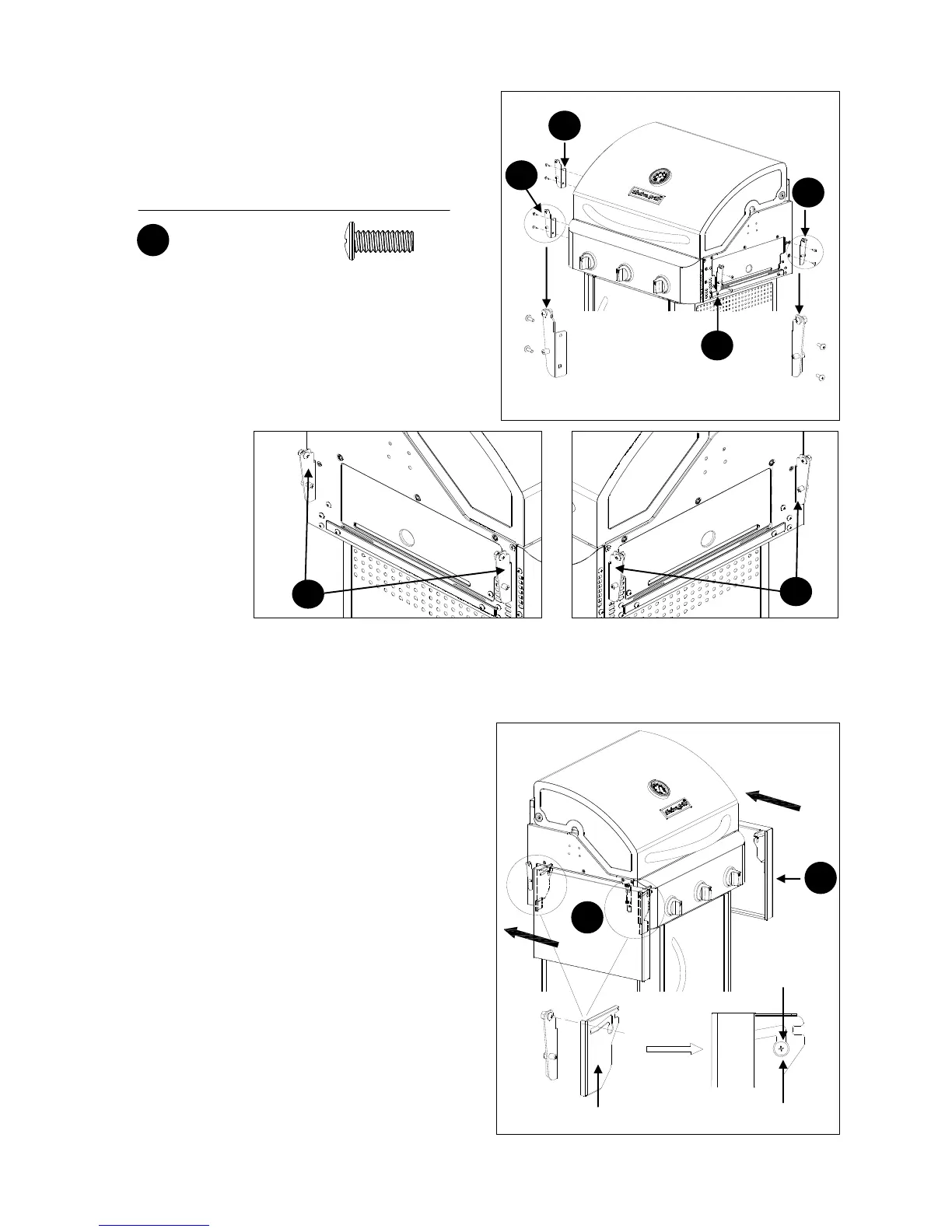

10. Attach the left side shelf bracket (H) to the left of the burner
box (A) and the right side shelf bracket (E) to the right of the
burner box with 2 screws (AA) on each bracket.
Follow steps 11 - 13 for installing or removing the
side shelves (G and F).
11. To install the shelves:
Hold the shelf at its fold-down position (vertical). Align the
large holes on the shelf to the mounting screw on the side
shelf bracket. Move the side shelf from front to back,
making sure the screws fit inside the holes on the side
shelf, then slide into the slot.
Hardware Used
3/16-24 x 1/2 in.
Screw
X 8
AA
10
H
H
E
E
G
F
Side shelf bracket
Large hole
Screw
11
10a
H
10b
E
