Huffy Slider - Brake System Setup; Front Brake Cable Installation

13
B
B
C
C
A
D
A
0
5
4
3
2
1
E
E
Brake Setup

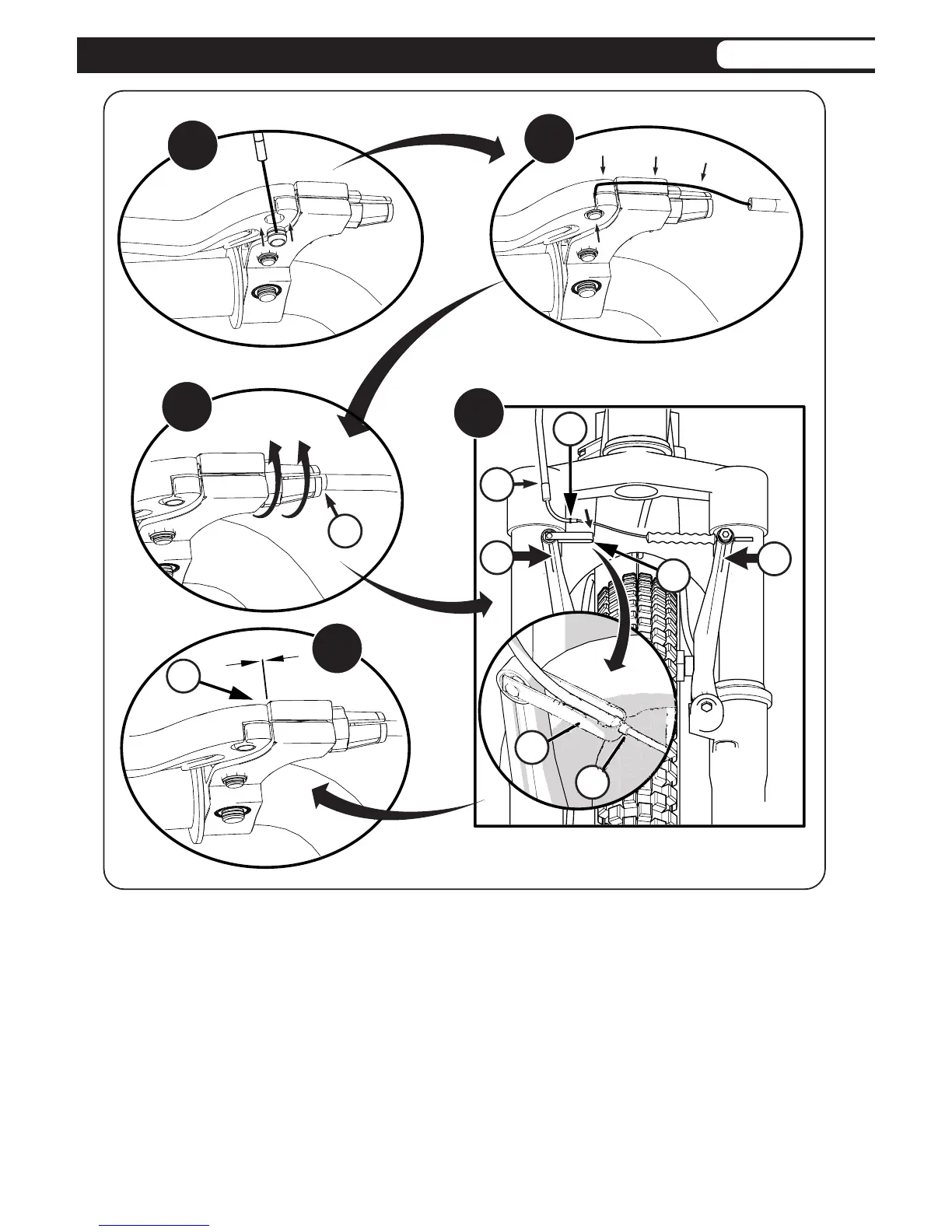

Installing Front Brake Cable:
1. Insert brake cable barrel into brake lever groove (Step 1 and 2).
2. Turn barrel nut so slot is away from brake lever slot (Step 3). Tighten.
3. Squeese the two Brake Levers together (A).
4. Insert the Brake Cable Guide (B) into the cutout in the Guide Bracket (C).
5. Make sure the Brake Cable Guide (B) is seated securely in the Guide Bracket (C)
cutout.
6. Make sure there is no gap at Brake Lever (D) and that both Sheaths (E) are fully
seated.
• Assembly
