CONSOLE UNIT
Graph
Cranking
Battery
Trolling
Motor
Batteries
1
3
2
4
5
Transducer supplied with
MEGA Side Imaging unit at
console
Compatible Accessories
HELIX Series SOLIX Series
1
Ethernet Adapter Cable Ethernet Adapter Cable
720074-1 AS EC QDE NA
2
GPS + Heading Sensor GPS + Heading Sensor
408400-1 AS GPS HS 408400-1 AS GPS HS
720080-1 AS GPS NMEA
3
Minn Kota Trolling Motor with
i-Pilot Link *
Minn Kota Trolling Motor with
i-Pilot Link *
4
Transducer Splitter Cable Transducer Splitter Cable
720101-1 9 M SIDB Y 720103-1 14 M SIDB Y
5
High Speed Transducer (fiberglass hull) High Speed Transducer (fiberglass hull)
710276-1 XP 9 HW T 710287-1 XP 14 HW T
High Speed Transducer (aluminum hull) High Speed Transducer (aluminum hull)
710274-1 XNT 9 HW T 710285-1 XNT 14 HW T
* One (1) AS ECX 30E Ethernet Extension cable included with i-Pilot Link trolling motor
The accessories and part numbers listed are valid as of April 2020. Installations shown are for
HELIX G3N and SOLIX G2 networking models and Minn Kota trolling motors with i-Pilot Link.
NMEA 0183 Ethernet 12V DC Power Transducer Cable
Bluetooth® Signal
MK
Heading
Sensor

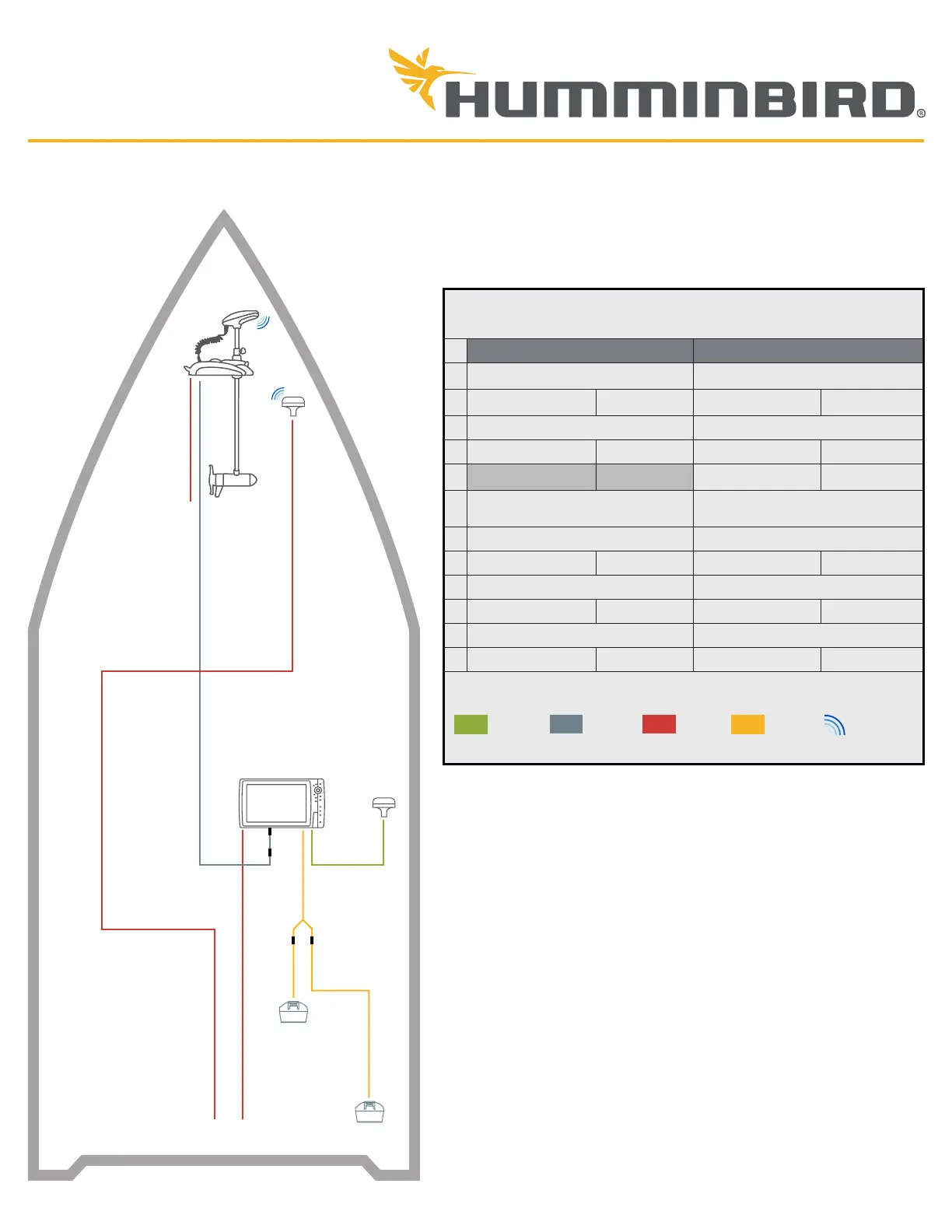

INSTALLATION DIAGRAMS
Minn Kota Trolling Motor with i-Pilot Link
and (1) console-mounted Humminbird unit
