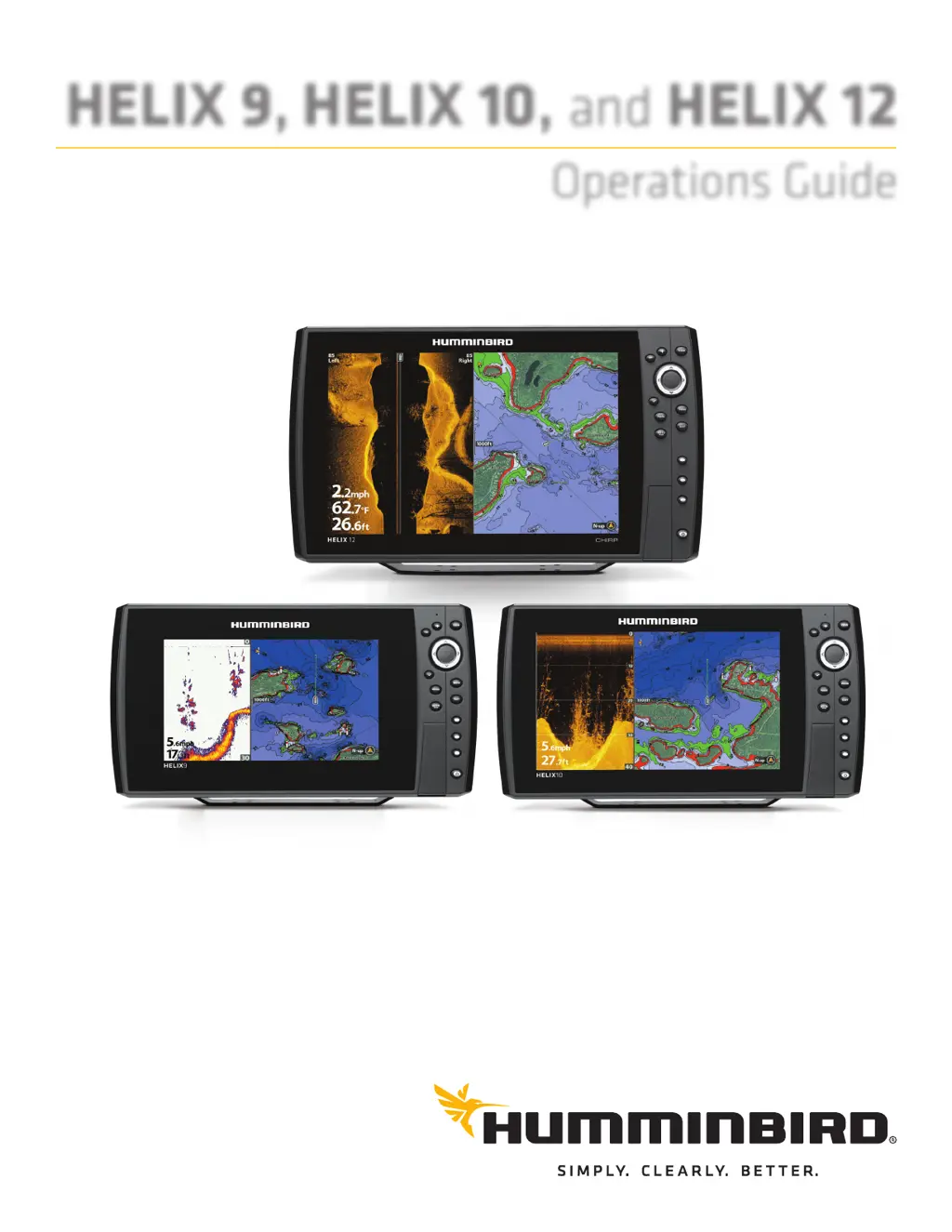

Humminbird HELIX 12 User Manual (English)

Other manuals for Humminbird HELIX 12

Installation Guide13 pages

Installation And Operation Manual34 pages

Accessory Guide13 pages

Questions and Answers:

J
Jason SimmonsJul 26, 2025
What to do if my Humminbird Fish Finder doesn't detect fish, even when they are in the water?
- J
  Jennifer PittsJul 26, 2025
  The sonar readings may be affected by several factors. The transducer might not be positioned correctly or there could be mechanical interference. The transducer may be mounted at an angle, or the hull may be too thick for proper sonar transmission. Also, the bond between the transducer and the hull might not be airtight, or the transducer could be dirty. Low battery voltage or electrical noise from the boat's engine can also interfere with sonar reception. Adjust the transducer position, ensure it's clean, and check for electrical noise.
T
thomas04Jul 31, 2025
How to fix a Humminbird HELIX 12 Fish Finder when the control head doesn’t detect the connected transducer?
- E
  Elizabeth GreerJul 31, 2025
  Check that the transducer cable is securely connected to the control head. Reconnect if necessary. If available, replace the transducer with one that you know is working. Check the transducer cable for damage or corrosion, and replace the transducer if needed.
M
Michelle BrooksAug 4, 2025
What to do if Humminbird HELIX 12 Fish Finder control head doesn’t power up?
- D
  Deborah LopezAug 4, 2025
  Confirm that the power cable is properly connected to the control head, wired correctly, and the fuse is working. Ensure the battery voltage at the power connector is at least 10 Volts. Correct any issues, such as removing corrosion from battery terminals or wiring, or replace the battery if needed.
S
smooreAug 9, 2025
Why does my Humminbird HELIX 12 Fish Finder control head lose power at high speeds?
- J
  Jasmine CastilloAug 9, 2025
  If your boat's engine has unregulated power output, the Humminbird Fish Finder control head might be using its over-voltage protection feature. Ensure the input voltage doesn't go over 20 Volts.
M
Michelle HallAug 14, 2025
What to do if the bottom disappears or weakens at higher speeds on my Humminbird HELIX 12 Fish Finder?
- R
  Robert LarsonAug 15, 2025
  The transducer position may need adjustment. A mix of air and water flowing around the transducer (cavitation) can interfere with sonar data interpretation. Also, electrical noise from the boat’s engine might interfere with sonar reception. Adjust the transducer position.
M
Melissa PalmerAug 20, 2025
What to do if my Humminbird HELIX 12 control head doesn’t detect a connected accessory?
- E
  Ethan GambleAug 20, 2025
  First, check that the accessory cable is securely connected to the control head; reconnect it if necessary. Next, confirm that the accessory is connected to a stable and reliable power source. As a last resort, power off all control heads and connected equipment, wait 10 seconds, and then power everything back on.

Humminbird HELIX 12 Specifications

General

Backlight	LED
Power Input	10-20 VDC
Chartplotting	Yes
Humminbird Basemap	Yes
LakeMaster Compatibility	Yes
Navionics Compatibility	Yes
i-Pilot Link Compatibility	Yes
Radar Compatibility	Yes
NMEA2000	Yes
NMEA0183	Yes
Networking	Ethernet
Water Rating	IPX7
Display Size	12.1 inches
Resolution	1280 x 800 pixels
Sonar	CHIRP Sonar
Sonar Frequencies Supported	83/200 kHz, 455/800 kHz
Target Separation	2.5 inches
Maximum Depth	1500 feet
Temperature	Built-In
Speed	Built-in sensor
GPS	Built-in
Card Reader	Yes
Transducer	Included

Summary

Introduction

How to Use This Manual

Instructions on how to open, read, and search the manual using PDF reader.

Getting Started

Power On

Steps to power on the Humminbird control head and select startup mode.

Quick Setup

Initial setup of language, depth, water type, and connected transducer.

Check GPS Reception

Instructions to verify GPS signal strength and fix type for accurate positioning.

Set Alarms

How to enable and configure various audible and visual alerts for navigation and system status.

Helix Control Head

Control Head Keys

Overview and function of each physical button and key on the control head unit.

SD Card Slot(s)

Information on using the SD card for software updates, maps, and data storage.

Menu System Overview

Open the Main Menu

Accessing the primary menu with categorized options like Sonar, Navigation, Setup.

Change the User Mode (Normal or Advanced)

Switching between user modes to simplify or reveal advanced menu options.

Views

Display a View

How to select and display different data views like Sonar, Chart, or Radar.

Combo Views

Displaying multiple data views simultaneously on the screen for comprehensive information.

Display Digital Readouts

Customizing how data like speed, depth, and temperature are shown on screen.

Sonar Overview (Sonar, DI, SI, CHIRP)

DualBeam PLUS Sonar (HELIX SONAR GPS)

Explanation of the DualBeam PLUS sonar technology and its coverage patterns.

Side Imaging Sonar (HELIX SI GPS)

Details on Side Imaging sonar, its wide coverage, and depth performance.

Down Imaging Sonar (HELIX DI GPS)

Information on Down Imaging sonar, its thin beams, and image quality.

Set Up Sonar (SONAR, DI, SI, CHIRP)

Set up an Accessory Transducer

Connecting and configuring a new transducer for optimal sonar performance.

Adjust the Noise Filter

Reducing sonar interference from engine noise, turbulence, or other devices.

Select Frequencies for the 2D View

Choosing specific transducer beams and frequencies for the 2D Sonar view.

Adjust Sonar Display Settings

Filter Surface Clutter

Reducing noise at the top of the sonar display caused by algae or aeration.

Change the SwitchFire Mode

Selecting Clear Mode or Max Mode to control how sonar returns are displayed.

Turn on/off Fish ID+ Settings

Enabling or disabling fish identification symbols and adjusting sensitivity.

Navigation in Sonar Views

Mark a Waypoint

Saving a specific location as a waypoint on the sonar display.

Navigate to a Position

Starting navigation to a selected waypoint or cursor position on the sonar view.

Customize the Down Imaging View

Change the View Colors

Selecting different color palettes for Down Imaging sonar returns.

Customize the Side Imaging View

Show/Hide SI Range Lines

Displaying or hiding range lines to help estimate object locations in Side Imaging.

Manage Screen Snapshots and Recordings

Record and Playback

Recording sonar data and playing back recorded sessions for analysis.

Chart Overview

Display a Chart View On-Screen

How to display and customize the navigational chart view.

Select a Chart Source

Selecting the map data source, either built-in or from an SD card.

Customize the Chart View

Adjusting background color, north indicator, and chart projection lines.

Navigation Overview

Navigation Alarms Overview

Setting up and understanding alarms for off-course, arrival, and drift conditions.

Man Overboard (MOB) Navigation

Activating and using the Man Overboard function for immediate return to a lost person.

Waypoints

Mark Waypoints

Saving specific locations as waypoints, either at the boat or cursor position.

Routes

Create a Route and Start Navigation

Linking waypoints to create a navigation path and starting navigation along the route.

Tracks

Change New Track Settings

Customizing the appearance and behavior of new tracks recorded on the unit.

Search

Search for a Lake

Finding and displaying specific lakes from the installed map card on the chart view.

Manage Your Navigation Data

Open the Waypoint Management Dialog Box

Accessing the central interface for managing waypoints, routes, and tracks.

Manage Waypoints

Editing, duplicating, moving, and managing individual waypoints.

Manage Routes

Editing, creating, and managing navigation routes by linking waypoints.

Manage Tracks

Editing, saving, and managing recorded boat tracks for navigation history.

AutoChart Live Overview

Plan Your Map

Strategies and tips for planning areas to map using AutoChart Live.

1. Prepare the Control Head for Mapping

Steps to set up the unit, map source, and transducers for mapping.

2. Record Your Custom Map

Instructions on starting and conducting the mapping process with AutoChart Live.

3. Stop Recording

Procedures for stopping the mapping process and managing recorded data.

Manage Your Control Head

Select an Installed GPS Receiver

Choosing the active GPS receiver when multiple are installed or available.

Update the Control Head Software

Downloading and installing the latest software updates for the control head.

Maintenance

Control Head Maintenance

Cleaning and care instructions for the control head screen and unit.

Troubleshooting

Control Head Doesn’t Power Up

Troubleshooting steps for when the control head fails to power on.

Control Head Doesn’t Detect the Connected Transducer

Steps to diagnose and resolve issues with the control head not recognizing the transducer.

Display Problems

Common display issues and their potential solutions, including noise and signal loss.

Specifications

HELIX 9 SONAR GPS

Technical specifications for the HELIX 9 Sonar GPS model.

HELIX 10 SONAR GPS

Technical specifications for the HELIX 10 Sonar GPS model.

HELIX 12 CHIRP GPS

Technical specifications for the HELIX 12 CHIRP GPS model.

HELIX 9 Control Head Measurements

Physical dimensions and mounting information for the HELIX 9 control head.

Linux Operating System
