Humminbird Helix Series Installation Diagrams

BOW UNIT
Trolling Motor
Batteries
2
1
3
4
5
Compatible Accessories
HELIX G3N Series SOLIX Series
1
GPS + Heading Sensor GPS + Heading Sensor
408400-1 AS GPS HS 408400-1 AS GPS HS
720080-1 AS GPS NMEA
2
Minn Kota Ultrex Trolling Motor with
i-Pilot Link and Built-In Mega Imaging *
Minn Kota Ultrex Trolling Motor with
i-Pilot Link and Built-In Mega Imaging *
3
MEGA 360 and MDI/2D Y-Cable MEGA 360 and MDI/2D Y-Cable
720108-1 14 M360 2DDI Y 720108-1 14 M360 2DDI Y
4
MEGA 360 Adapter Cable MEGA 360 Adapter Cable
AD HELIX M360
(Included with
MEGA 360)
NA
5
MEGA 360 Imaging MEGA 360 Imaging
411250-1
MEGA 360
Imaging – Ultrex
411250-1
MEGA 360
Imaging – Ultrex
The accessories and part numbers listed are valid as of April 2020. Installations shown are for
HELIX G3N and SOLIX G2 networking models and Minn Kota trolling motors with i-Pilot Link.
NMEA 0183 Ethernet 12V DC Power Transducer Cable Bluetooth® Signal
Networking
Graph
MK
Heading
Sensor
Cranking
Battery

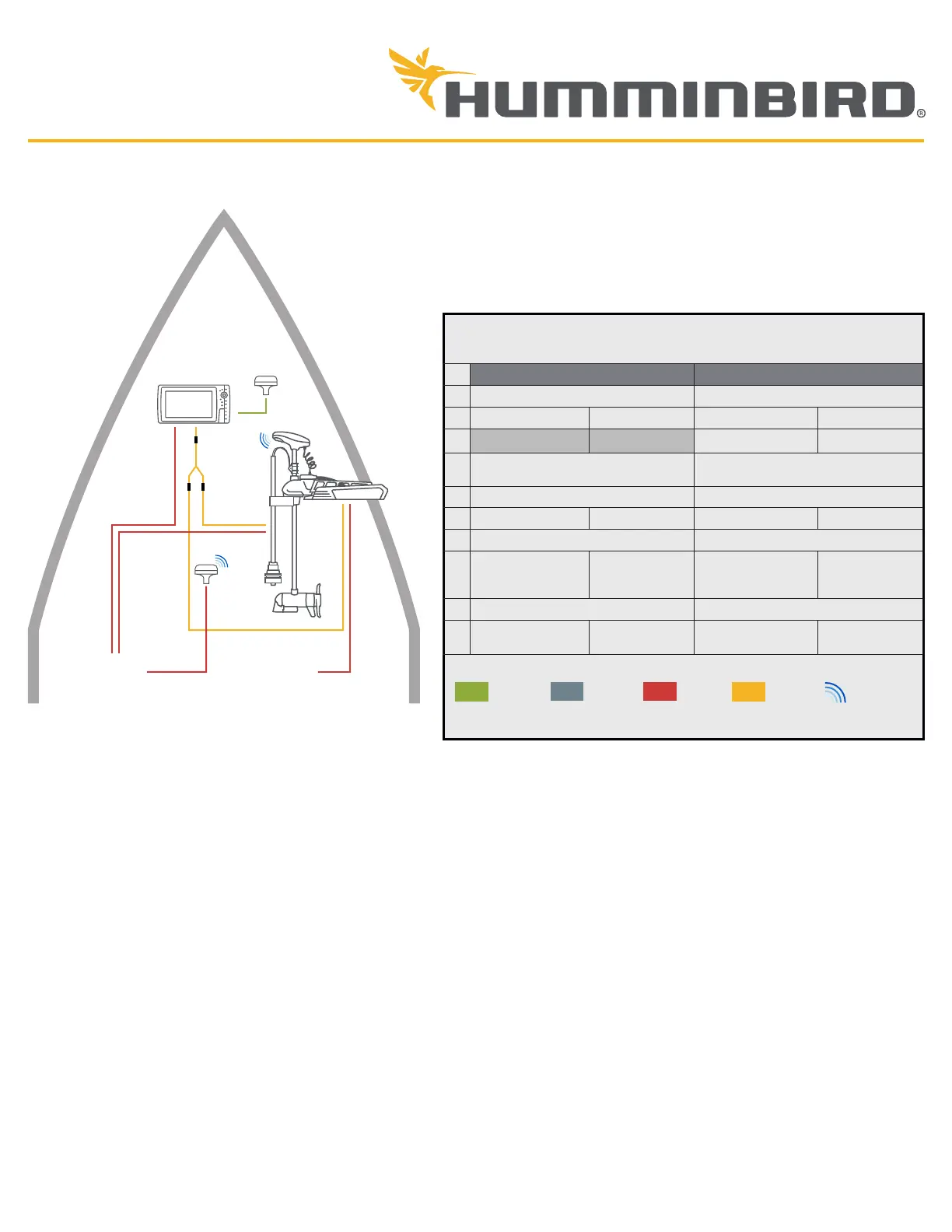

INSTALLATION DIAGRAMS
Adding a MEGA 360 Imaging – Ultrex model
to a boat with (1) Bow-Mounted Humminbird unit
and Minn Kota motor with Built-In MEGA Imaging
