PB
2
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
x4
x15
x5
x15
x2
x2
For installing the hanger bracket and wiring the fan
For installing the blades
For installing the light xture
bag
bag bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
Spare Parts
For your convenience,
you may receive extra fasteners.
bag
Bulb
Glass
Light Kit
Hood
Motor
Blade Screw
Grommet
Blade
Wood Screw
WIre Nut
Washer
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.

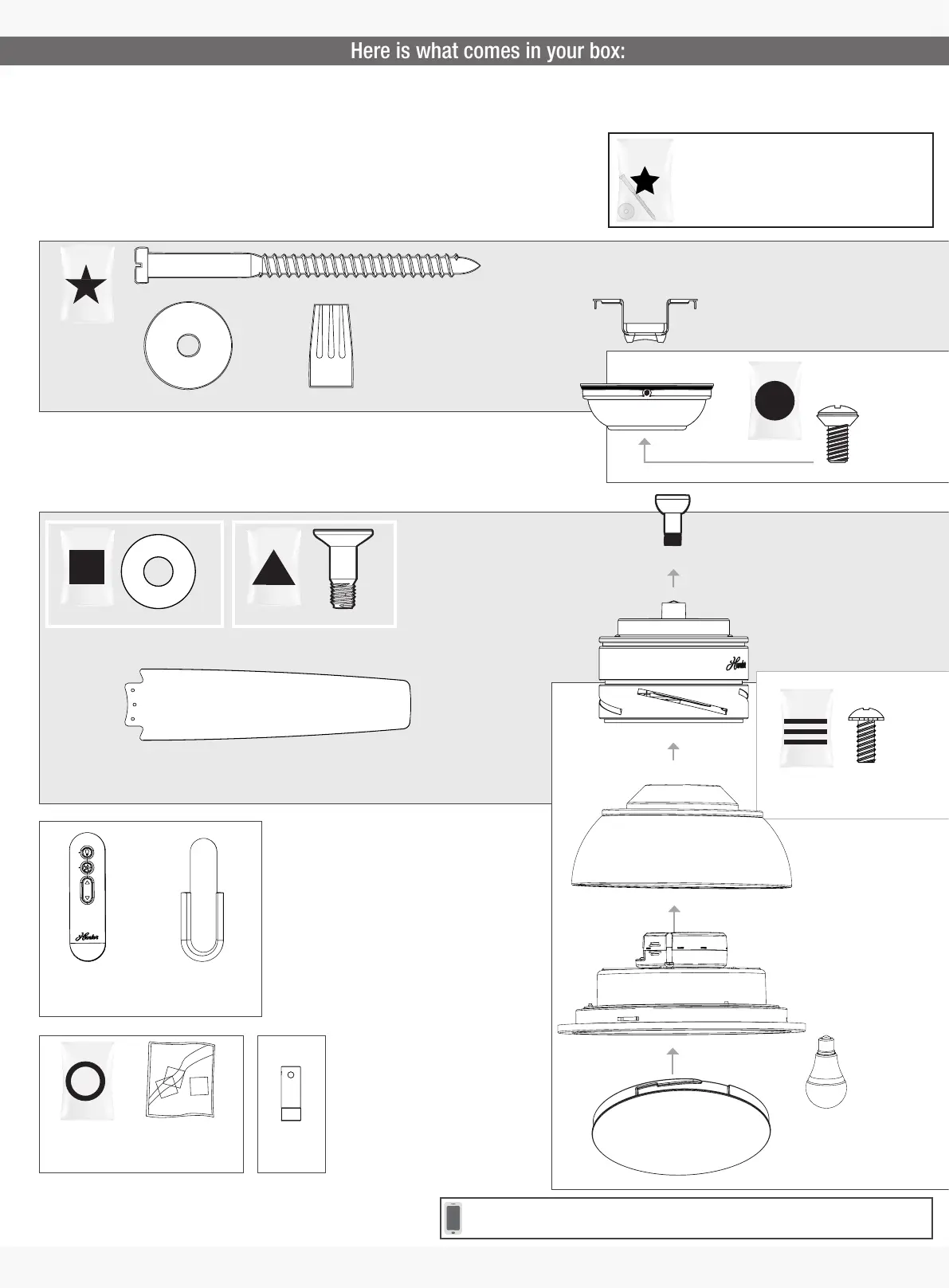

Here is what comes in your box:
Light Kit Screw
bag
M3745-01 r060619
x2
x2
For installing the canopy
Canopy
Canopy Screw
Ceiling Bracket
bag
Downrod
Extra
Downrod
Remote Components
Remote Control Remote Cradle
x3
To Next Page
