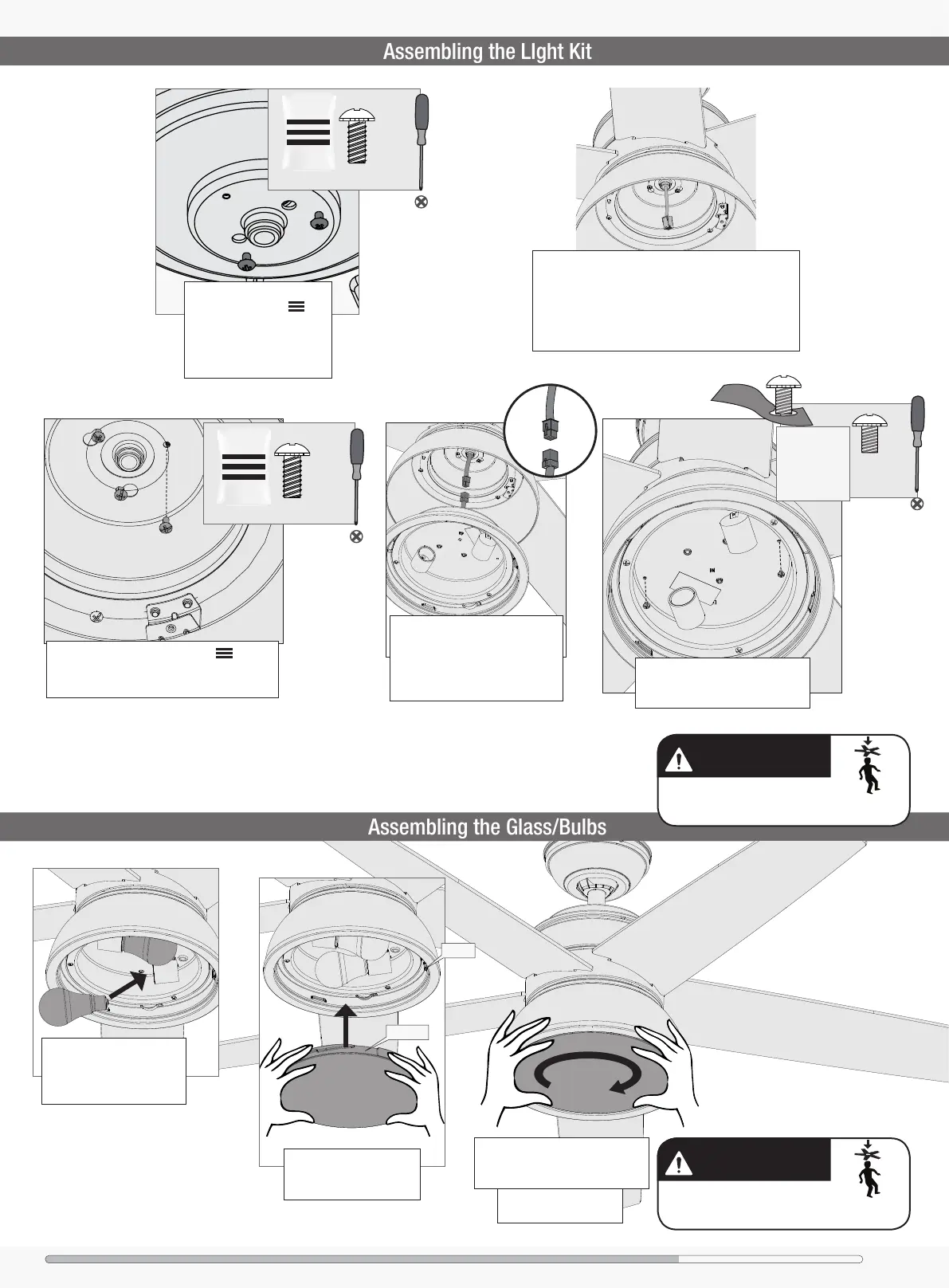

Assembling the Glass/Bulbs
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
1 of 3
Light Kit Screw
bag
Short Light
Kit Screw
Attach the lower switch housing
to the hood assembly using the
kept short light kit screws.
Partially install two light kit
screws, found in the
hardware bag, halfway into
the adapter plate as shown.
It does not matter which two
screw holes you choose.
2 of 3
Light Kit Screw
bag
Feed the wire plug through the center hole of the
hood assembly. Align the keyhole slots in the hood
assembly with the two screws you just installed. Lift
the hood assembly so that the keyhole slots engage
the two screws, and twist counterclockwise to lock
the hood assembly into place.
Connect the plug to the lower
switch housing. Make sure to
line up the colored markings
on the connectors and that the
connectors latch.
Insert the third screw found in the
hardware bag, into place and then tighten all
three screws.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
Install the included bulbs
into the sockets. When
necessary, replace with
bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
Notch
Tab
Preparing the Light Fixture
These are the
screws you
saved that
were attached
to the red ag.
2 of 2
