2
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x4
x2
x2
x2
For installing the hanger bracket and wiring the fan
For installing the blades
For installing the canopy
For installing the light xture
Motor
Downrod
Canopy
Canopy Screw
Ceiling Bracket
Wood Screw
Wire Nut
Washer
bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

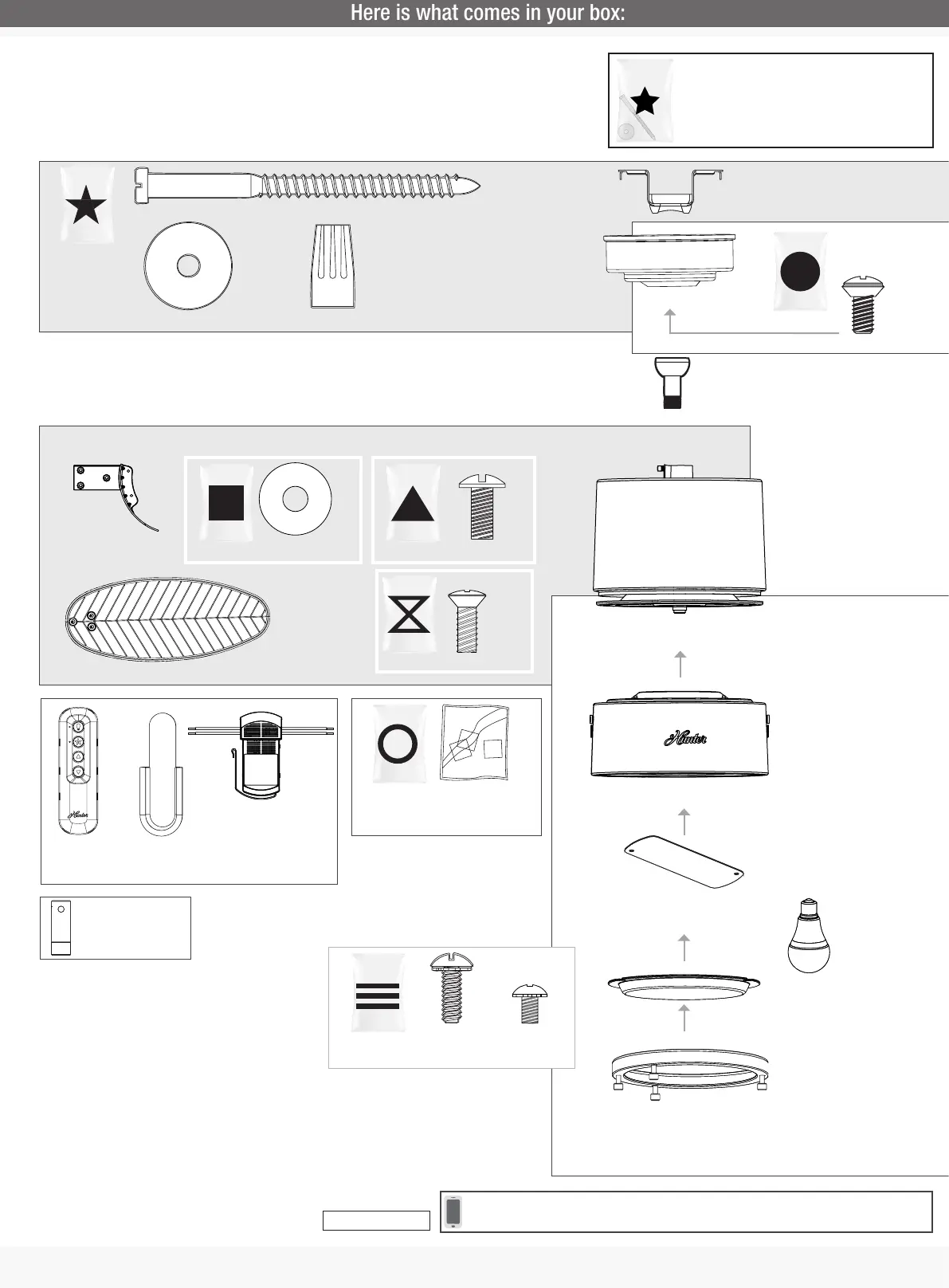

Here is what comes in your box:
bag
M3869-01 r122120
For your convenience,
you may receive extra fasteners.
bag
Spare Parts
Blade Arm
Blade x5
x5
x15
x15
Blade ScrewBlade Washer
bag bag
Blade Arm Screw
x10
bag
Globe
Globe Retainer
Bulb
x2
Switch Housing Plate
Light Kit Assembly
x6
Light Kit Screw
x3 x2
bag
Short Light
Kit Screw
Remote Components
Remote Control
Extra downrod
Remote Receiver
Remote Cradle
Fan style may vary.
Note:
To Next Page
