8
Blade Arm Screw

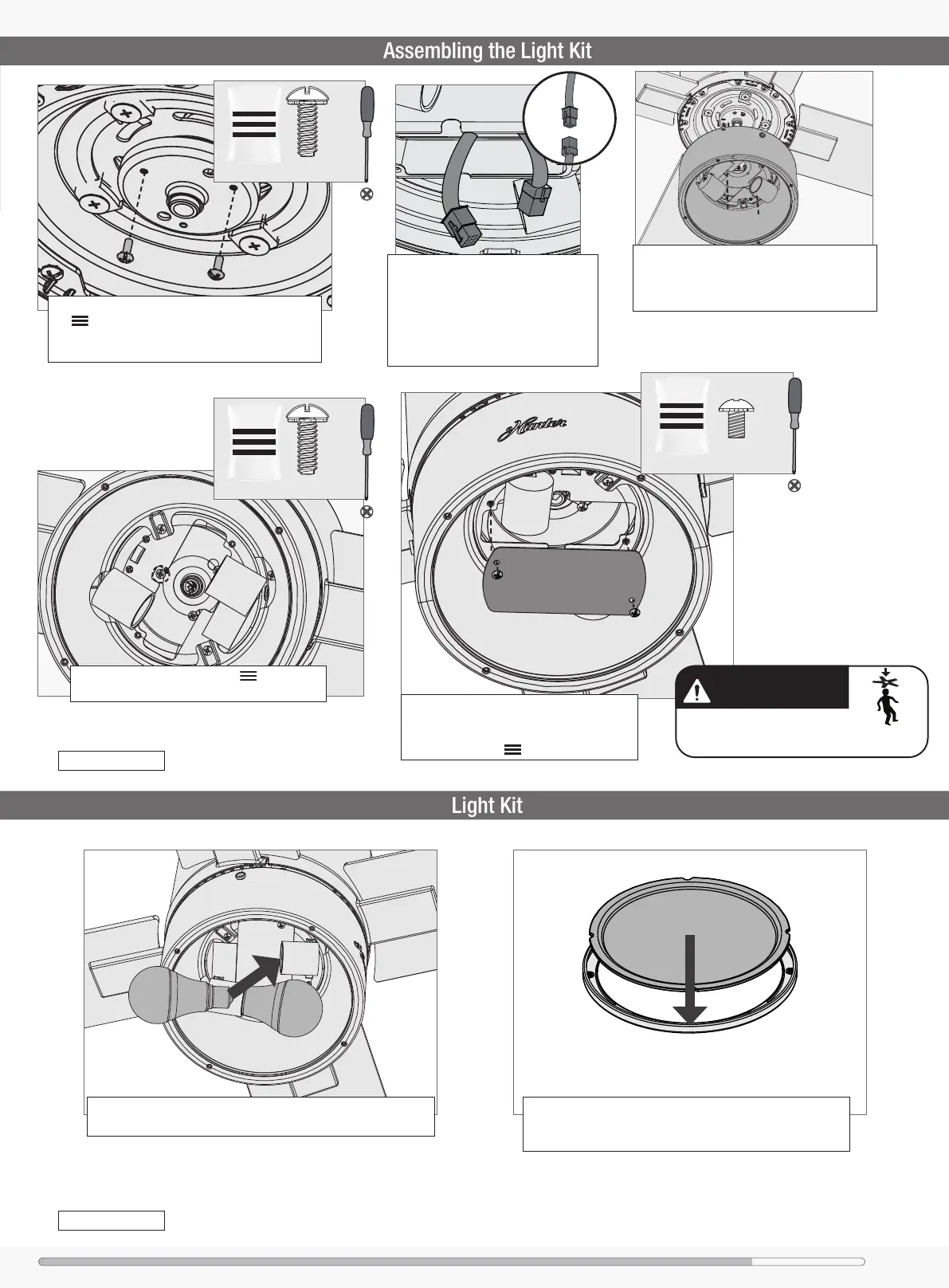

Align the keyhole slots in the top of the light kit
assembly with the partially installed assembly
screws. Wrap the keyhole slots around the
screws and twist counterclockwise.
Partially install two light kit assembly screws, found in
the hardware bag, halfway into the motor housing
as shown. It does not matter which two screw holes
you choose.
Feed the 9-pin plug connector coming
from the bottom of the motor housing
through the center hole in the light kit
assembly. Connect it to the plug connector
found in the switch housing area of the
light kit assembly. Make sure to line up
the colored markings on the connectors.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
2 of 3
Light Kit Screw
bag
1 of 3
Light Kit Screw
bag
2 of 2
Short Light Kit
Screw
bag
Insert the third screw, found in the hardware
bag, in place and rmly tighten all the three screws.
Carefully push all switch housing components
into the switch housing, then install the switch
housing plate using two short light kit assembly
screws, found in the hardware bag.
Install a bulb into each of the sockets. When necessary, replace with
bulbs of the same wattage.
Align the globe indentations with the globe retainer screw holes
and carefully lower the globe into the globe retainer until it rests
in place.
Repeat x2
Fan style may vary.
Note:
Fan style may vary.
Note:
