Hunter e36 - Page 125

Hunter e36 • Water Systems
9.7
A 3/4” (1.9cm) Ball Valve with Thru-Hull F 16K BTU Air Conditioner B 3/4” (1.9cm) Strainer G 5/8” (1.6cm) Hose C 3/4” (1.9cm) Hose H 1/2” (1.27cm) Ball Valve D 5/8” (1.6cm) Hose I 1/2” (1.27cm Discharge Thru-Hull Fitting E A/C Sea Water Pump* J 5/8” (1.6cm) HB X 1/2” (1.27cm) MPT
J
I
H
G
F
E
D
B C
A

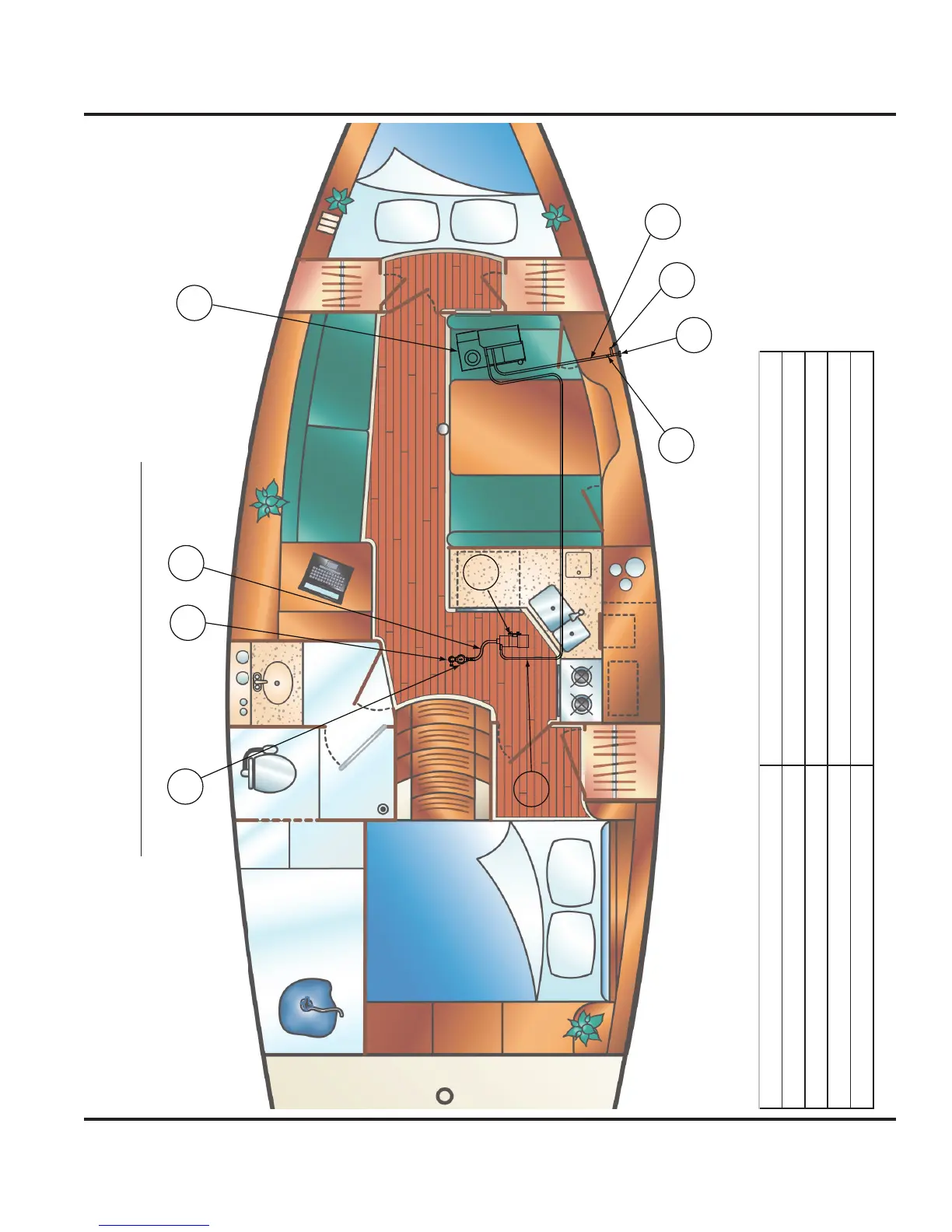

Air Conditioning Plumbing Layout
