Hunter 31
7.11

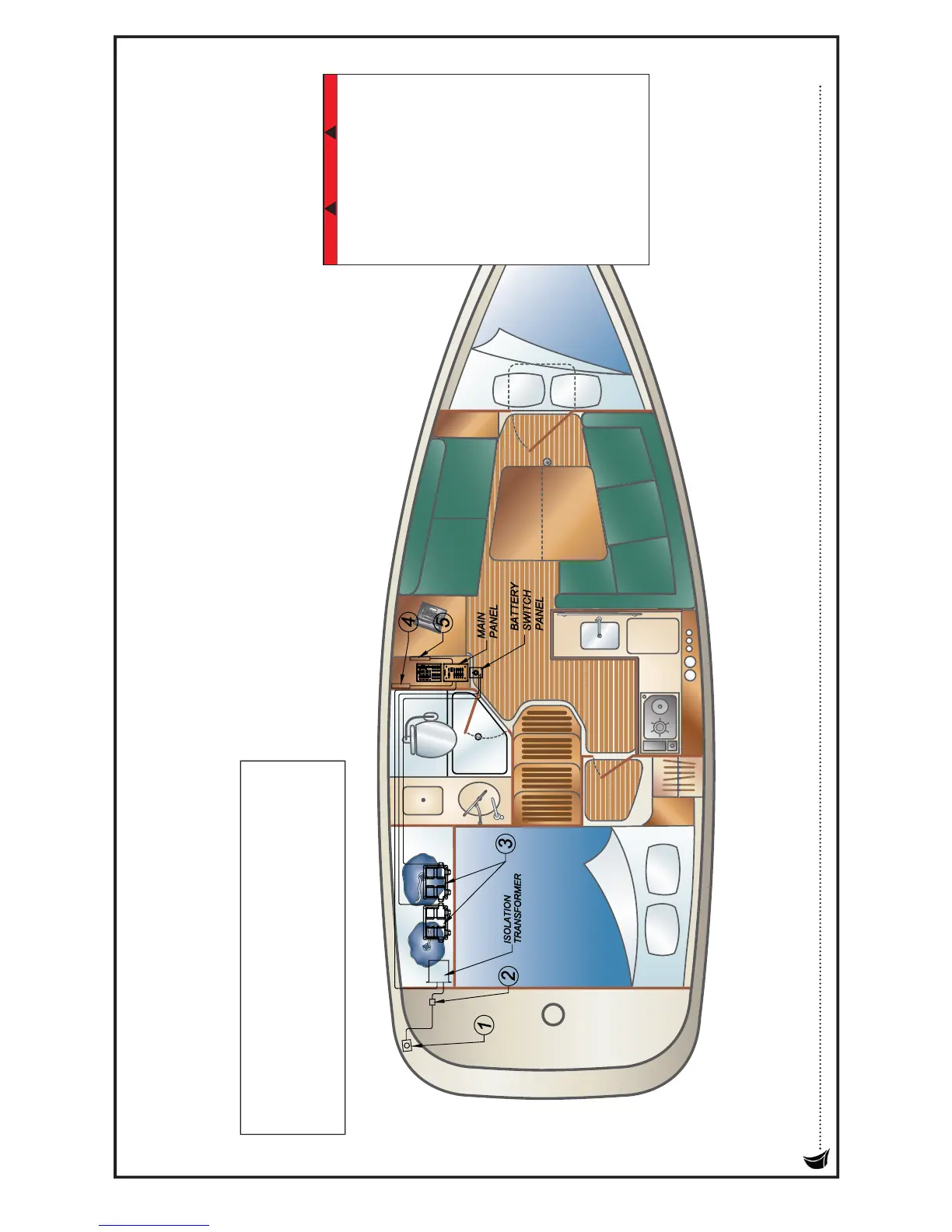

DC Wiring Diagram
1. SHORE POWER POWERS AC PANEL
2. SHORE POWER RESET
3. HOUSE BATTERIES PROVIDE 12VDC VOLTAGE TO
DC SIDE OF DISTRIBUTION PANEL AND TO THE OPTIONAL
INVERTER VIA THE BATTERY SWITCH PANEL
4. OPTIONAL INVERTER CONVERTS 12VDC TO AC VOLTAGE
AND POWERS AC PANEL (WITH THE EXCEPTION OF THE WATER HEATER)
5. OPTIONAL BATTERY CHARGER
NOTE: BE SURE THE BATTERY SELECTOR SWITCH ON THE
BATTERY CHARGER IS IN THE PROPER POSITION FOR YOUR
BATTERY TYPE.
DA NG E R
! !
Fuel Fumes in the engine compartment can
explode! Before working on any electrical
wiring, ventilate the engine compartment and
disconnect the batteries to prevent sparking.
Never use an open flame in a battery storage
area.
Batteries can explode if a spark or flame ignites
the free hydrogen given off during charging.
Batteries contain Sulfuric Acid and can cause
severe personal injury if mishandled. Avoid
contact, flush with water for at least 15 in. If
swallowed, drink large quantities of milk of
magnesia, beaten egg, or vegetable oil, and get
medical attention immediately.
Never reset a breaker that has tripped without
first correcting the problem. Electrical system
devices can be damaged and be faulty which
can cause fire. Always correct the problem
causing the tripped breaker before re-
energizing.
Alterations or extensions to your electrical
system can cause electrical fire or shock.
