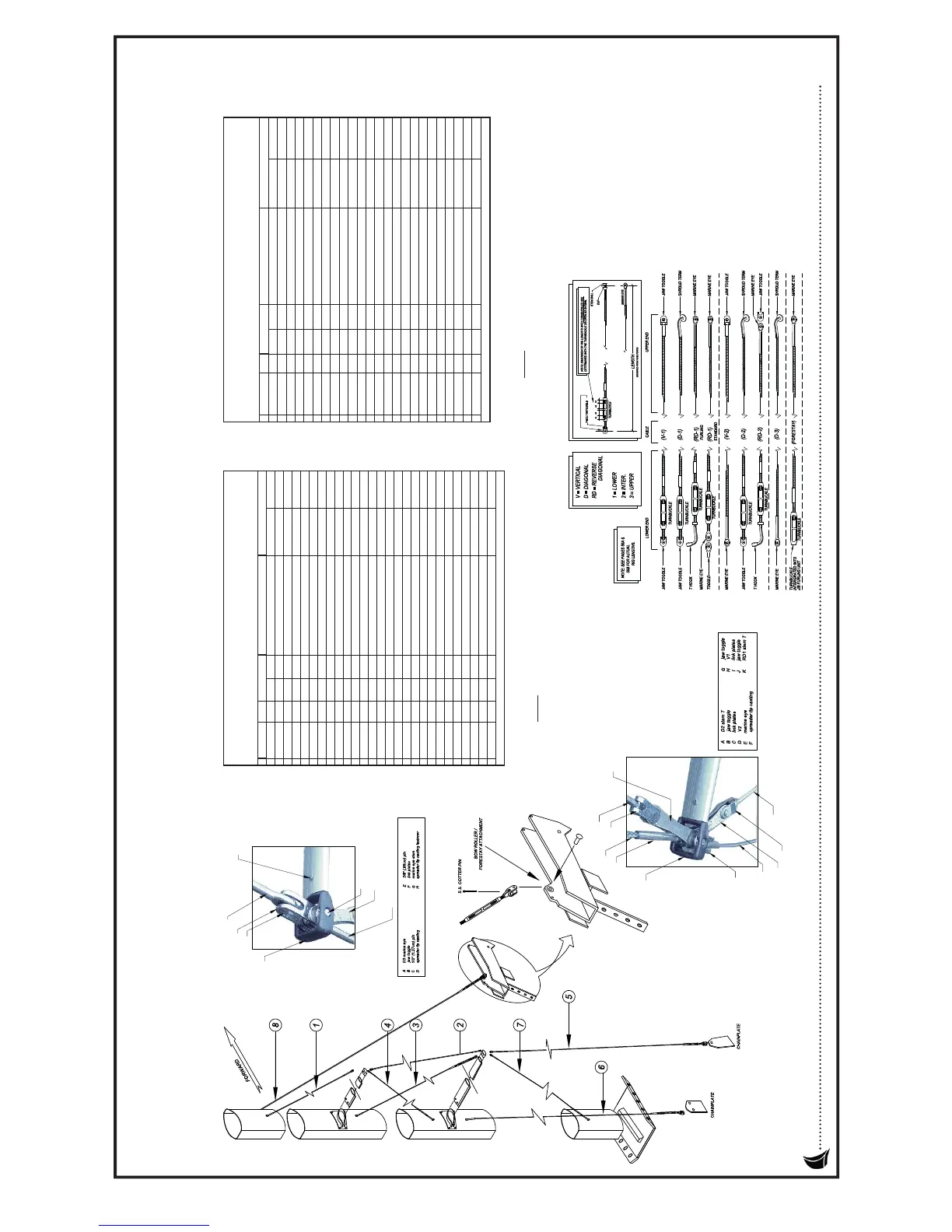

Hunter H31 - Page 151

C
A
B
D
E
F
G
H
J
K
I
ITEM QTY FITTINGS
1 D3 2 1/4" 6mm T-TERMINAL 308-324 10ft 8 3/4" 3270 mm
FORK 308-417
2 V2 2 1/4" 6mm EYE 308-362 10ft 6" 3200 mm
EYE 308-362
3 D2 2 5/32" 4mm Stemball 308-510-01 10ft 5 1/2" 3190 mm
Stemball Cups 306-572 +573 STD/FRK TB 174-472-06
4 RD2 2 5/32" 4 mm FORK 308-312-01 9ft 11 1/2" 3035 mm
STD/T TB 174-472-21
5 V1 2 1/4" 6 mm Fork 308-417 11ft 8" 3560 mm
STD/TGLE TB 174-324-09
6 D1 2 1/4" 6 mm Stemball 308-512-01 12ft 2 1/2" 3720 mm
Stemball Cup 306-573 STD/TGLE TB 174-324-09
7 RD1 2 5/32" 4 mm FORK 308-312-01 8ft 11 1/4" 2725 mm
STD/T TB 174-472-21
8 F0RESTAY 1 1/4" 6 mm FURLEX 106-12 33ft 3 3/4" 10155 mm
OVERALL CP-CP
3. MEASURE T-TERMINALS & STEMBALLS FROM TOP OF FITTING. 1. CP = CENTER PIN; EOS = END OF STUD
2. LENGTHS DO NOT
INCLUDE SPREADER TIP LINKAGE.
SELDEN MAST SRIG-0120
HUNTER 31 CONVENTIONAL
STANDING RIGGING
WIRE SIZE CP-CP OR CP- EOS
ITEM QTY FITTINGS
1 D3 2 1/4" 6 mm T-TERMINAL 308-324 10ft 7 7/8" 3250 mm
FORK 308-417
2 V2 2 1/4" 6 mm EYE 308-362 10ft 6 3/4" 3220 mm
EYE 308-362
3 D2 2 5/32" 4mm T-TERMINAL 308-322 9ft 8" 2945 mm
STD/FRK TB 174-472-05
4 RD2 2 5/32" 4mm FORK 308-312-01 10ft 3050 mm
STD/T TB 174-472-21
5 V1 2 1/4" 6 mm FORK 308-417 11ft 8 1/4" 3560 mm
STD/TGLE TB 174-324-09
6 D1 2 1/4" 6 mm T-TERMINAL 308-324 11ft 4 3/4" 3475 mm
STD/TGLE TB 174-324-09
7 RD1 2 5/32" 4 mm FORK 308-312-01 8ft 11 3/4" 2735 mm
STD/T TB 174-472-21
8 FORESTAY 1 1/4" 6 mm FURLEX 106-12 33ft 3 3/4" 10155 mm
OVERALL CP-CP
3. MEASURE T-TERMINALS & STEMBALLS FROM TOP OF FITTING. 2. LENGTHS DO NOT
INCLUDE SPREADER TIP LINKAGE.
CP-CP OR CP-EOS
SELDEN MAST SRIG-0121
HUNTER 31 FURLING
STANDING RIGGING
WIRE SIZE
1. CP = CENTER PIN; EOS = END OF STUD
H
A
B
C
D
E
F
G
UPPER SPREADER TIP
LOWER SPREADER TIP
Hunter 31
12.7
Standing Rigging
