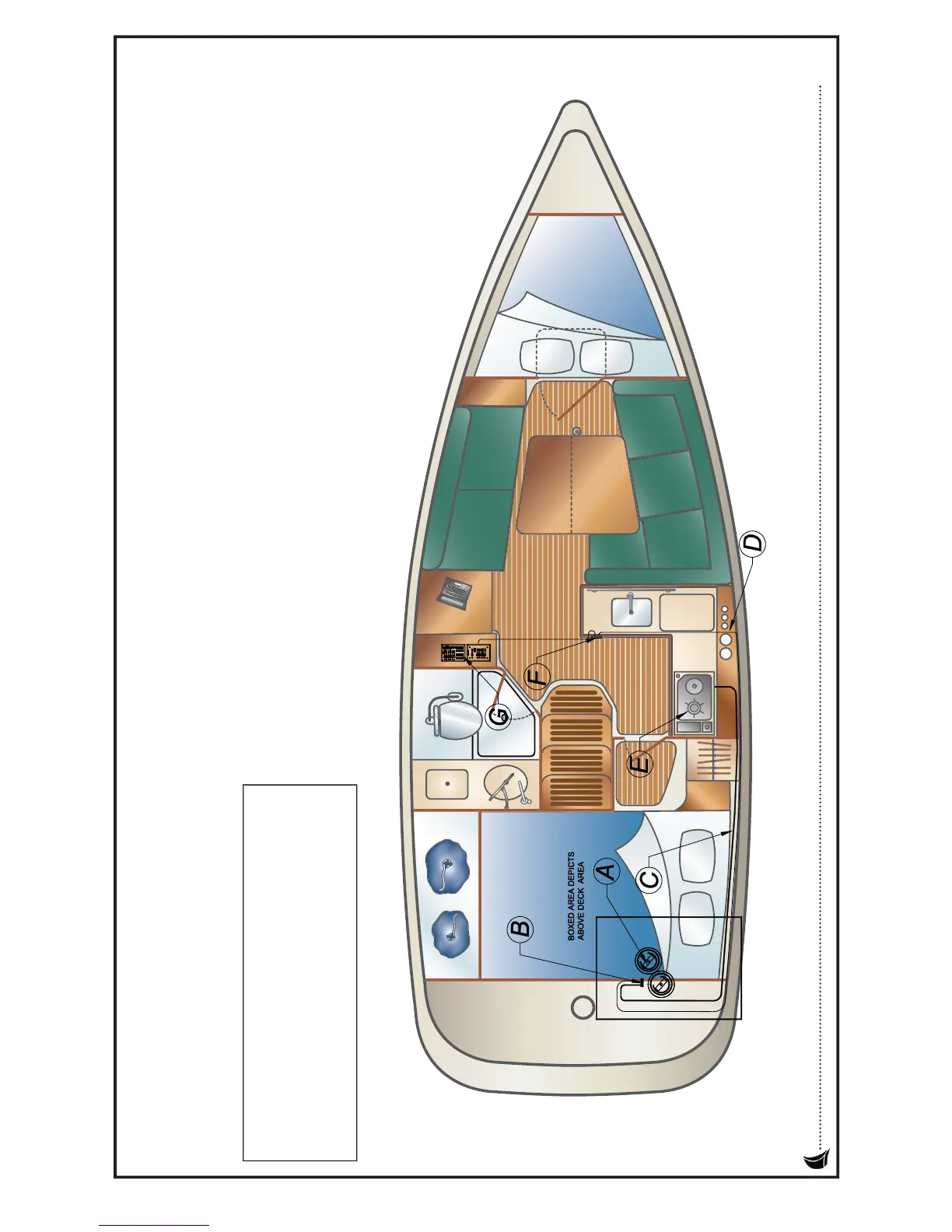

A LPG TANK(S) LOCATED IN STBD SWIM LOCKER
B LPG SOLENOID
C RUBBER GAS LINE HOSE (COPPER IN CERTAIN REGIONS
D POWER LINE FROM LPG CONTROL SWITCH
E GIMBALLED STOVE
F REMOTE CONTROL SHUT-OFF LOCATED IN GALLEY FACE
G POWER FROM MAIN ELECTRIC PANEL TO REMOTE SWITCH
Hunter 31
5.14
LPG (Liquifi ed Petroleum Gas) Lines Layout
