3
INSTALLATION
Installing the HPC retrot face panel
Ensure you have a strong Wi-Fi signal. Wi-Fi coverage can be easily tested using
a smartphone. A signal strength of two or three bars is recommended. Wi-Fi
connectivity can also be tested on the HPC itself (signal strength is shown when
you select a wireless network).
Mounting the controller
All necessary hardware is included for most installations.
For installation, mounting, and station wiring instructions for your controller, please refer
to your Pro-C
®
manual.

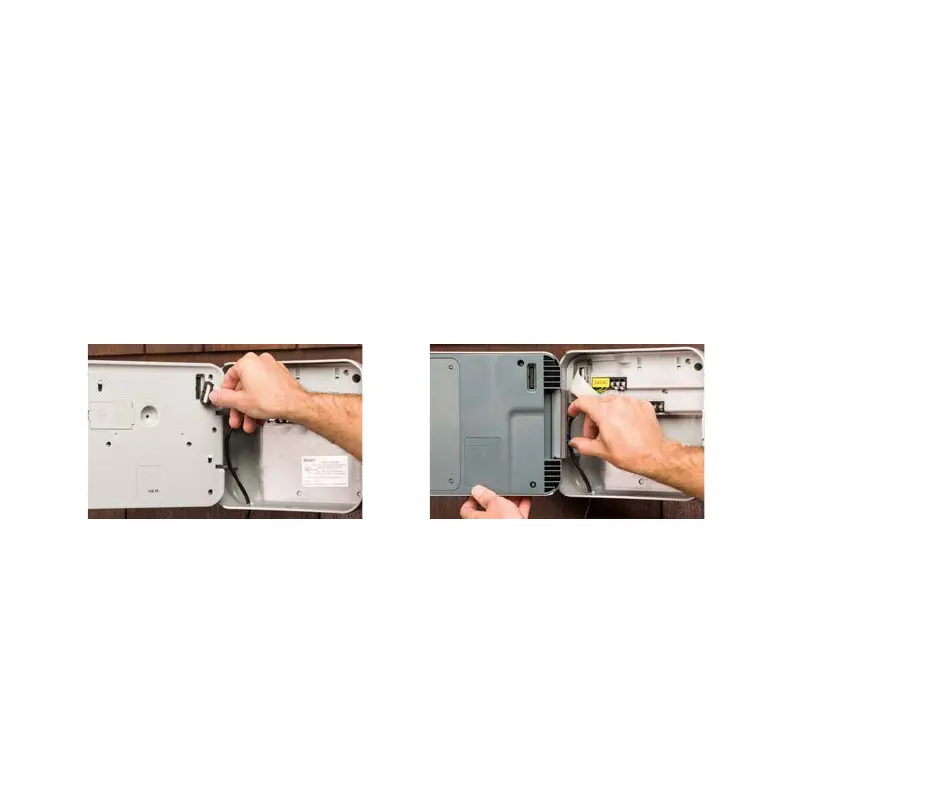

INSTALL HPC FACE PANEL
• Press hinges and attach
• Connect cable
• Close and turn power on
REMOVE PRO-C FACE PANEL
(with the power turned o)
• Detach cable
• Release the hinge
• Remove faceplate
