Hunter Rosner User Manual

3
4
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Check the outlet box:

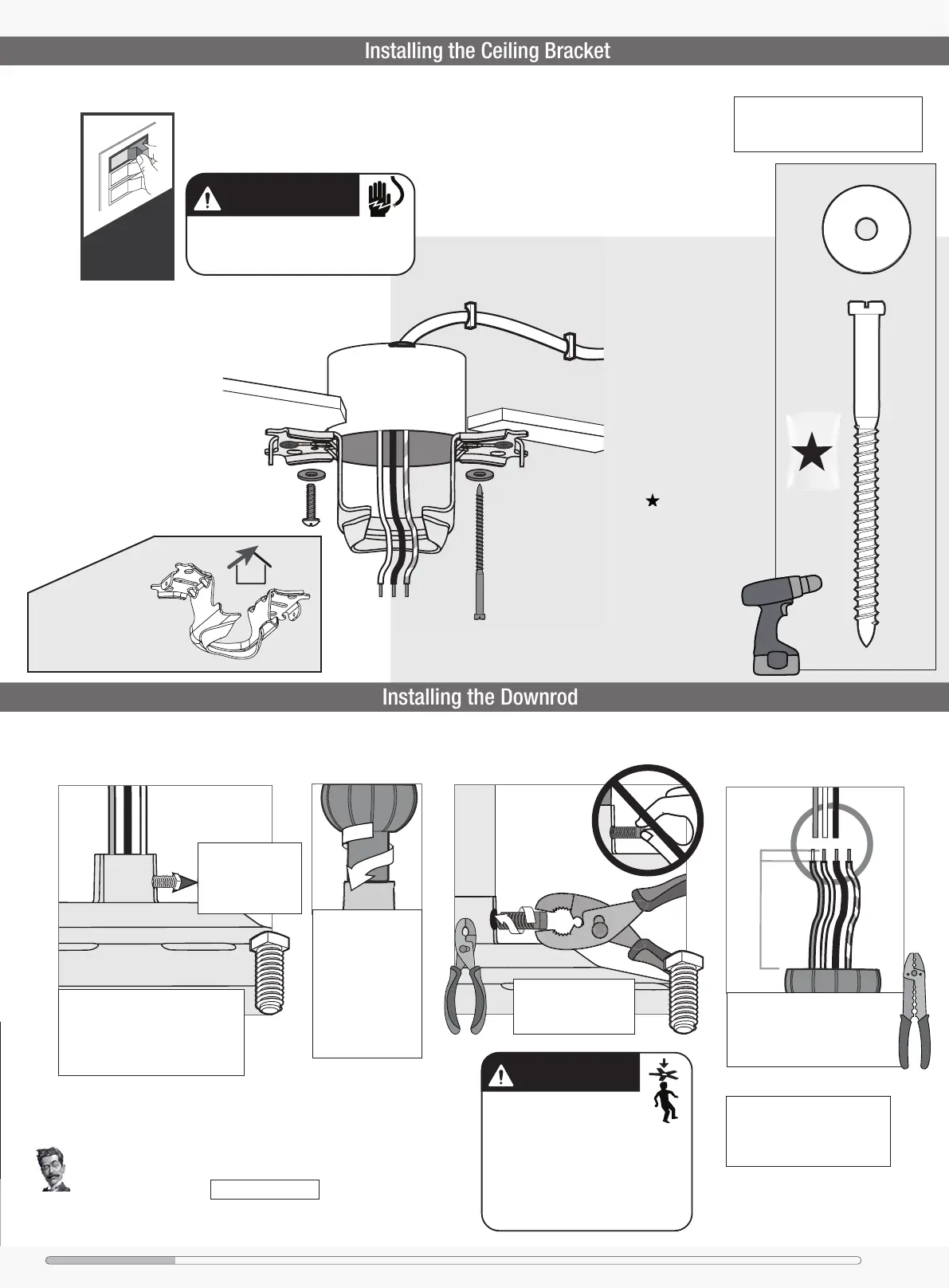

Installing the Ceiling Bracket
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the
hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
ANGLED
MOUNTING TIP
bag
Wood Screw
Washer
x2
x2
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
PB 1
1886
1886
DR-01 r061622
Installing the Downrod
Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
Pass all wires
to one side of
horizontal bar in
downrod assembly.
Hand tighten the
downrod until it
stops (at least
4–5 complete
revolutions).
Trim the wires coming from
the fan so that 8-inches
remain coming from the top
of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
Hunter Pro Tip:
The ground wire attached to
the downrod is approximately
8 inches.
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS tighten setscrew with pliers.
• DO NOT
hand tighten setscrew.
• CHECK
the setscrew is tight using pliers
each time you change fan direction.
K
E
E
P
!
Back out the pre-installed setscrew
so that the setscrew’s threads
are still engaged while the shank
does not protrude and obstruct the
insertion of the downrod.
DO NOT
REMOVE
SETSCREW
COMPLETELY
Fan style may vary.
Note:
