Hunter Rosner - Canopy and Blade Assembly; Attaching Fan Blades

7
8
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Installing the Bulbs and Glass
Assembling the Light

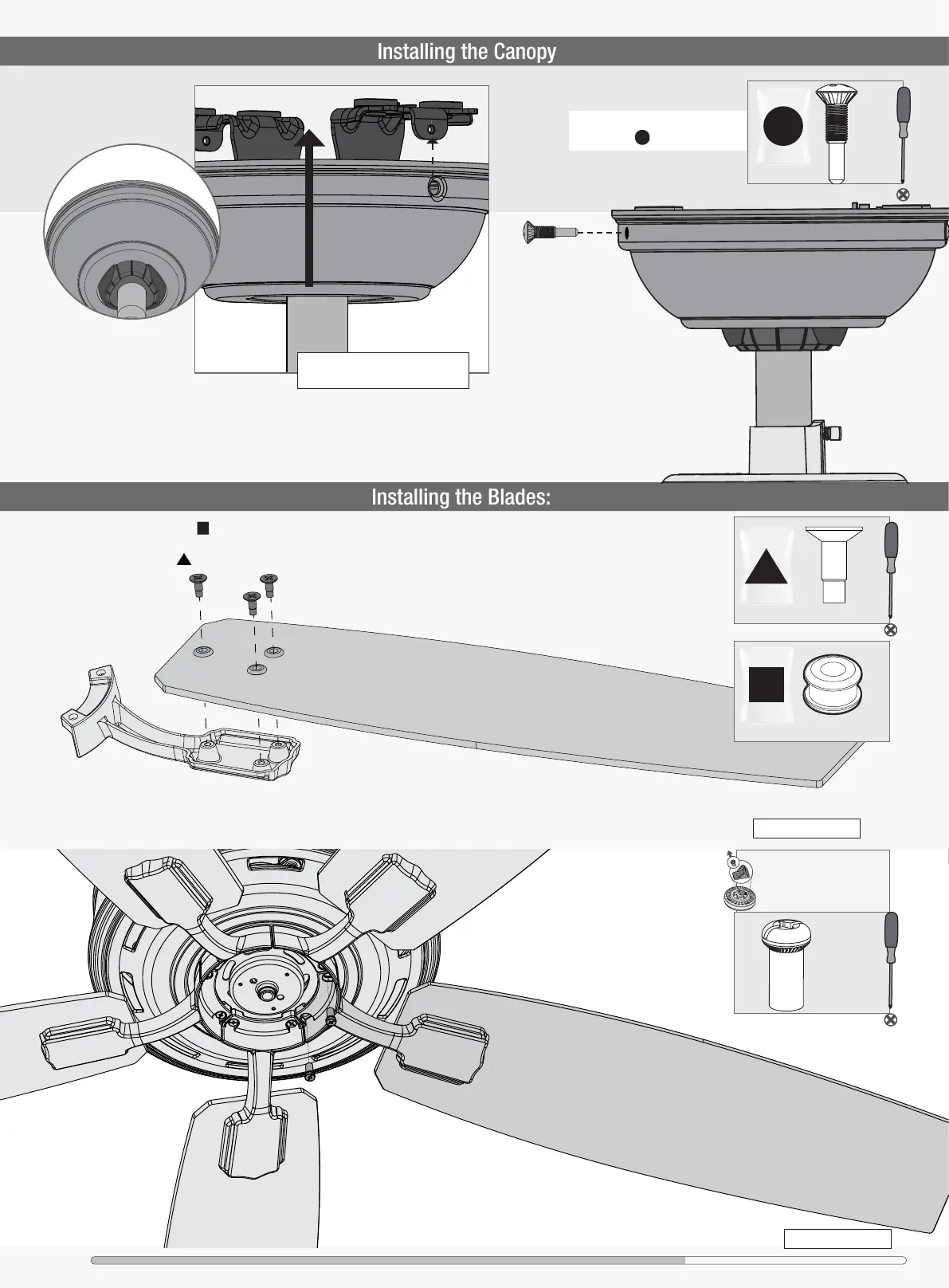

Installing the Canopy
x2
Lift the canopy into place so that
the screw holes are aligned.
Insert the two canopy screws
found in the
hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag
Canopy
Screw
Installing the Blades:
x15
x15
Insert grommets found in the hardware bag into the
holes in the blades, then secure each blade to a blade arm
with screws found in the hardware bag.
Repeat x5
bag
bag
x10
Lightly attach the blade arms to the motor with
the blade arm screws, then securely tighten
after both screws are attached.
Repeat x5
Blade Screw
Grommet
Blade Arm Screw
Remember the screws that
you kept after removing the
shipping blocks? You need
them here.
