Hunter Roswell - Final Assembly Steps; Blade Assembly Securing; Cage Installation

7
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control Troubleshooting
Installing the Cage
Guide
Hole

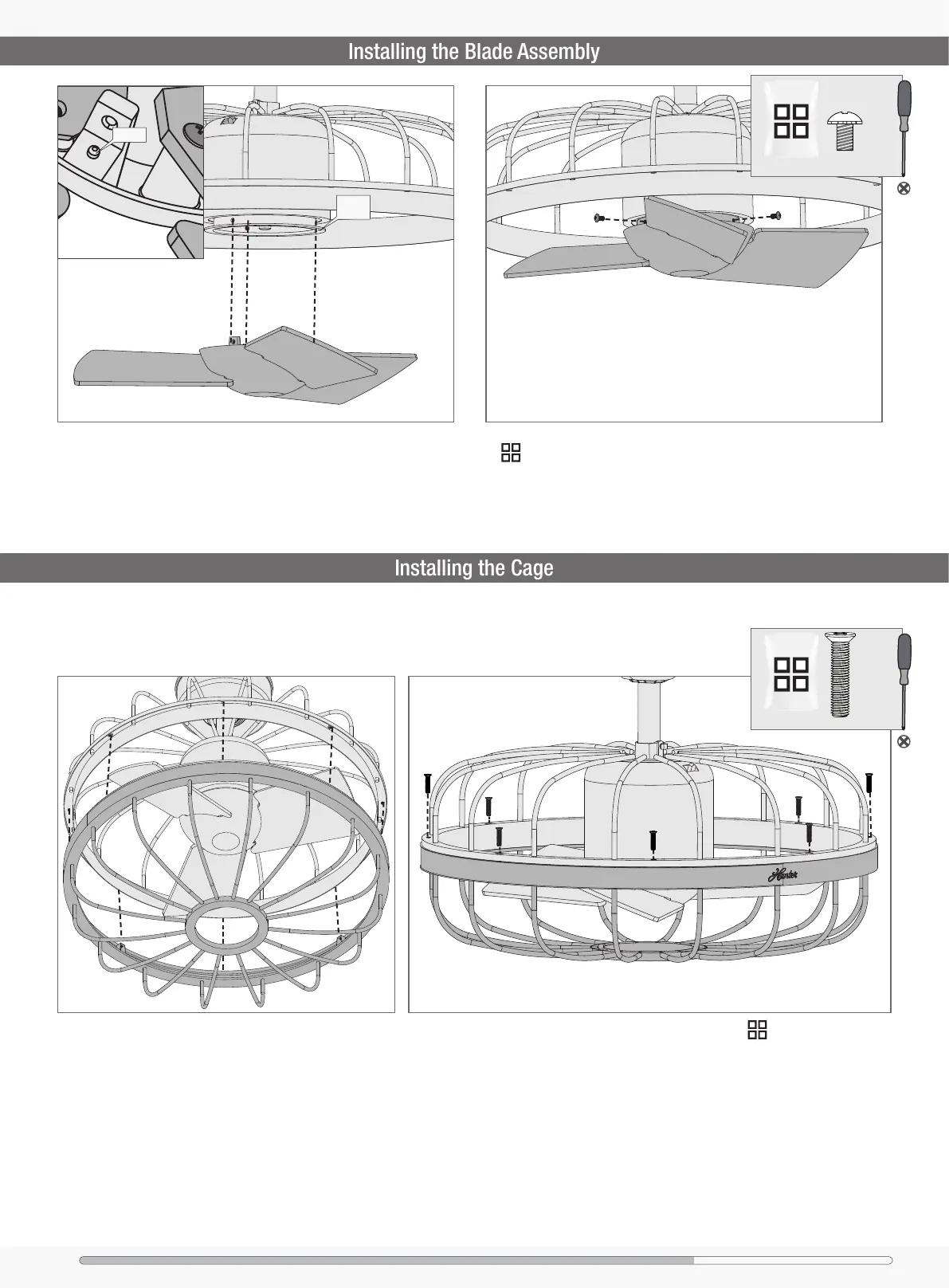

Installing the Blade Assembly
3 of 3
8 of 8
Assembly Screw
Cage Screw
bag
bag
Lift the blade assembly and align its screw holes with the screw holes in the motor
housing. The tabs in the blade assembly will t inside the guide holes of the motor
housing.
Lift the cage and align its screw holes with the screw holes in the
top cage.
Secure the blade assembly to the motor housing using the assembly screws, found in
the hardware bag.
Secure the cage to the upper cage using the cage screws, found in the
hardware bag.
Tab
