Hunter Sona User Manual

41951-01 12/01/2013
16
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
Red
Red
White
Black
Black
White
White
Bare Copper
Ground
D16
Night Light
Night Light
Switch 1 (AC In)
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
I
D18
I
D19
D20
J

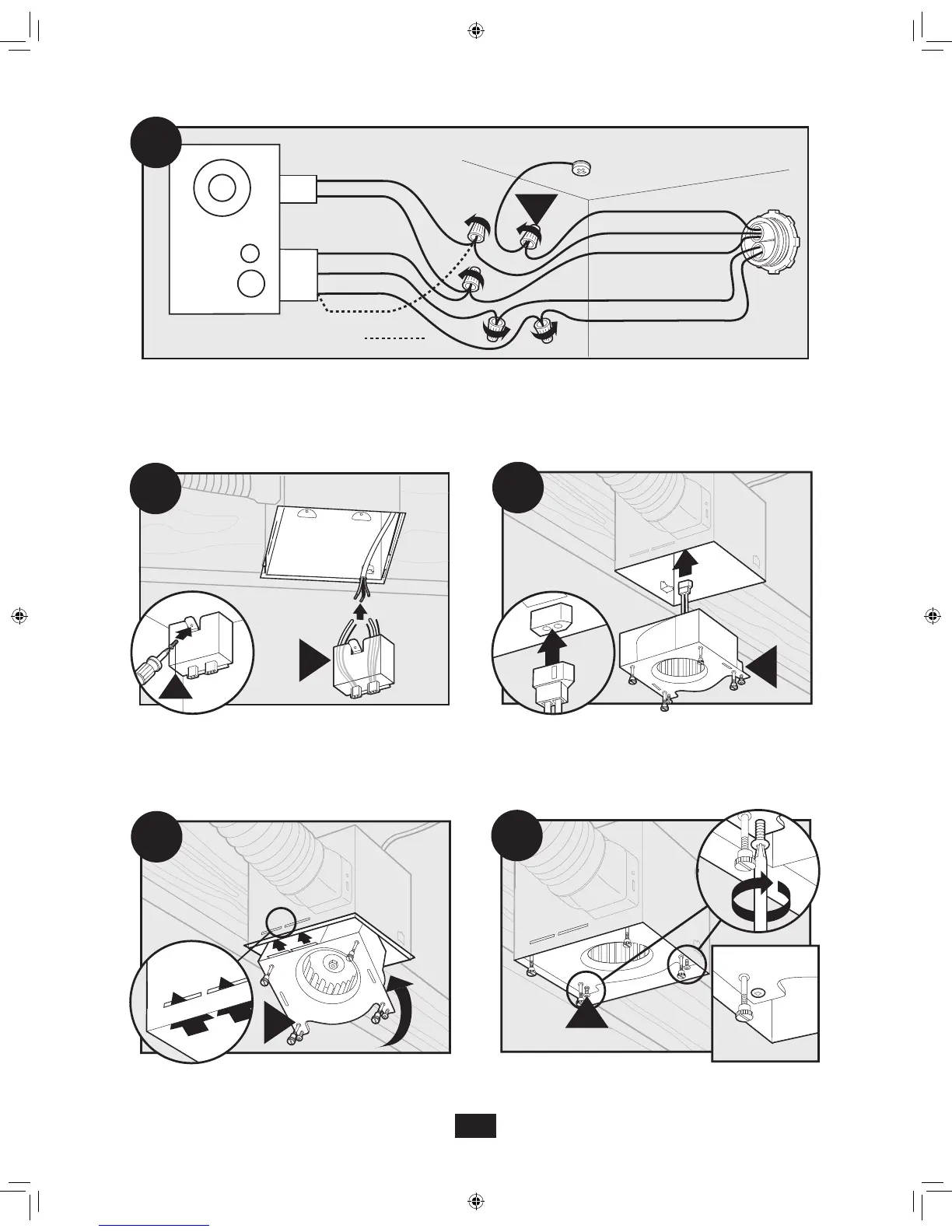

Connect wires as shown.
Reinstall the motor by inserting the tabs and pushing up into
position. Make sure the wires are not pinched between the
motor and the housing.
Connect wiring harness. DO NOT ALLOW THE MOTOR TO
HANG FROM THE WIRING HARNESS.
Secure the motor by tightening the 2 screws.
H
D17
G
Install the wiring cover plate. Make sure all wiring
connections are inside the box or under
the wiring cover plate.
