Hunter Sona - Attaching the Grille - Fixture and Dome Installation; Strain Relief Bracket and Fixture Alignment; Thumbscrew Attachment and Bulb Installation; Glass Dome Alignment and Locking

41951-01 12/01/2013
18

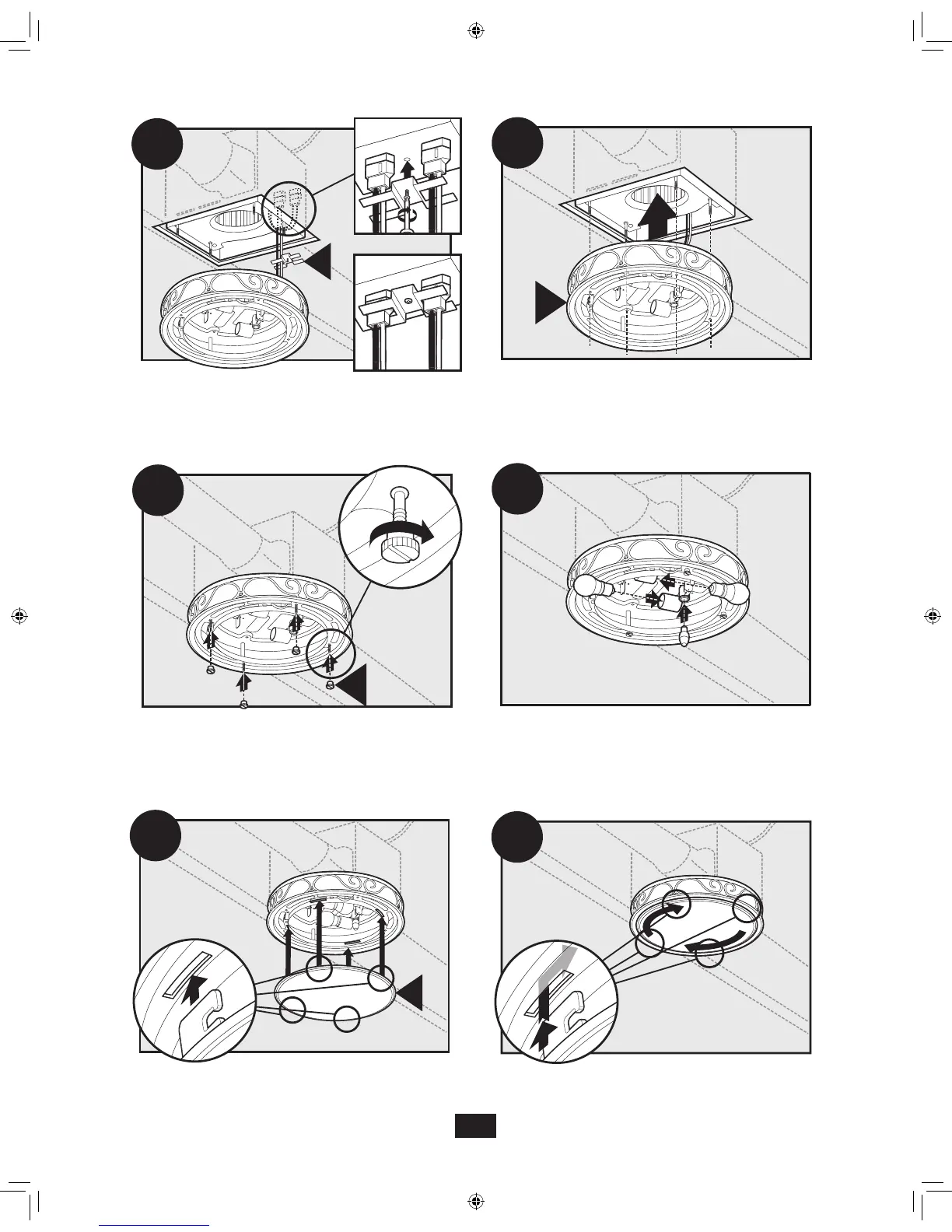

Position the strain relief bracket between the plugs as
shown, and screw into place.
E3
K
Align tabs on glass dome assembly with slots on light fixture
and insert tabs into slots.
Install 2 Max 60 watt A-15 bulbs (Not Included).
E8
Turn glass dome assembly as shown until it
locks into position.
E6
O
E7
Attach thumbscrews.
WARNING: To reduce the risk of electrical shock,
all 4 thumbscrews MUST be properly installed.
N
E5
Align posts A, B, C and D (stamped into motor housing)
with posts A, B, C and D (stamped into light fixture).
Slide light fixture over posts.
M
E4
