WARNING: Failure to complete the following steps could cause the fan
to fall.
Note: It is recommended you use a magnetic tip screwdriver for the
following steps.
6-1.Rotatethehangerballsothetabinthecanopyissecureinthe
hanger ball groove. Note: Your fan may have multiple tabs and
grooves that must be aligned.
6-2. Swing the fan up to align the canopy screw holes with the
mounting holes on the ceiling plate.
WARNING: e slots in the canopy must remain engaged while
swinging the canopy for alignment.
6-3. Holdingthecanopyupwiththescrewholesaligned,partially
install two canopy screws into the holes opposite the ceiling plate
tabs.
6-4. Partially install a canopy screw between the slots in the canopy.
When all the holes are properly aligned, securely tighten all three
canopy screws.
6-5.Verifythatthetabsinthecanopyarestillinthegroovesofthe
hanger ball.
6-6.Alignthetabsonthetrimringoppositethegroovesinthehanger
ball.Usingbothhands,pushthecanopytrimringuptothetopof
the canopy. e canopy trim ring will snap and lock into place.
Note: Should you need to remove the trim ring, press firmly on
opposite sides of the trim ring directly above the groove in the
hanger ball. e tabs will flex out releasing the canopy trim ring.

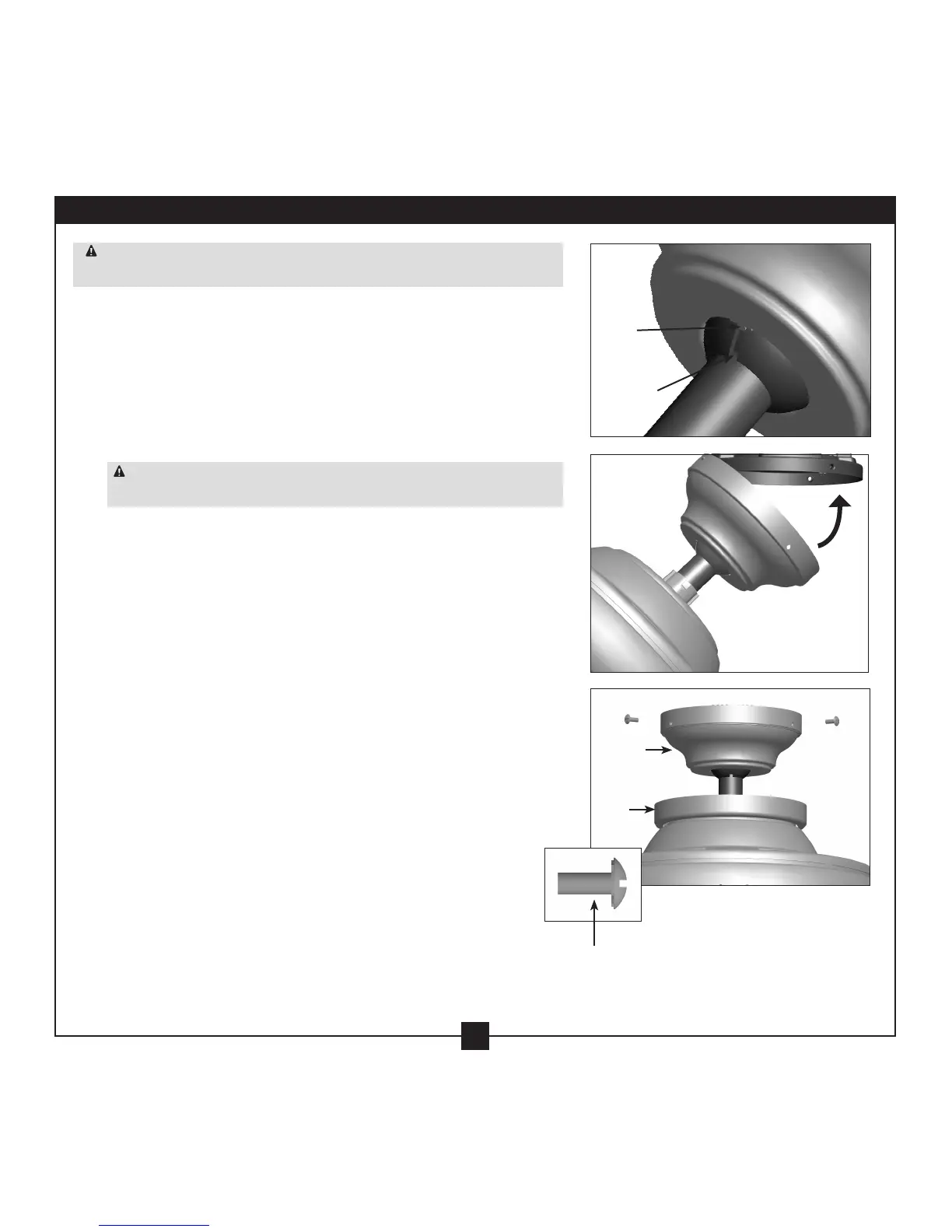

Step 6-1
Step 6-2
Groove
Tab
Step 6-3
Canopy Screw
Canopy
Trim
Ring
Canopy
6 • Installing the Canopy and Canopy Trim Ring
