X2.25
M5 (STOP SPINDLE)
M205 (CLEAR SPINDLE SYNC)
G55 G152 W0. (POSITION SUB SPINDLE FOR SECOND WORK OFFSET)
G28 U0. (POSITION TOOL AT HOME IN X POSITION FOR TOOL CHANGE)
G28 W0. (POSITION TOOL AT HOME IN Z POSITION FOR TOOL CHANGE)

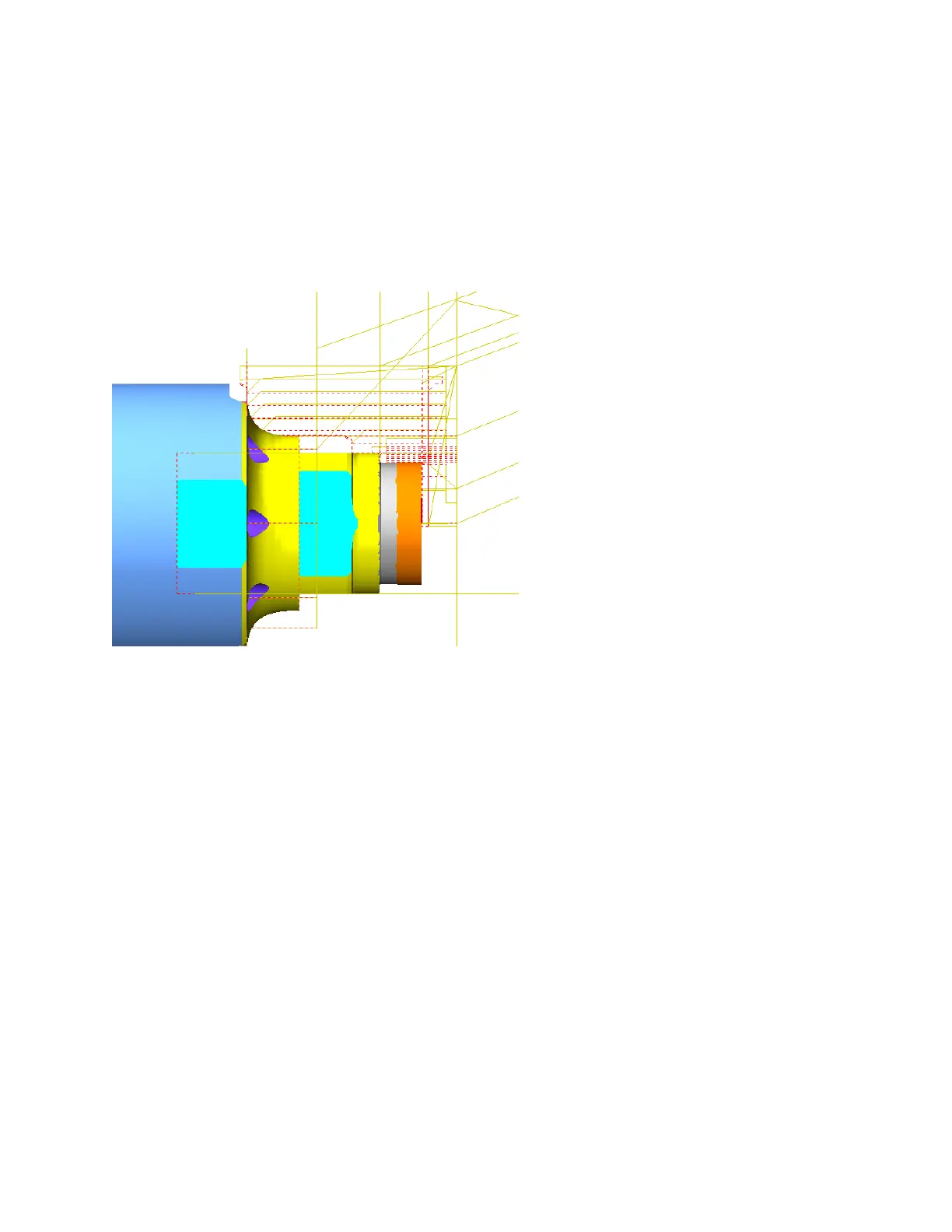

The main spindle graphics do not show the part being
pulled.
A Hurco MYS machine (equipped with a sub spindle) can
turn between spindles. The example above should be used up
until the move to position the part for the cutoff, at that point
you could insert turning, milling, drilling, or any operation
desired instead of cutting the part off.
The machine will need to perform the spindle sync and the
positioning of the bar inside of the program, so all features will
need to be programmed and ran at that time.
