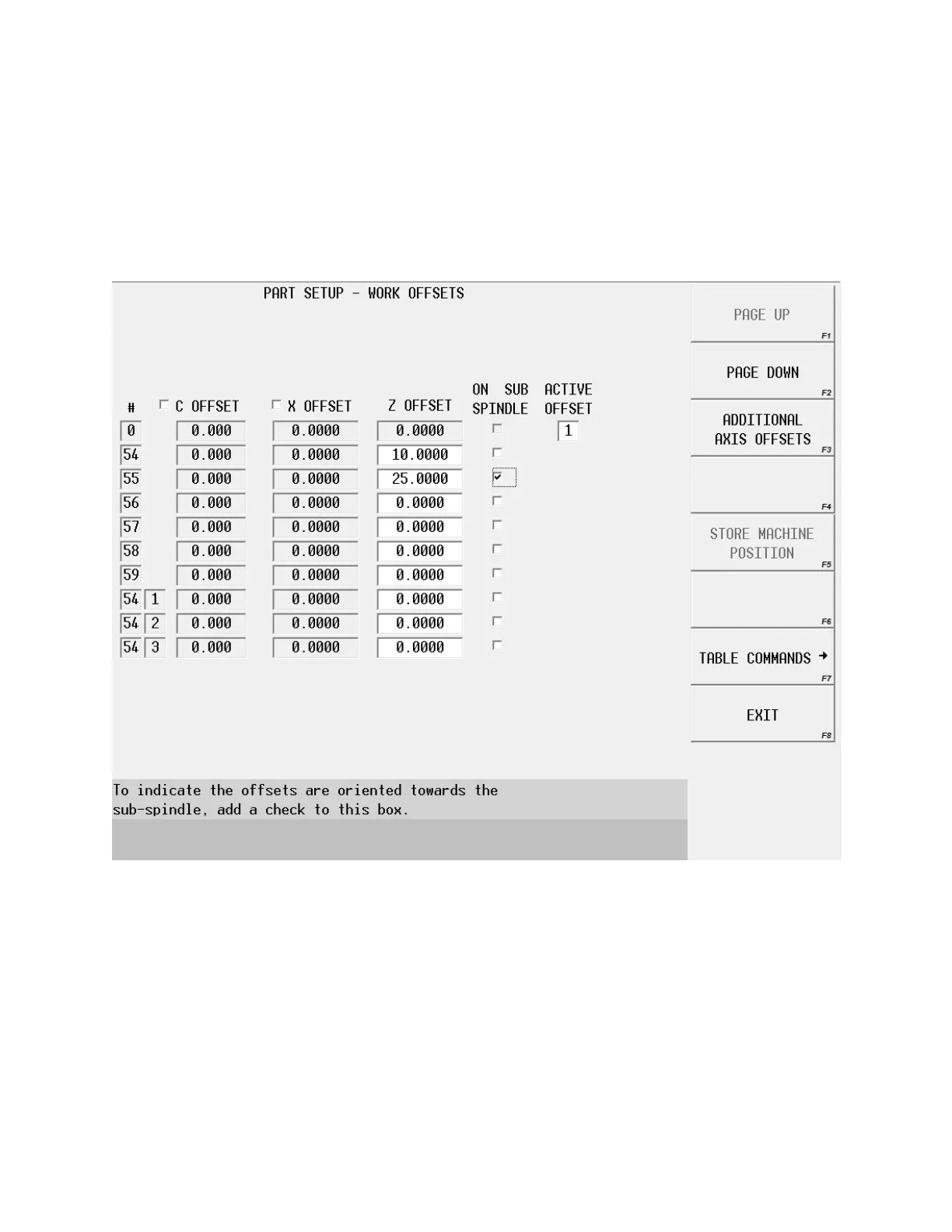

On this page there needs to be an offset with the sub
spindle check box selected.
This will allow the sub spindle to rotate instead of the mail spindle.
From here an offset for the “W” axis can be set on the
main spindle offset and sub spindle
The offset should be set with the sub spindle on the face of the part. This will
allow the “W” axis to be positioned to the face of the part, and then feed onto the
part an exact distance.
