HUSABERG FE 650 e - Page 14

CONTROLS
14
5
5
Fig. 7A
LOW HIGH
Fig.
5I
Fig.
5K
Fig.
5L

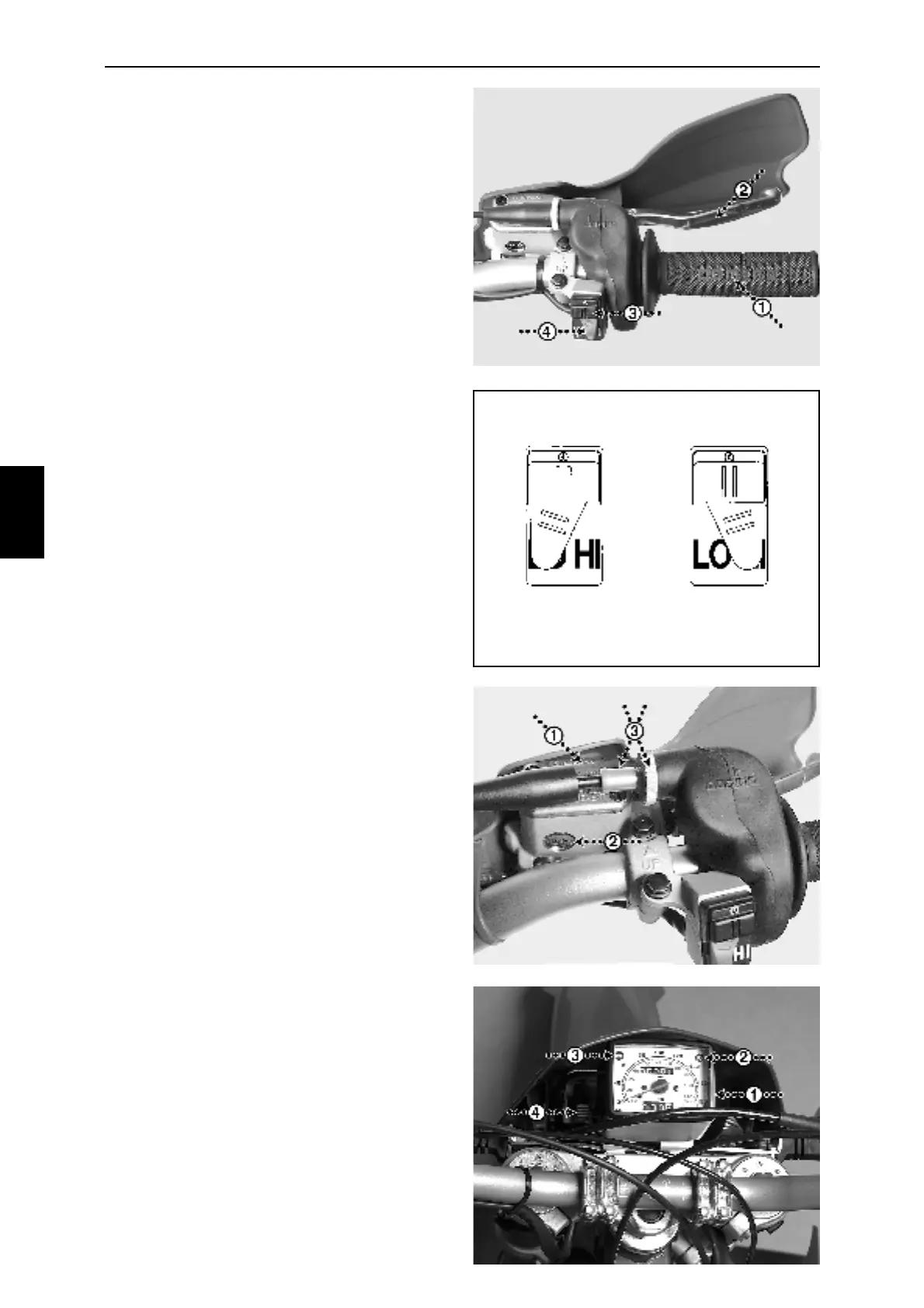

Fig 5I 1- Twistgrip
2- Front brake lever
3- Electrical starter button
(if it is an electrical starter model,
otherwise the button having no
function)
4- Dual ignition curve switch
Fig. 5L 1- Speedometer
(If included in equipment)
2- Highbeam indicator lamp
3- Turn signal indicator lamp
4- Trip meter knob
Fig. 5K 1- Reservoir front brake fluid
2- Brake fluid inspection window
3- Throttle wire adjustment
Fig 5J Low- Normal conditions
High- Starts and heavy conditions
Fig.
5J
