DISMOUNTING AND MOUNTING THE ENGINE
B
2

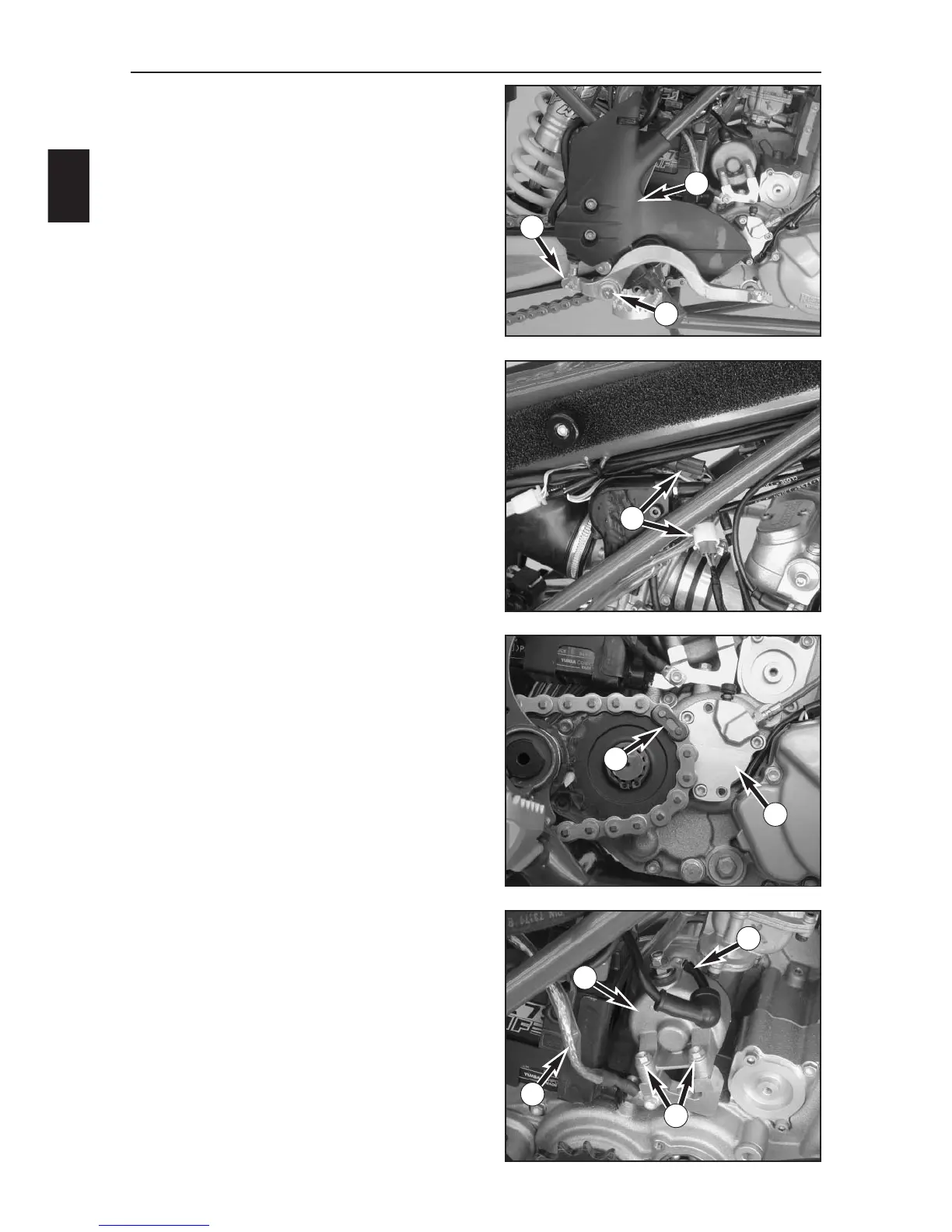

–Dismount the right frame protector (1).
– Unscrew the bearing bolt (2) on the foot brake lever
and tilt the foot brake lever aside.
– Remove the retaining clip from the push rod holder (3),
pull out the bolt and the foot brake lever
–Disconnect the generator and pickup connector (4)
and remove the cable clips from the clutch line.
– Open the chain joint (5), separate the chain and
remove.
– Unscrew the clutch slave cylinder (6) and let it hang to
the side.
–Dismount the positive starter cable (7) from the starter
engine.
– Unscrew the engine ground connection (8).
– Remove both bolts (9) and pull the starter engine (10)
out of the engine case.
